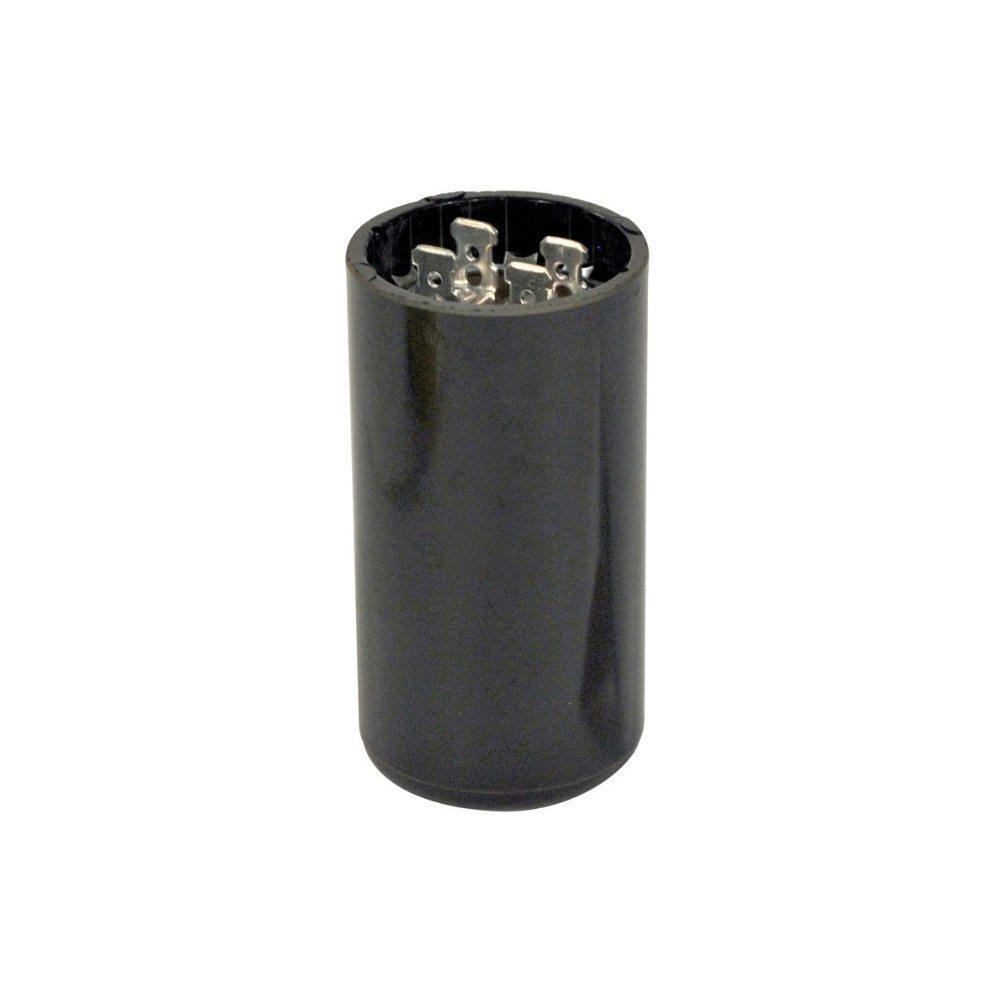

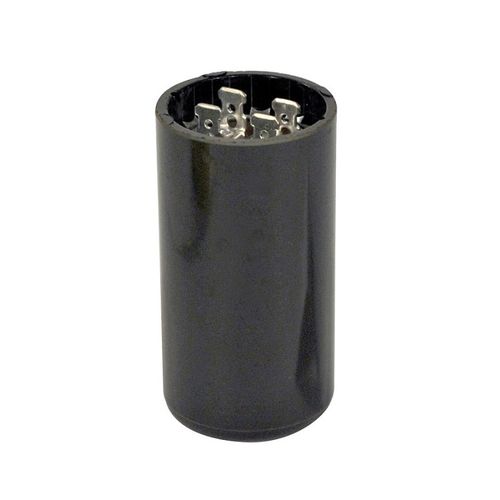

Mars 11160 Motor Start Capacitor 330 Volt (1 Count) Replaces 11160

Product Description

Mars 11160 is an OEM replacement motor start capacitor for single-phase motors, rated 330 volts and nominally 64-77 MFD (listed 77 microfarad). It features a round form factor, copper construction, and is sold as a single unit. The capacitor provides an initial torque boost to help motors and compressors start and is suitable for 50/60 Hz systems. Physical dimensions are approximately 3.38 inches tall by 1.75 inches in diameter.

• Capacitance 64-77 MFD (listed 77 microfarad); rated 330 volts operating/maximum
• Round shape with copper construction; sold as a single unit
• Designed to provide starting boost for motors and compressors; suitable for 50/60 Hz

Product Highlights

Motor start capacitor, 64-77 MFD, 330 V, round copper construction, replaces Mars 11160

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 11160
• Country of Origin: United States

Technical Specifications

• Brand: MARS
• Manufacturer Part Number: 11160
• Capacitance: 64-77 MFD (listed 77 µF)
• Voltage Rating: 330 Volts AC
• Frequency: 50/60 Hz
• Shape: Round
• Material: Copper (likely internal foil/lead material; see notes)
• Case Material: Phenolic Bakelite (hermetically sealed)
• Temperature Range: -40 to 65 °C
• Starts Per Hour: 30
• Terminals: 2
• Dimensions: Height 3.38 in; Diameter 1.75 in
• UL Listing: UL/ULc
• Unit Count: 1
• Application: Motor start capacitor for single-phase motors
• Country of Origin: United States
