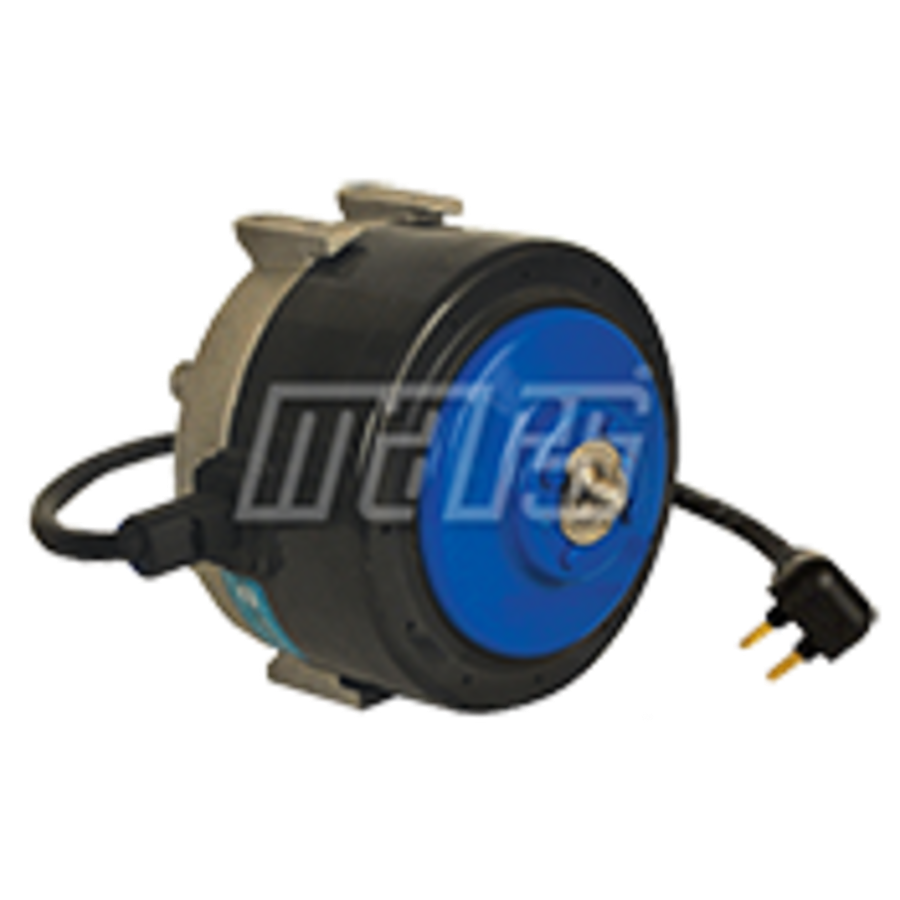

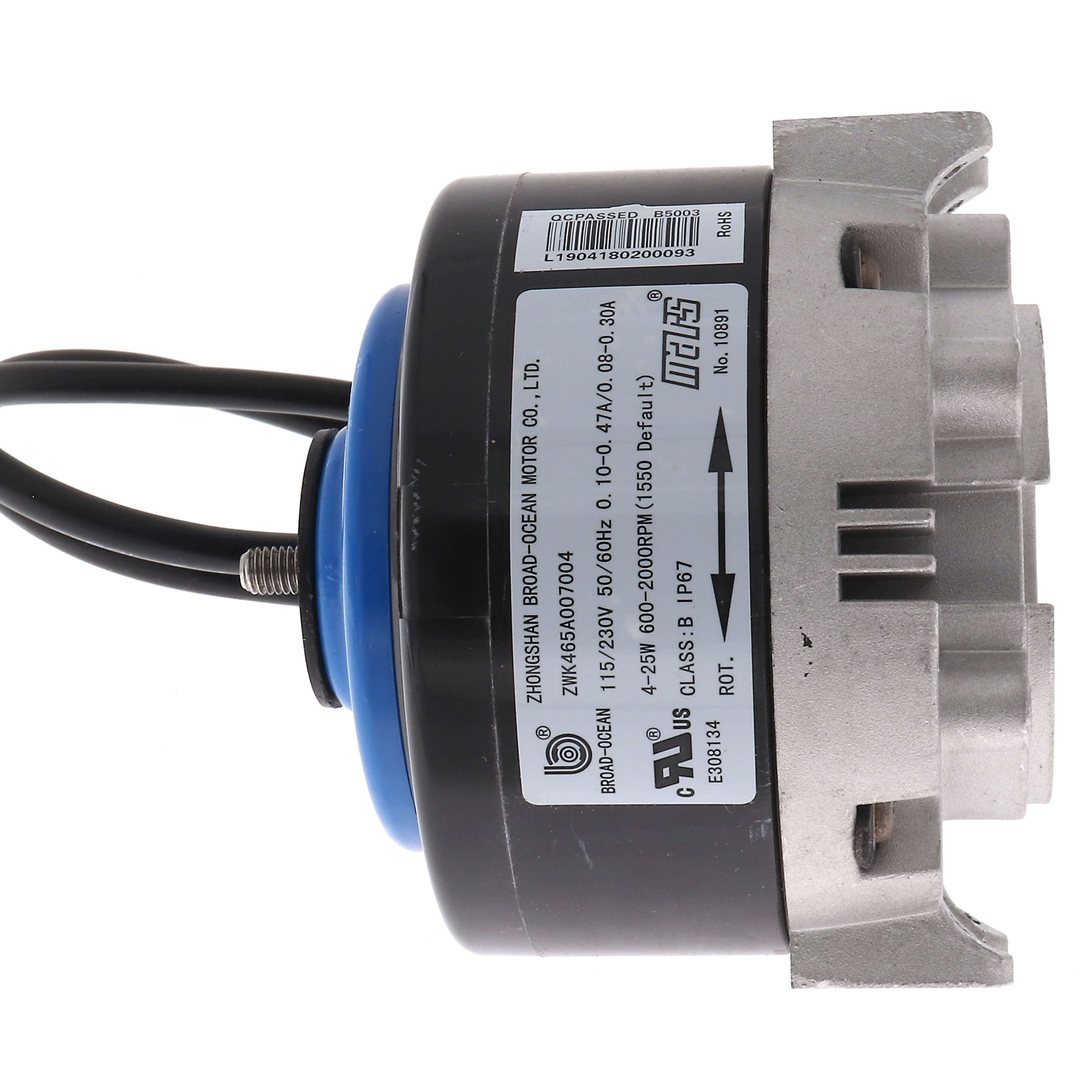

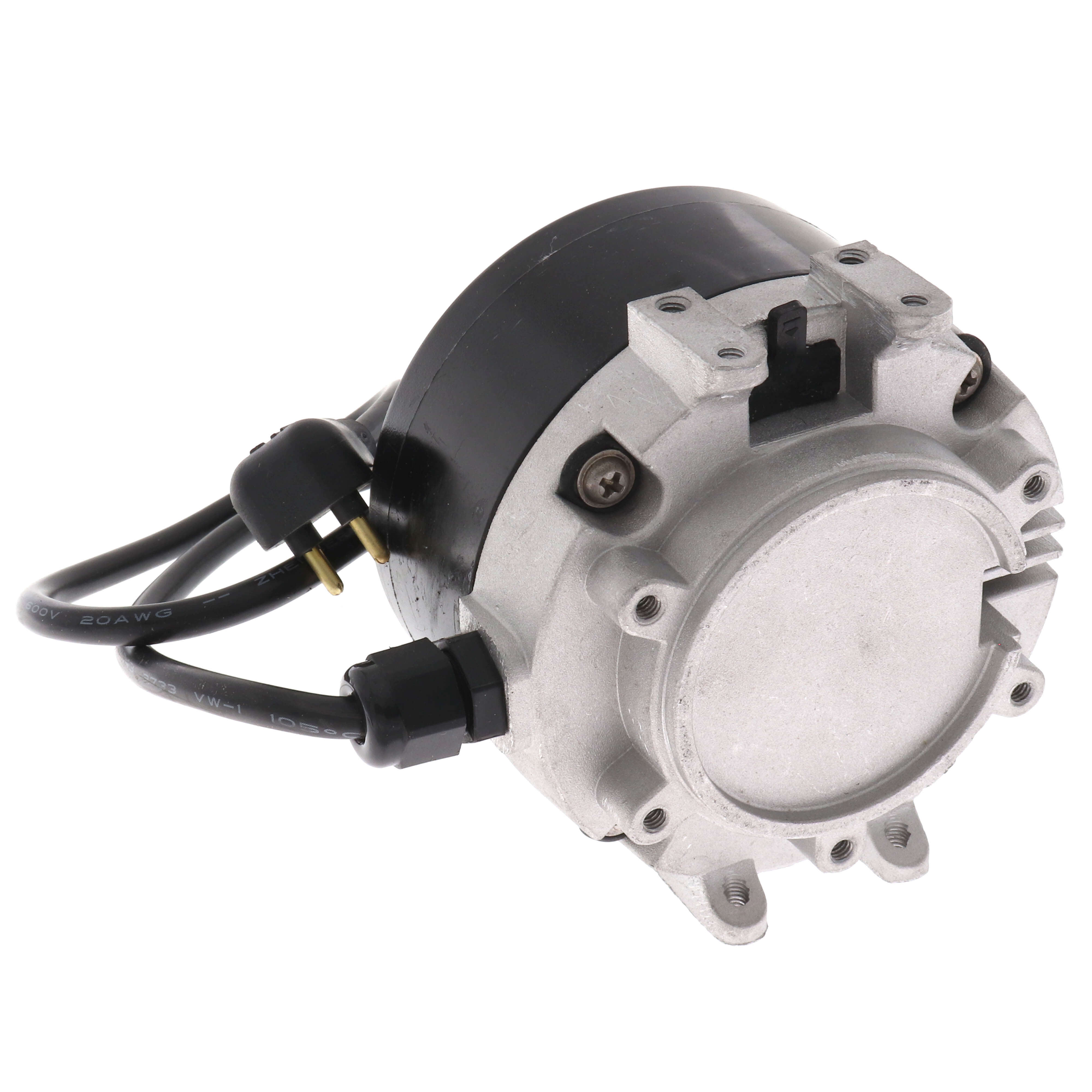

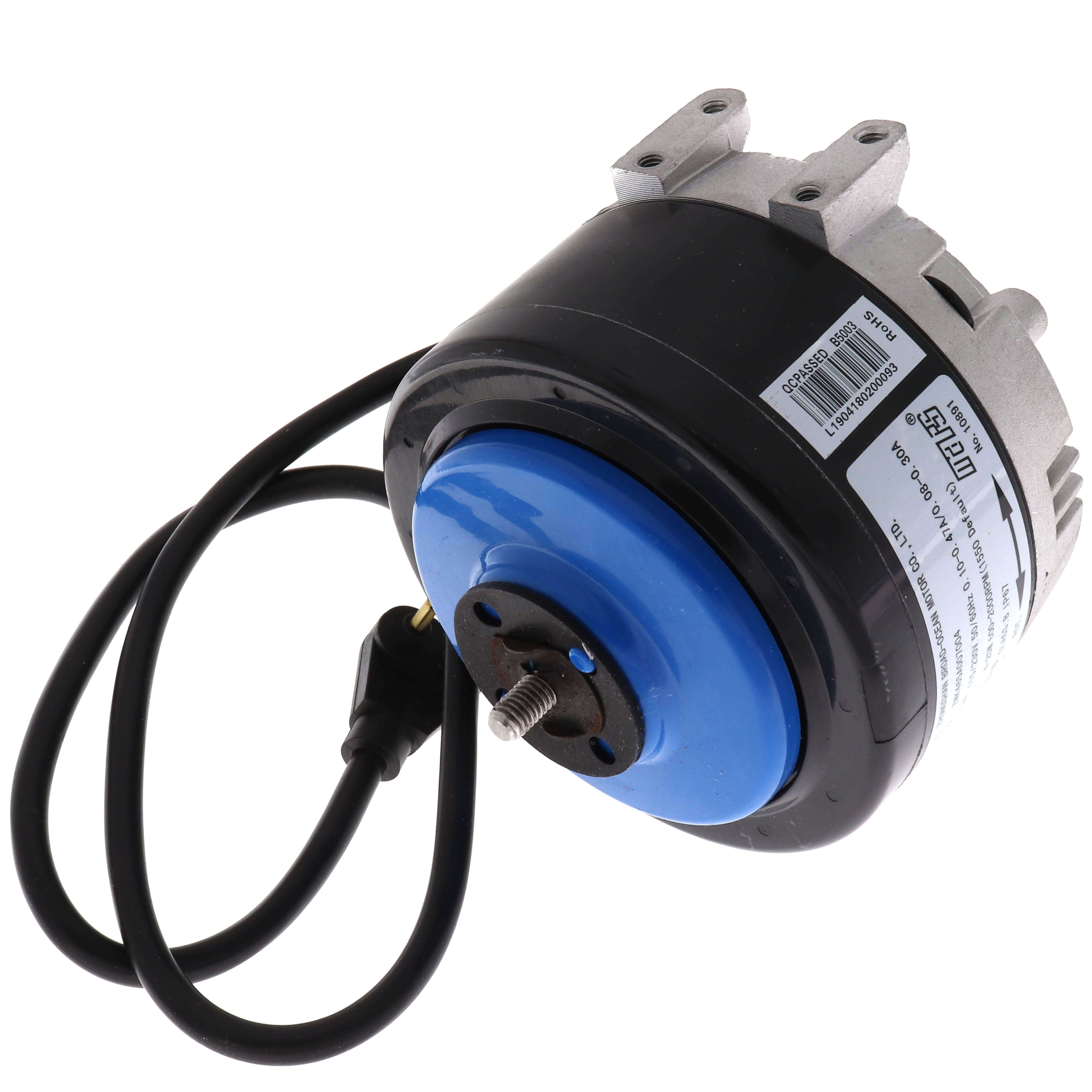

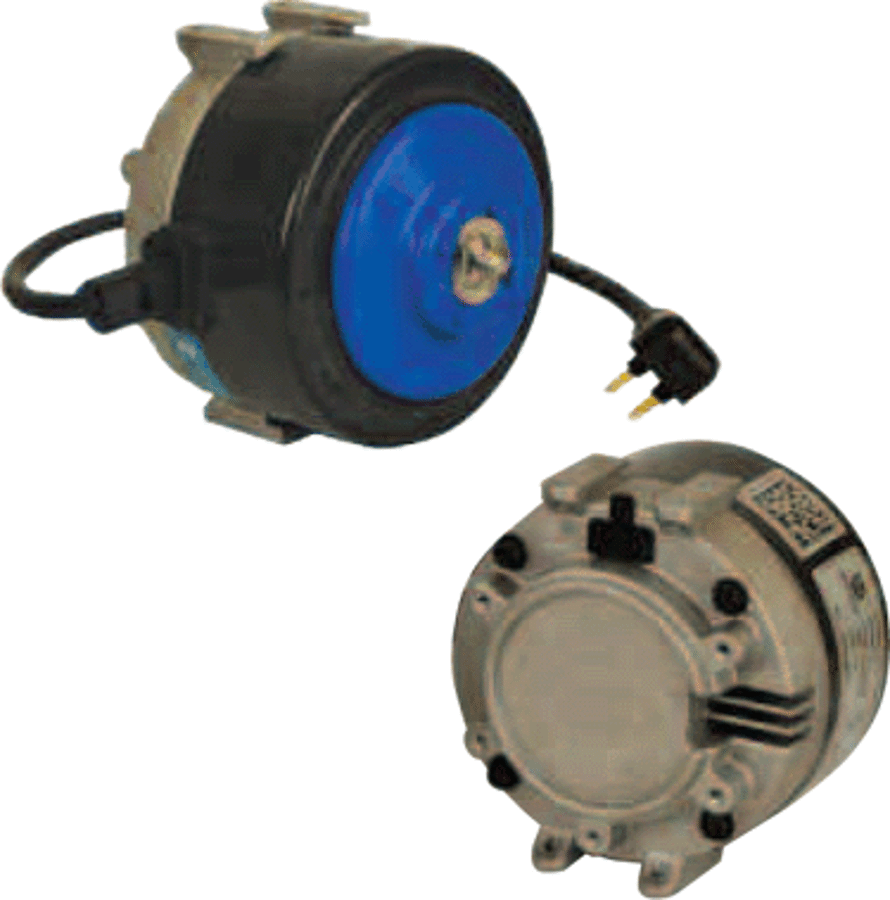

MARS 10891 Refrigeration Fan Motor 4-24W 115/230V ECM TEAO CWLE

Product Description

The MARS refrigeration fan motor, MPN 10891, is designed for reliable cooling performance in commercial settings. This ECM motor is a drop-in replacement suitable for most OEM, ECM, PSC, and standard shaded pole refrigeration evaporator and condenser fan motors. It operates effectively in reach-in cooler and freezer applications. The microprocessor adjusts the power output to match fan load, ensuring optimal airflow and energy efficiency.

• Self-adjusting watt range from four to twenty-five watts
• Automatic voltage selection between one hundred fifteen and two hundred thirty volts
• Versatile programming options for fan speed and rotation direction

Product Highlights

This motor supports an operating temperature range from negative forty degrees to positive one hundred thirty-one degrees Fahrenheit. It features a rotation configuration of clockwise with counter-clockwise lead ends and is highly efficient with an ECM technology rating of sixty-eight percent.

Product Information

Standard Information

• Brand: MARS
• Part Number: 10891

Technical Specifications

• Type: Refrigeration Fan
• Voltage: 115/230V
• Diameter: 1/4
• Rotation: CWLE
• Sub-Type: ECM
• Enclosure: TEAO
• Application: HVAC
• Wattage Range: 4-25
