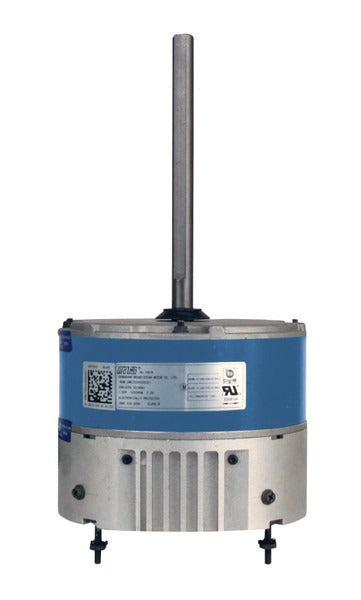

Mars 10875 Azure Ecm condenser fan motor 1/8-1/3 Hp (5.5 in)

Product Description

Mars 10875 is an Azure Ecm condenser fan motor rated 1/8–1/3 Hp for 208–230 V single-phase condenser applications. The 5.5 in diameter, single-speed motor operates at 1075 RPM and uses an internal microprocessor to adjust power to load; it does not require an external capacitor. Rotation is field-adjustable (CW/CCW) via the enclosed 115 V programming cable and the motor is designed for horizontal condenser mounting.

• ECM motor with internal microprocessor; no external capacitor required; single-speed at 1075 RPM.
• Electrical: 208–230 V, single-phase, 50/60 Hz; rated 1/8–1/3 Hp; field-adjustable CW/CCW rotation via enclosed 115 V programming cable.
• Mechanical: 5.5 in diameter (NEMA 48), belly band mount, ball bearings, electronic thermal protection, Class B insulation; operating range -20 to +55 C.

Product Highlights

Field-adjustable reversible ECM condenser fan motor, 208–230 V, 1/8–1/3 Hp, 5.5 in diameter, 1075 RPM, no capacitor required.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 10875
• Country of Origin: China
