Product Description

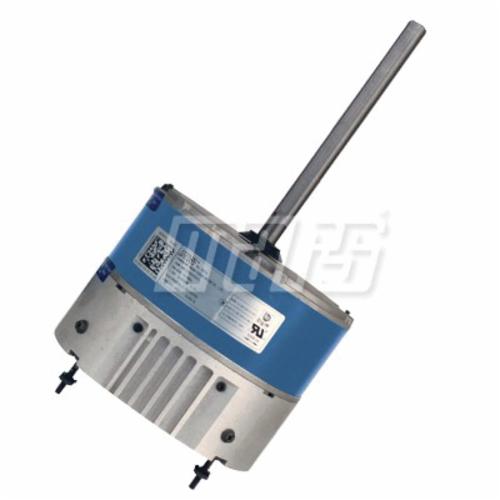

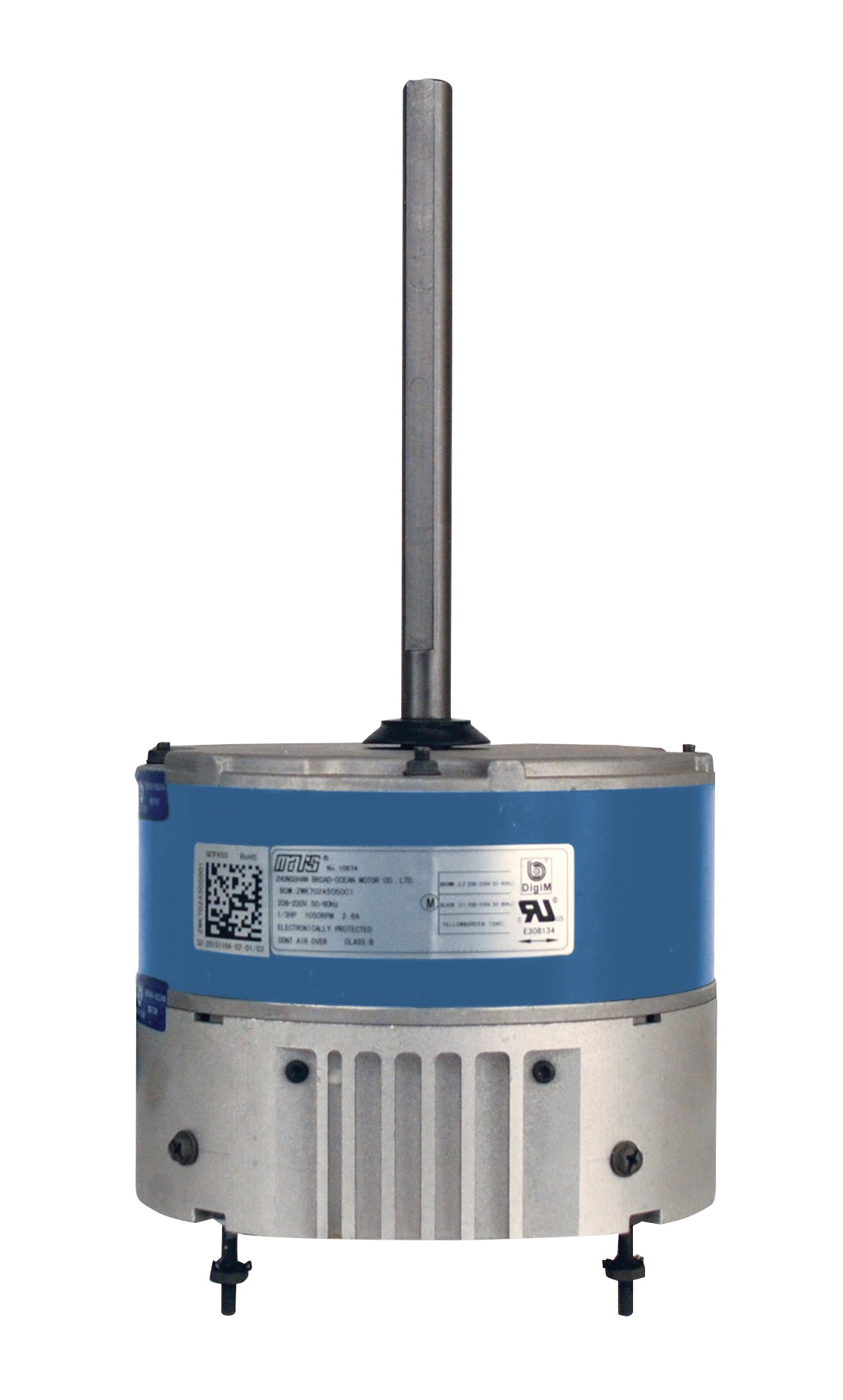

The Mars Azure® ECM Condenser Fan Motor, model 10874, is designed for reliable performance in HVAC applications. This fan motor operates at a horsepower ranging from one-eighth to one-third and is suitable for use with 208 to 230-volt systems.
- Multi-horsepower capability
- Reversible rotation for flexible installation
- No capacitor required for easy setup
Product Highlights
The Mars Azure® ECM motor simplifies installation by connecting in the same manner as a PSC motor, eliminating the need for external capacitors.
Product Information
Standard Information
Technical Specifications
-
Horsepower: 1/8 - 1/3 HP
-
Voltage: 208/230 Volts
-
Performance RPM: 825/1075 RPM
-
Electrical Phase: 1
-
Frequency: 50/60 Hz
-
Mounting Type: Stud
-
Frame Size: 48
-
Maximum Operating Temperature: 131°F
-
Minimum Operating Temperature: -4°F
