Mars 10869 Azure® ECM Condenser Fan Motor - 3/4-1 HP - 115/230 Volt

Product Description

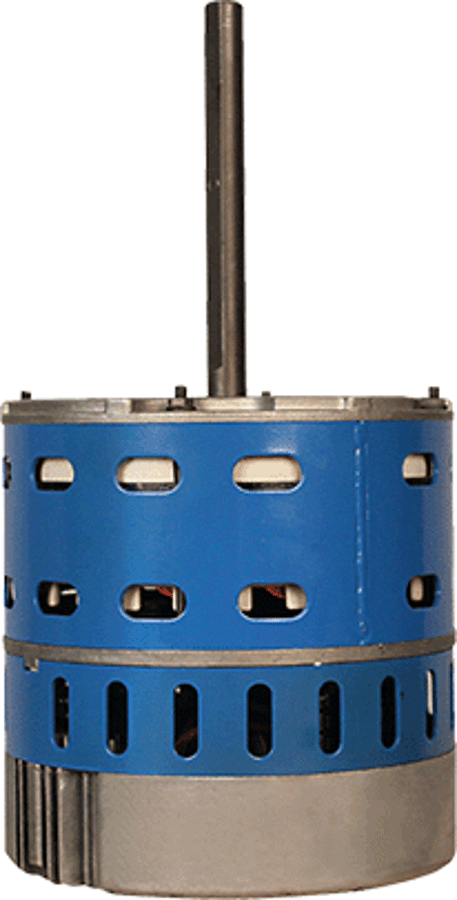

The Mars Azure® ECM Condenser Fan Motor, MPN 10869, is designed for HVAC applications. This motor can replace various models due to its versatile design. It connects easily, similar to a PSC motor, eliminating the need for a capacitor. The product includes a QwikSwap® adapter for simple and quick installation.

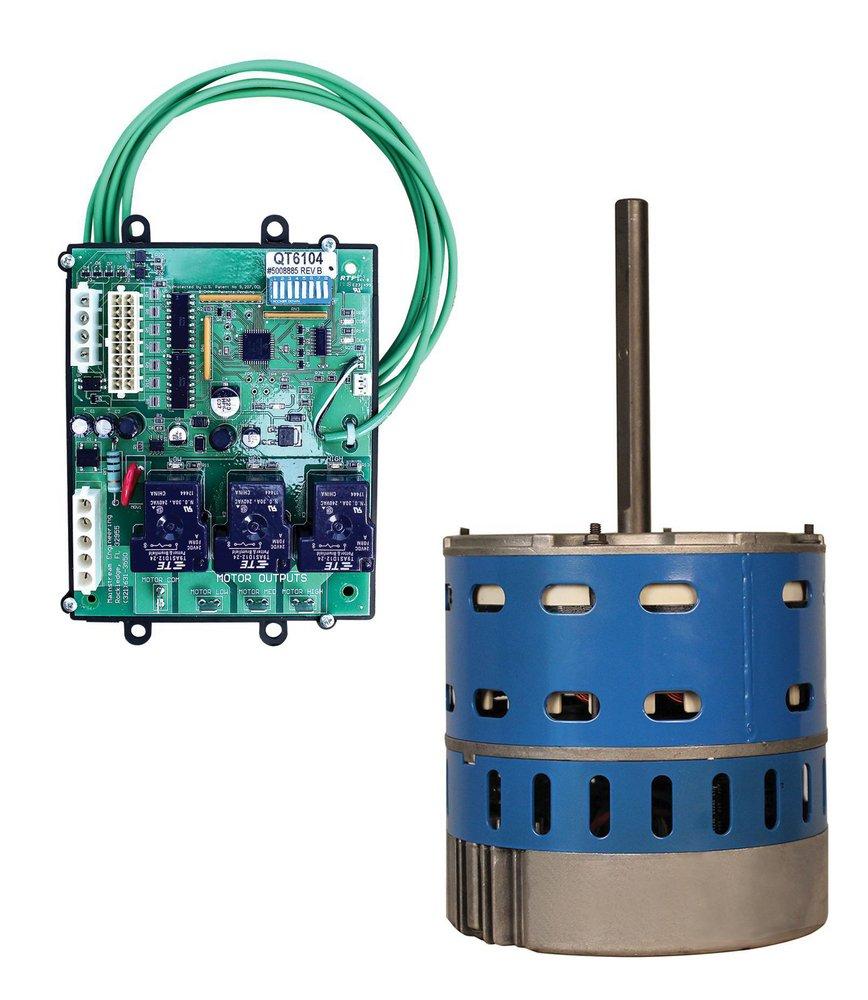

• Includes QwikSwap® Adapter for fast installation.
• Supports multiple horsepower configurations from three-quarters to one.
• Reversible rotation allows for flexible mounting options.

Product Highlights

Efficient and reliable, the Mars Azure® ECM Condenser Fan Motor is engineered for ease of use and performance. Its adaptability makes it a suitable replacement for many applications.

Product Information

Standard Information

• Type: Fan Motor
• Product Line: Azure

Technical Specifications

• Performance RPM: 1075 RPM
• Electrical Data Voltage: 115/230 Volts
• Electrical Data Phase: 1
• Electrical Data Frequency: 50/60 Hz
• Horsepower: 3/4-1
• Maximum Operating Temperature: 131 F
• Minimum Operating Temperature: -4 F
• Mount Type: Belly Band
• Certifications: UL Listed
