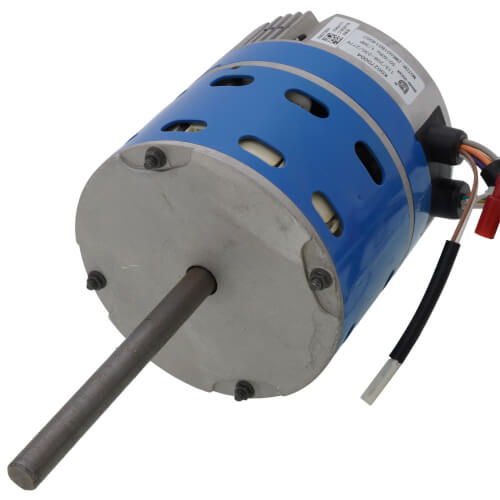

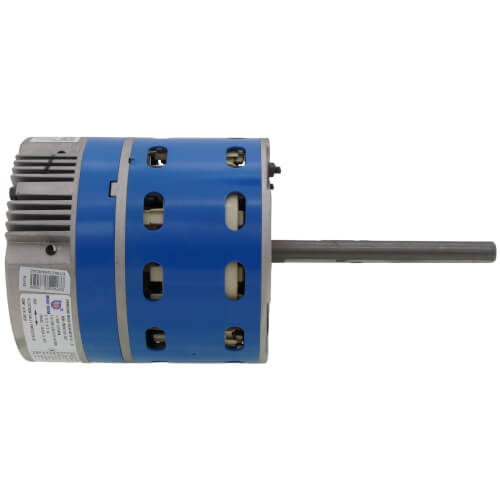

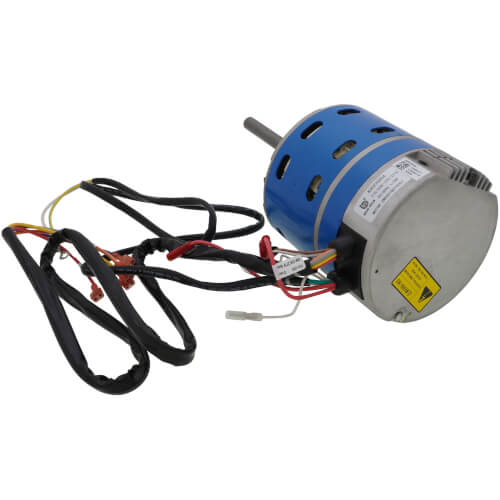

MARS 10867 42FR Azure Digi-Motor 1/8 - 1/3 HP 115/230/277V 1075 RPM

Product Description

The MARS 10867 42FR Azure Digi-Motor is a variable speed direct drive blower motor designed for multiple applications. It serves as a replacement for both standard PSC and Genteq X-13 motors.

• Auto sizing learn mode for easier installation.
• Self-programming speed taps with adjustable torque values.
• Optional handheld programmer for fine-tuning motor speed.

Product Highlights

This motor features an auto sizing mode that runs for approximately two minutes and measures the static pressure in your system. After the measurement, it automatically adjusts torque values for optimal performance.

Product Information

Standard Information

• Brand: MARS
• MPN: 10867

Technical Specifications

• RPM: 1075
• Frame: 42
• Mount: Belly Band
• Speeds: 5
• Voltage: 115/230/277V
• Bearings: Ball
• Rotation: Reversible
• Horse Power: 1/8 to 1/3 HP
• Enclosure Type: Drip Proof
• Shipping Depth: 14.7 inches
• Shipping Width: 8.5 inches
• Shipping Height: 6.9 inches
• Weight: 8.8 lbs
