Product Description

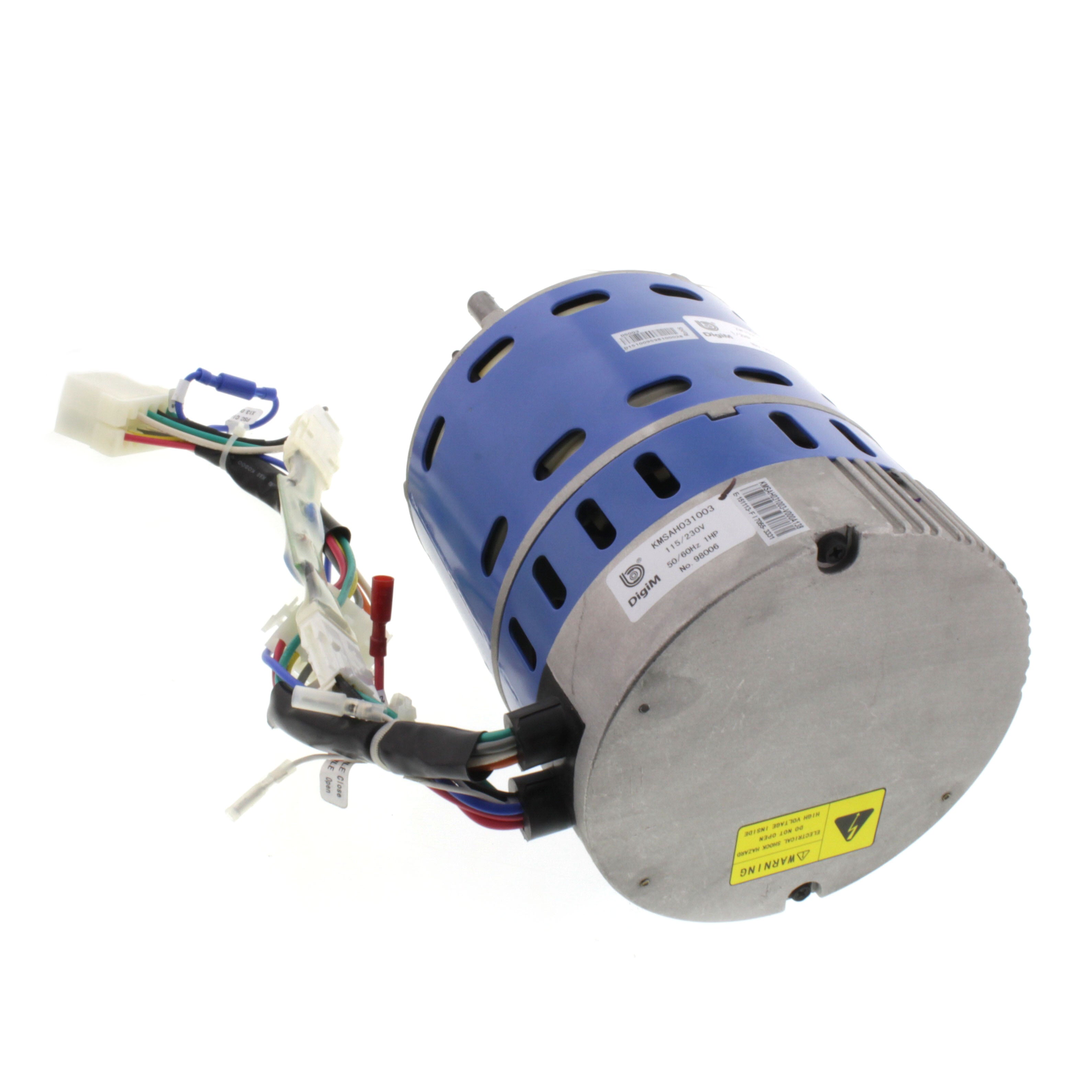

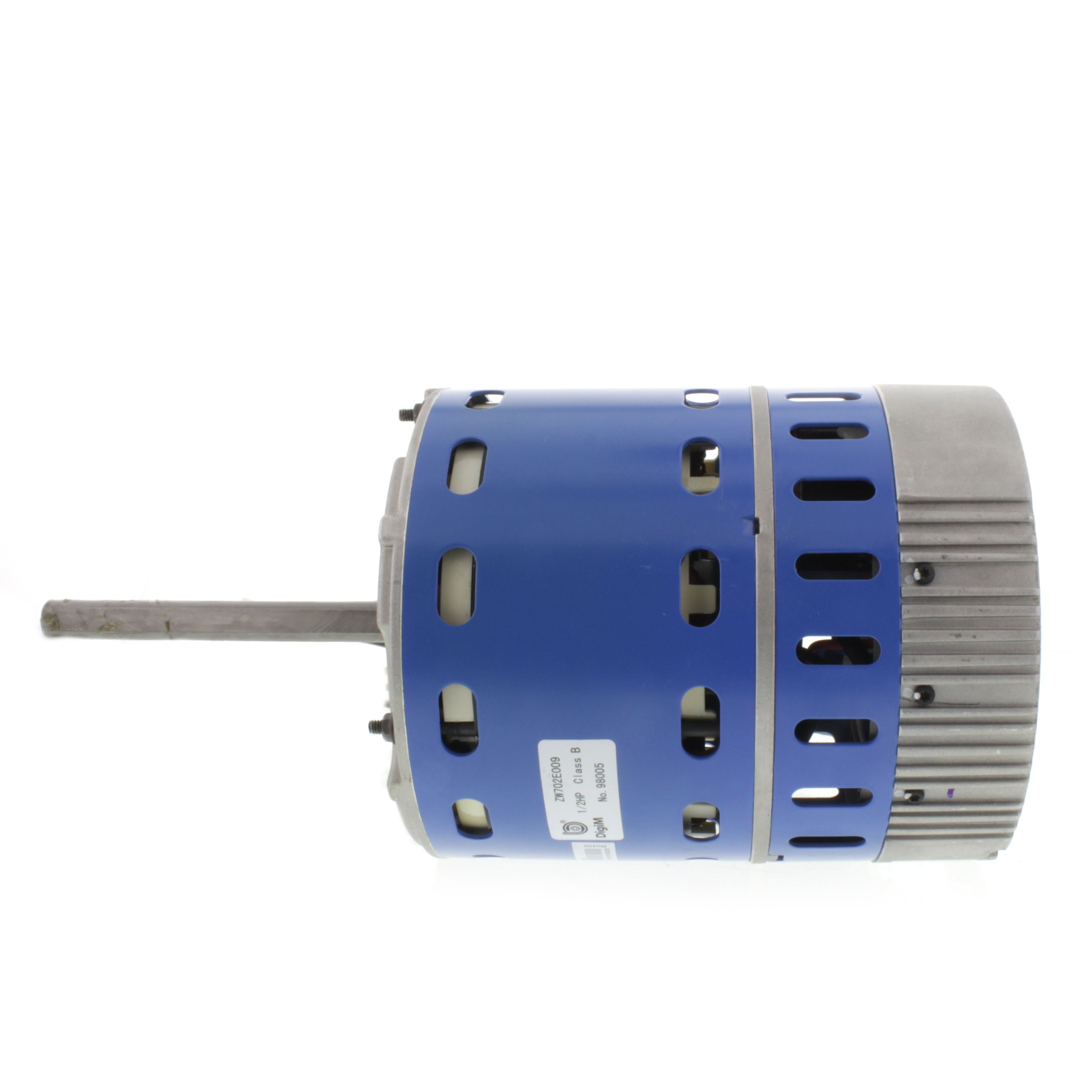

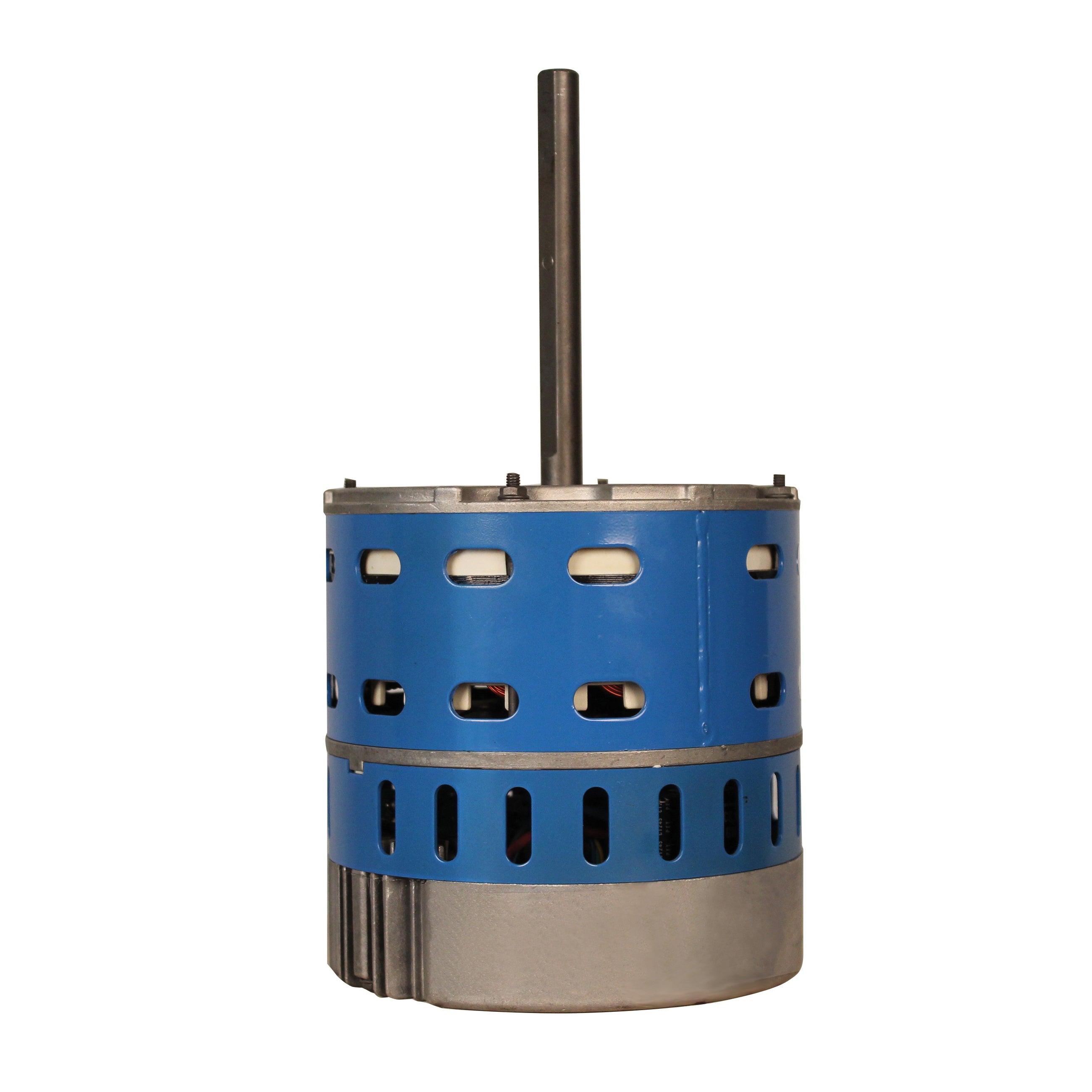

The Mars Azure® ECM Condenser Fan Motor with MPN 10861 is designed for reliable performance in various HVAC applications. This motor operates at input voltages of 115 or 230 volts and delivers power ranging from half to one horsepower. It provides a cost-effective solution to replace multiple existing motors with its straightforward installation. The Mars Azure® connects similarly to a PSC motor without requiring an external capacitor.
- Multi-horsepower capabilities
- Reversible rotation feature for flexibility
- No capacitor required simplifies the installation
Product Highlights
This motor optimizes efficiency and performance, making it suitable for various cooling and heating systems.
Product Information
Standard Information
Technical Specifications
-
Performance RPM: 1075 RPM
-
Electrical Data Phase: 1
-
Performance Horsepower: 1 HP
-
Electrical Data Voltage: 115/230 Volts
-
Electrical Data Frequency: 50/60 Hz
-
Max Operating Temperature: 131 F
-
Min Operating Temperature: -4 F
-
Mount Type: Belly Band
-
Type: Fan Motor
-
Certifications: UL Listed
