Product Description

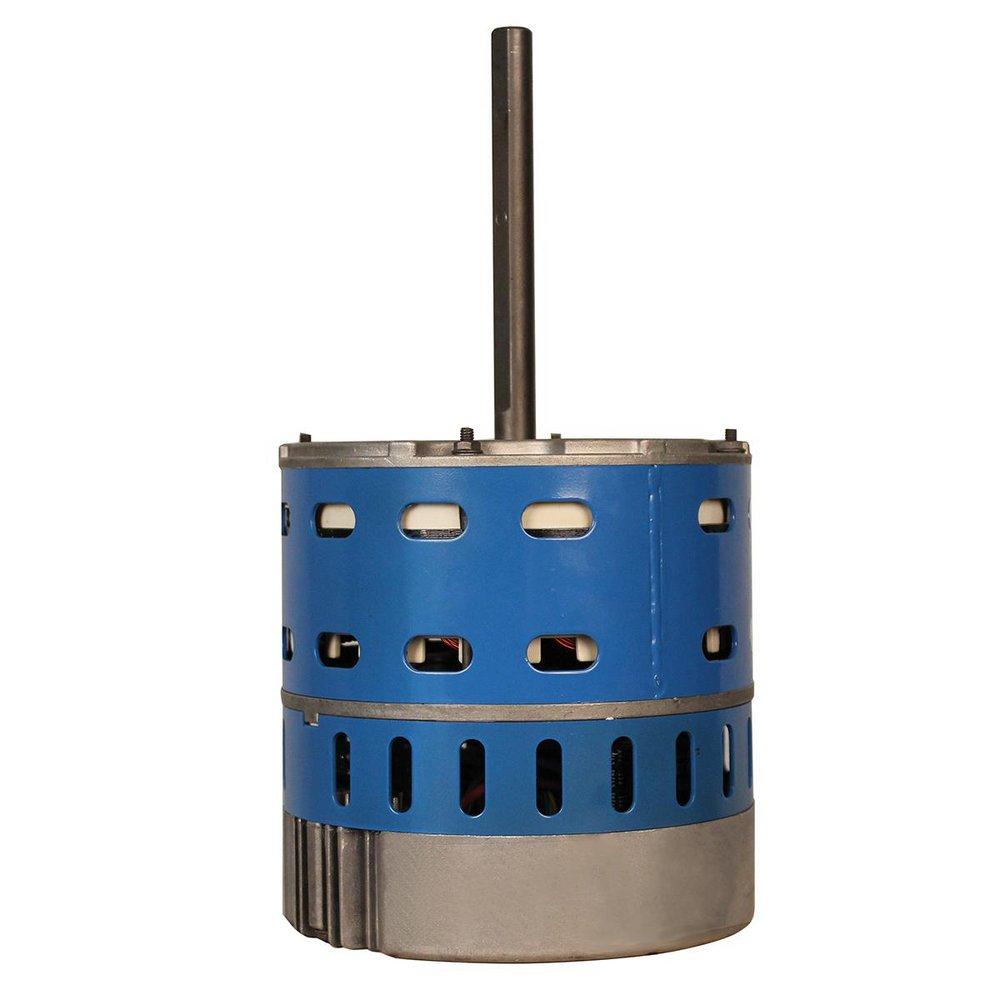

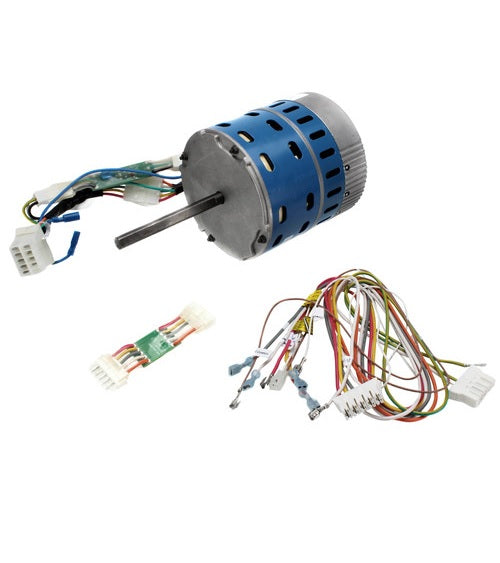

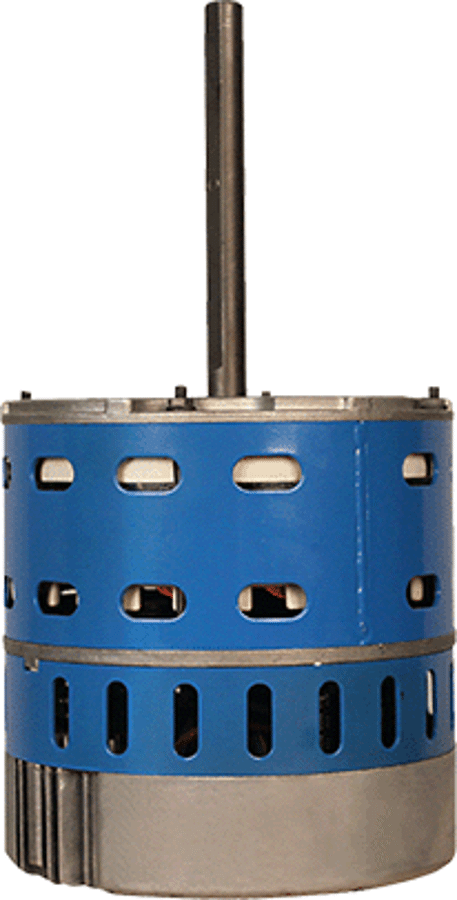

The Mars Azure ECM condenser fan motor, model number 10860, operates at one-fifth to one-half horsepower with voltage capabilities of 115 and 230 volts. This motor features an electronically controlled design that simplifies installation by connecting similarly to a permanent split capacitor motor without the need for an external capacitor.
- Compatible with multiple applications
- Reversible rotation for versatile installation
- Uses shaft down orientation with belly band mount system
Product Highlights
The Mars Azure ECM motor is ideal for HVAC systems, providing energy efficiency and ease of use. It is designed for longevity and reliability in various environments.
Product Information
Standard Information
-
Brand: Mars
-
Type: Fan Motor
Technical Specifications
-
Performance RPM: 1075 RPM
-
Electrical Data - Phase: 1
-
Performance Horsepower: 1 HP
-
Electrical Data - Voltage: 115/230 Volts
-
Certifications: UL Listed
-
General Information - Mount Type: Belly Band
-
General Information - Product Line: Azure
-
Performance - Maximum Operating Temperature: 131 F
-
Performance - Minimum Operating Temperature: -4 F
