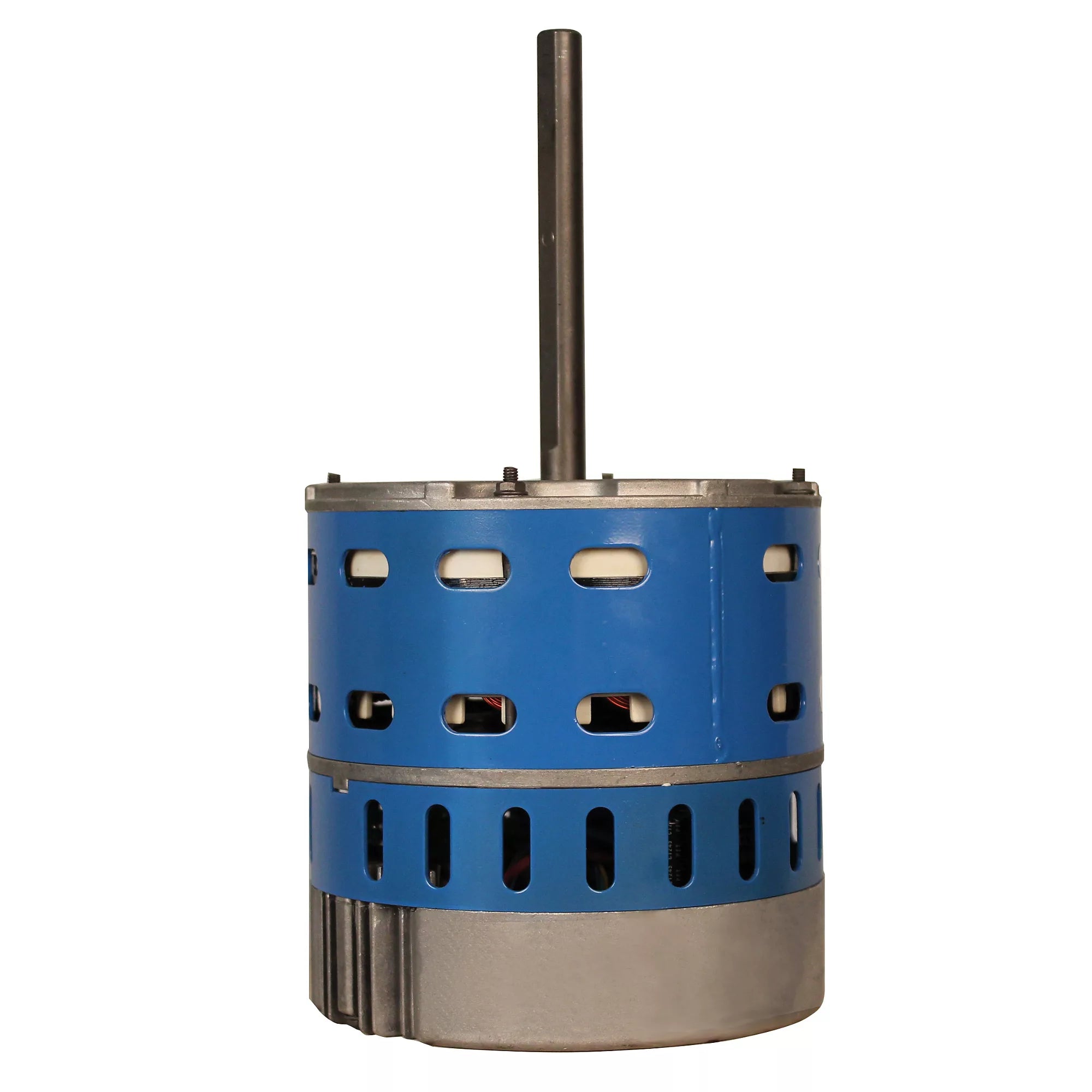

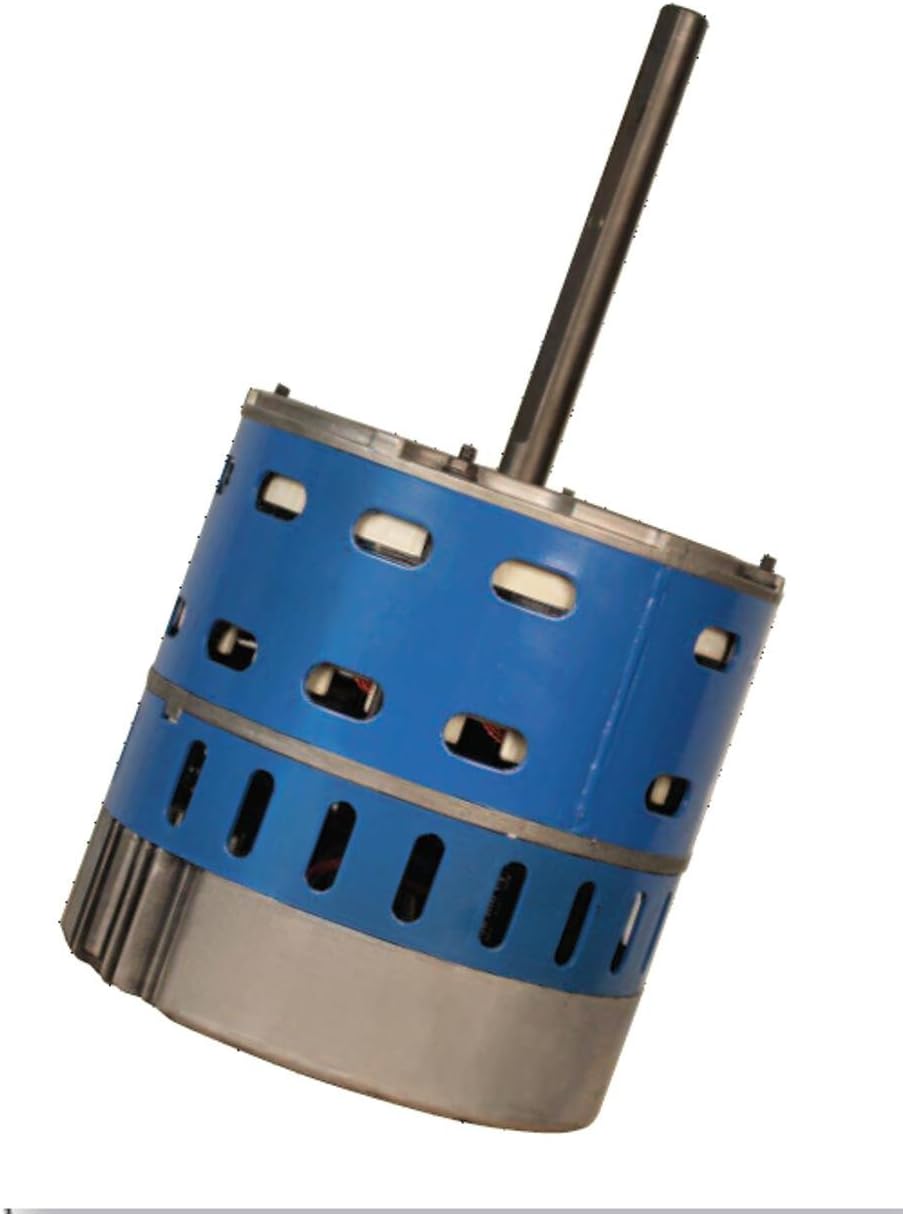

Mars 10860 Azure ECM Condenser Fan Motor 1/5-1/2 HP (Belly Band) Mars10860

Product Description

The Mars 10860 Azure ECM condenser fan motor is an electronically commutated variable-speed blower motor rated 1/5-1/2 HP and dual-voltage 115/230 V for HVAC condenser and blower applications. The ECM design eliminates the need for a capacitor and installs similar to a PSC motor. The motor supports reversible rotation, belly band mounting and a shaft-down orientation, and is UL listed with an operating range of -4 F to 131 F.

• Multi-horsepower ECM motor, 1/5-1/2 HP, dual-voltage 115/230 VAC
• Reversible rotation, belly band mount, shaft-down orientation; installs like a PSC motor
• No capacitor required; UL listed and thermal overload protected

Product Highlights

Azure ECM blower/condenser motor, 115/230 VAC, 1075 RPM, belly band mount, reversible rotation, no capacitor required

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 10860
• Country of Origin: China

Technical Specifications

• Brand: Mars
• Manufacturer Part Number: 10860
• Model: 10860
• Product Line: Azure
• Type: ECM condenser/blower fan motor
• Motor Type: Electronically commutated motor (ECM)
• Horsepower: 1/5-1/2 HP
• Input Voltage: 115/230 VAC
• Frequency: 50/60 Hz
• Phase: Single
• RPM: 1075 RPM
• Number of Speeds: 5
• Full Load Amps: 3.8-6.4 A
• Efficiency: 85%
• Drive Type: Direct
• Mounting Type: Belly band
• Shaft Orientation: Shaft down
• Rotation: Reversible (CW/CCW)
• Shaft Diameter: 0.5 in
• Shaft Length: 4.94 in
• Bearing Type: Ball
• Frame Size: 48
• Enclosure: Open Drip Proof (ODP)
• Insulation Class: B
• Thermal Protection: Thermal overload protected
• Protection Device: Outboard replaceable surge protector (MARS No. 08593)
• Operating Temperature Range: -20 C to 55 C (-4 F to 131 F)
• Dimensions (motor): 5.5 in diameter x 5.72 in length
• Weight (manufacturer): 10 lb
• Certifications: UL Listed; UL Recognized; CSA Certified; CUL Listed
