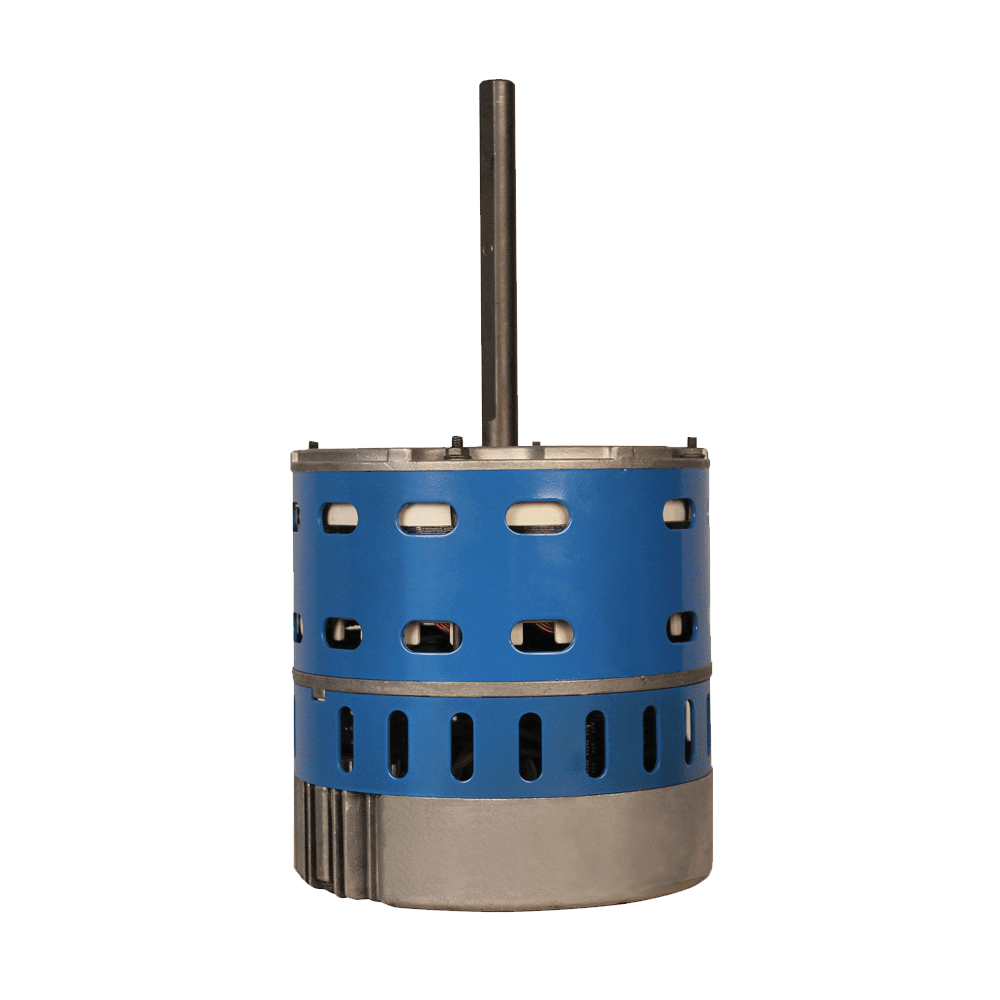

Mars 10859 Azure ECM Direct Drive Blower Motor with Bluetooth 1/2 to 1 HP

Product Description

The Mars 10859 Azure ECM Direct Drive Blower Motor is a high-efficiency, multi-horsepower motor engineered for HVAC blower applications. Rated from 1/2 to 1 HP, this electronically commutated motor (ECM) features integrated Bluetooth control via the AZURE ECM app, allowing precise configuration and airflow optimization. Designed for constant torque operation, it serves as a versatile replacement for X13 and similar motors, delivering improved energy efficiency and consistent performance. Its durable construction and direct drive design support reliable operation across a wide range of environmental conditions.

• Multi-horsepower rating: 1/2 to 1 HP
• Bluetooth control using AZURE ECM app for setup and performance tuning
• Constant torque ECM design for energy-efficient operation
• Reversible rotation for flexible installation
• Belly band mounting for secure installation
• Designed for HVAC blower applications and direct replacement use
• Operates across a wide temperature range from -20 deg C to +55 deg C

Product Highlights

This Azure ECM blower motor combines smart Bluetooth configuration with dependable performance. Its constant torque operation and wide compatibility make it ideal for retrofit and replacement applications, while maintaining efficiency and control.

Product Information

Standard Information

• Brand: Mars
• MPN: 10859
• Product Line: Azure ECM

Technical Specifications

• Motor Type: ECM (Electronically Commutated Motor)
• Application: Direct Drive Blower
• Horsepower: 1/2 to 1 HP
• Voltage: 120/240 VAC
• Frequency: 50/60 Hz
• Phase: Single Phase
• Speeds: 5
• Maximum Speed: 1075 RPM
• Frame Size: 48
• NEMA Size: 48
• Mounting Type: Belly Band
• Enclosure: Open Air Over (OAO)
• NEMA Enclosure Type: Open Air Over
• Insulation Class: Class B
• Temperature Range: -20 deg C to +55 deg C
• Shaft Diameter: 1/2 inch
• Shaft Length: 4.94 inches
• Rotation: Reversible
• Connectivity: Bluetooth (AZURE ECM App)
• Certifications: cUL Listed
• Weight: 16.138 lb
