Product Description

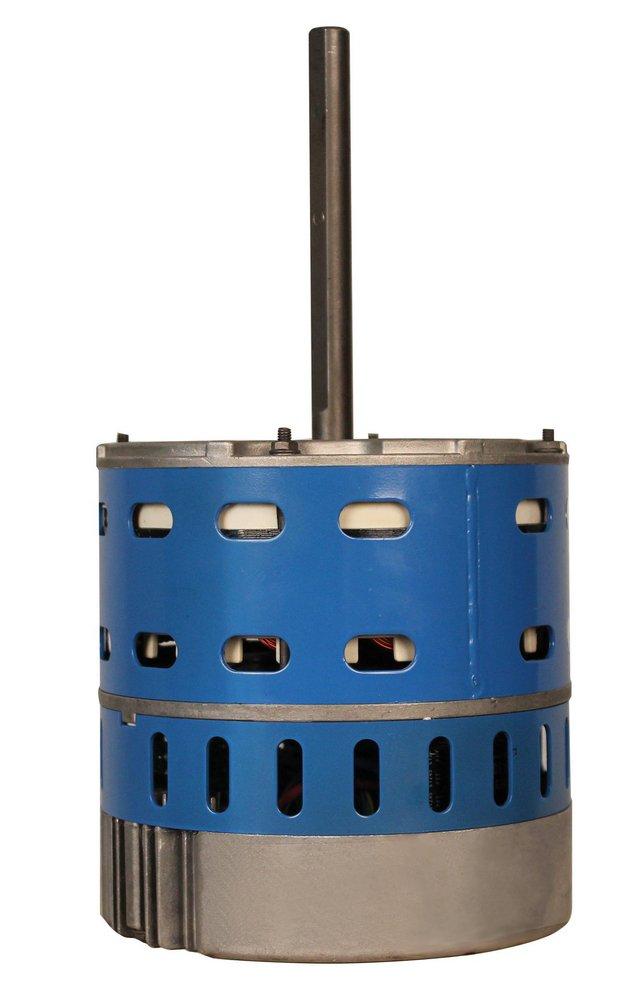

The Mars Azure® ECM Condenser Fan Motor, model 10858, is designed for efficient operation in various HVAC applications. This motor features integrated Bluetooth control, allowing users to operate it directly through the Azure® ECM app. The app provides installers with tools to optimize the motor's functions effectively.
- Integrated Bluetooth for easy control
- No capacitor required, simplifying installation
- Multi-speed functionality with over 50 speed options
Product Highlights
This ECM motor replaces multiple applications and connects the same way as a traditional PSC motor. It has the capability to autosize according to ductwork, enhancing its overall performance.
Product Information
Standard Information
Technical Specifications
-
Performance RPM: 1075 RPM
-
Electrical Phase: 1
-
Horsepower: 1 HP
-
Voltage: 115/230 Volts
-
Frequency: 50/60 Hz
-
Type: Fan Motor
-
Mount Type: Belly Band
-
Maximum Operating Temperature: 131 F
-
Minimum Operating Temperature: -4 F
