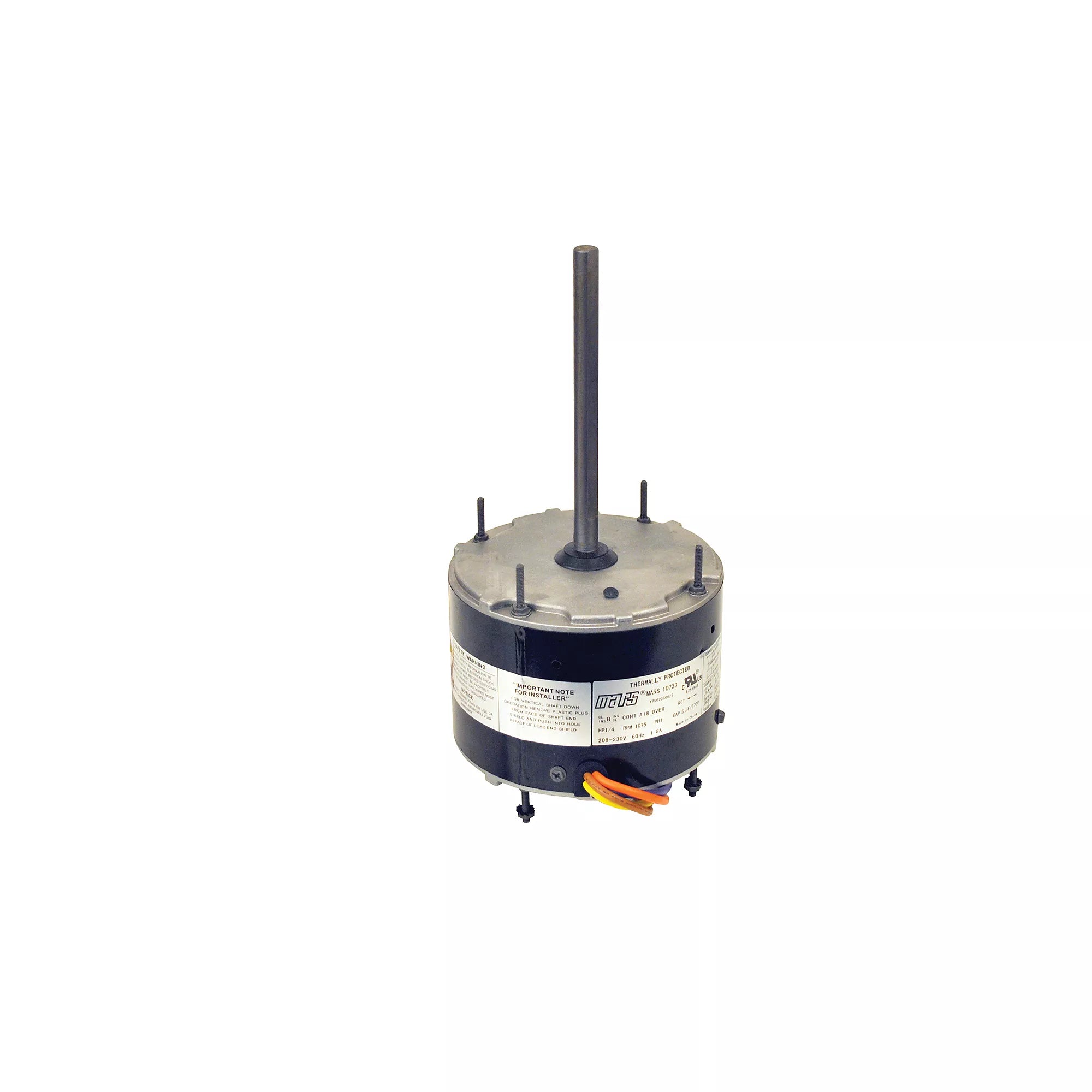

MARS 10734 1/3 HP 208 - 230V 1075 RPM Ball Bearing CF Motor

Product Description

The MARS 10734 is a ball bearing condenser fan motor designed for both vertical shaft-up and shaft-down applications. This motor is suitable for use in air conditioning systems and heat pumps. The enclosed shell and end shields provide weather protection, and it features weep holes for effective condensate drainage.

• Amps: 2.4
• Reversible rotation capability
• Class B insulation with thermal overload protection

Product Highlights

This motor provides reliable performance for cooling systems while ensuring durability and efficiency.

Product Information

Standard Information

• Brand: MARS
• Motor HP: 1/3 HP
• Voltage: 208-230 VAC
• Phase: Single

Technical Specifications

• MPN: 10734
• RPM: 1075
• Height: 7.3 inches
• Width: 6.7 inches
• Length: 14.8 inches
• Shaft Diameter: 0.5 inches
• Shaft Length: 6.5 inches
• UL Listed: Yes
• Duty: Continuous (S1)
