Product Description

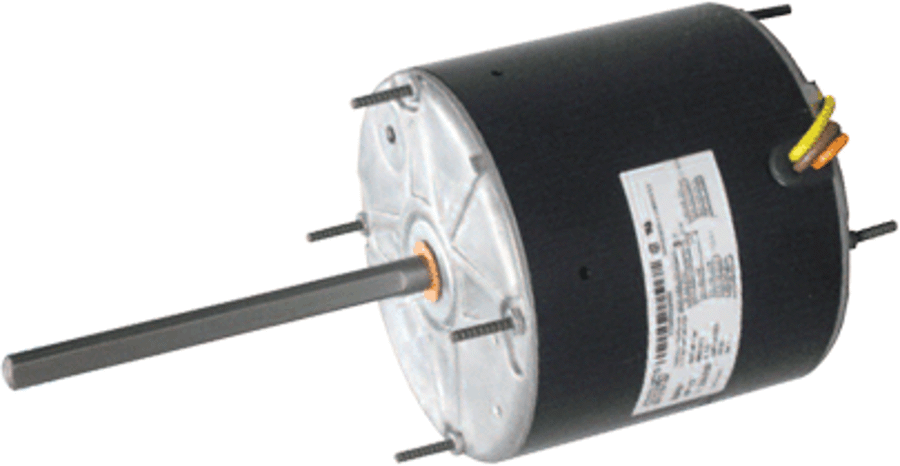

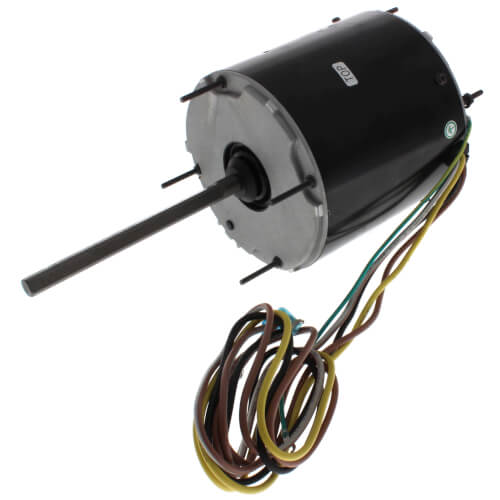

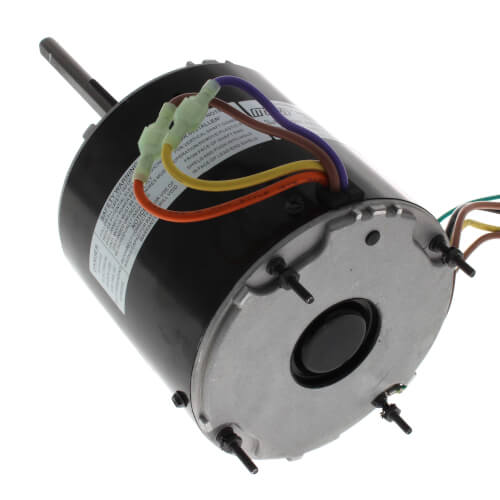

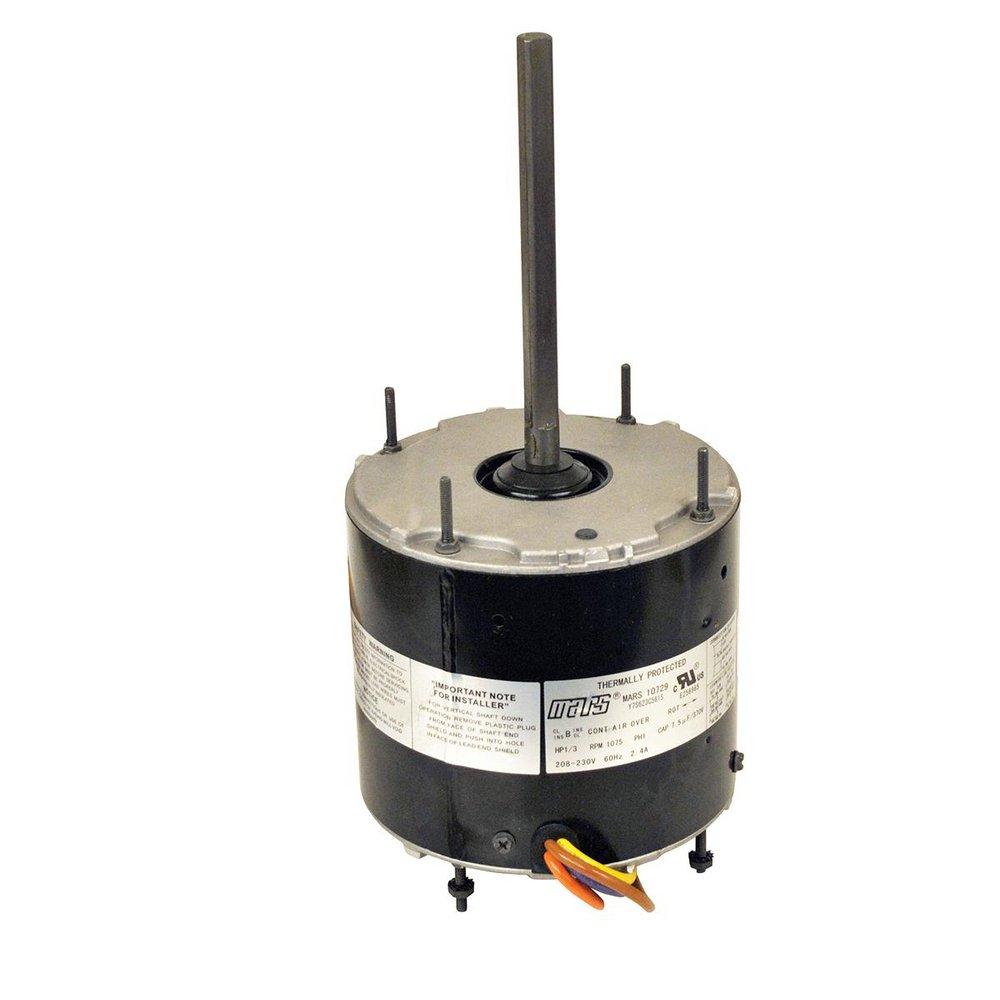

The Mars Single Speed Condenser Fan Motor, MPN 10730, is designed for air conditioning and heat pump applications. This motor operates at a power of one half horsepower and works with voltage ratings of two hundred eight to two hundred thirty volts. It runs at a speed of one thousand seventy-five RPM.
- All angle mounting options available.
- Water slinger designed on the shaft for effective drainage.
- Thermal overload protection included.
Product Highlights
This motor is weather protected suitable for both shaft-up and shaft-down applications.
Product Information
Standard Information
Technical Specifications
-
Horsepower: 1/2 HP
-
Voltage: 208/230 Volts
-
RPM: 1075
-
Current Draw: 3.5 Amps
-
Mount Type: All Angle
-
Enclosure Type: Totally Enclosed Air Over (TEAO)
-
Frequency: 60 Hz
-
Phase: 1
