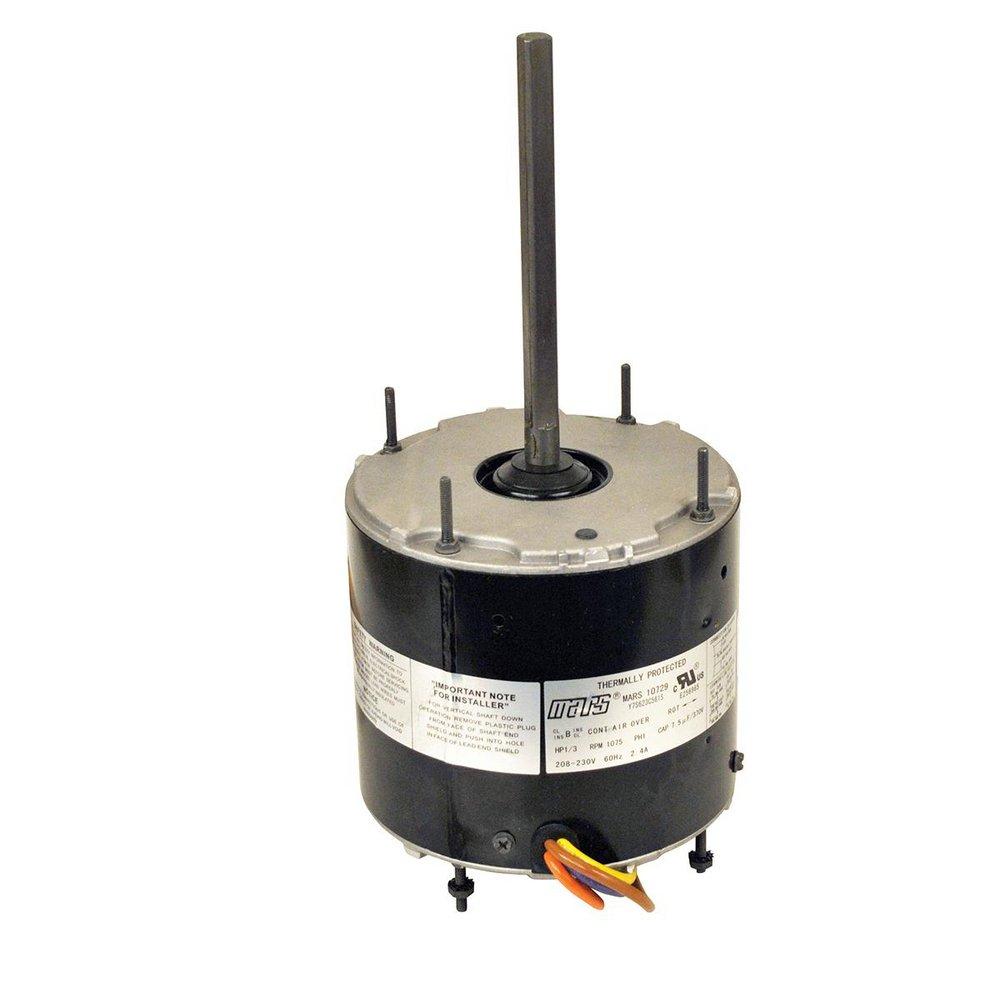

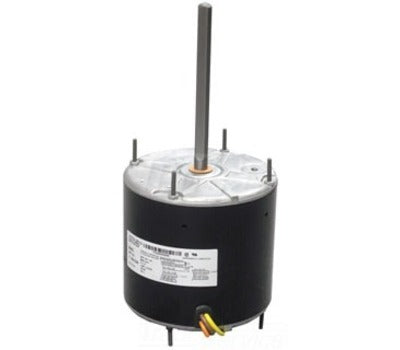

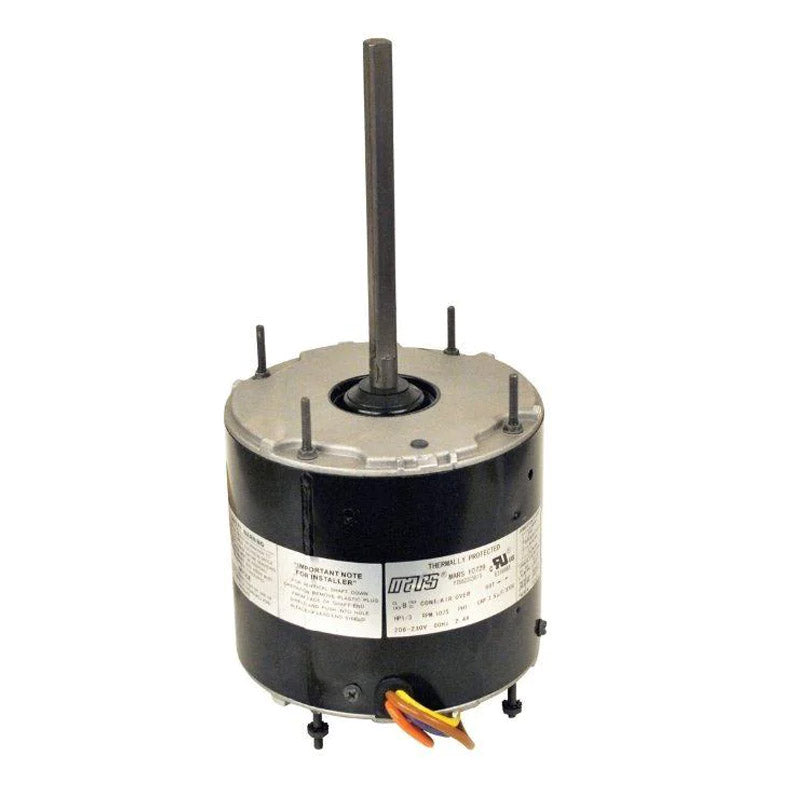

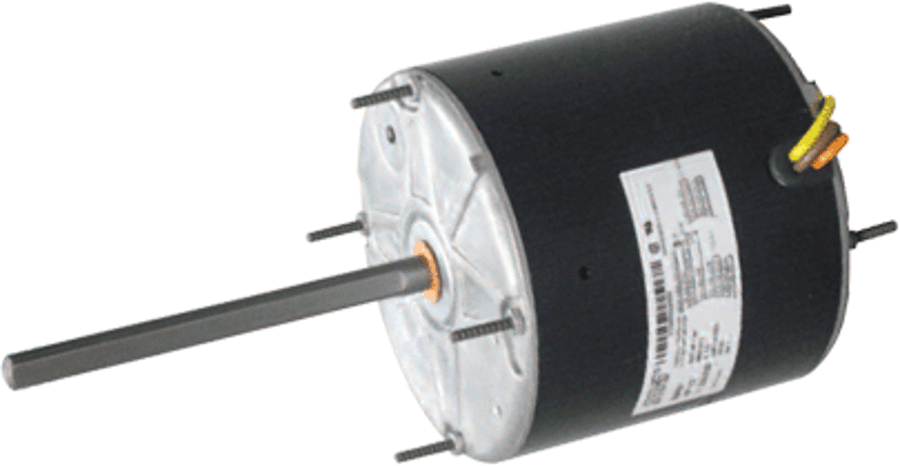

Mars 10728 Single Speed Condenser Fan Motor 1/4 HP 208/230 Volt 1075 RPM

Product Description

The Mars Single Speed Condenser Fan Motor, MPN 10728, is designed for use in air conditioning and heat pump systems. This motor operates at one-quarter horsepower and works efficiently at two hundred eight to two hundred thirty volts with a rotational speed of one thousand seventy-five RPM. It is suitable for both shaft-up and shaft-down applications.

• All angle mount design
• Water slinger on the shaft
• Thermal overload protection

Product Highlights

This motor is weather protected with enclosed end shields for durability and features a weep hole for drainage of condensate. It comes with thirty-six leads for easy wiring configurations and can be mounted using either through bolt or band mount styles.

Product Information

Standard Information

• Brand: Mars
• Type: Condenser Fan Motor

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 208/230 Volts
• Phase: 1
• RPM: 1075 RPM
• Frequency: 60 Hz
• Current Draw: 1.8 Amps
• Mount Type: All Angle
• Certifications: UL Listed
