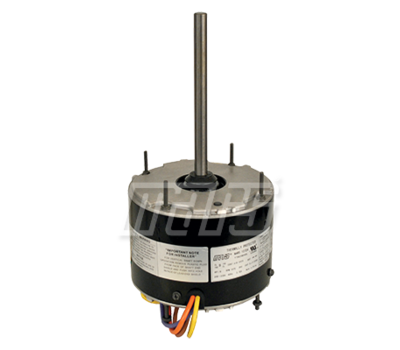

Mars 10726 1/5 HP 208 to 230 V AC 1.17 Amp Reversible PSC Condenser Fan Motor 1075 RPM

Product Description

The Mars 10726 1/5 HP reversible PSC condenser fan motor is designed for 208 to 230 volts AC applications. It features enclosed end shields for weather protection, making it suitable for both air conditioning and heat pump systems. Condensate weep holes ensure efficient drainage in any orientation, whether shaft-up or shaft-down.

• All angle sleeve bearings
• Rheem mounting holes with screws installed
• Water slinger on shaft

Product Highlights

This motor is reliable for HVAC systems, providing efficient and reversible operation.

Product Information

Standard Information

• Brand: Mars
• Model Number: 10726
• Application: Air Conditioners and Heat Pumps

Technical Specifications

• Weight: 1 lb.
• Frame Size: 48
• Body Length: 4.12 inches
• Shaft Length: 6.5 inches
• Body Diameter: 5.5 inches
• Mounting Type: Thru Bolt/All Angle
• Nameplate RPM: 1075 RPM
• Current Rating: 1.17 amp
• Shaft Diameter: 0.5 inches
• Voltage Rating: 208 to 230 V AC
• Frequency Rating: 60 Hz
• Lead Wire Length: 36 inches
• Number Of Phases: 1
• Number Of Speeds: 1
• Horsepower Rating: 1/5 HP
• Specifications Met: cULus Listed
• NEMA Enclosure Type: Totally Enclosed Air Over (TEAO)
• Rotation Directions: Reversible
• NEMA Insulation Class: B
• Motor Thermal Protection: Auto
• Maximum Operating Temperature: 40 deg F
