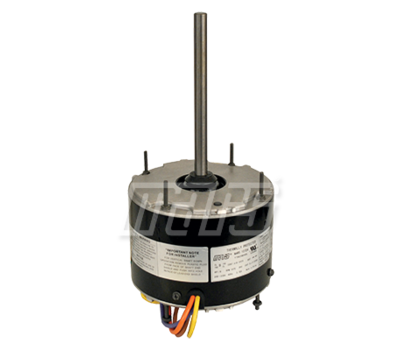

Mars 10725 1/8 HP 208 to 230 V AC 0.72 Amp Reversible PSC Condenser Fan Motor 1075 RPM

Product Description

The Mars 10725 is a 1/8 HP 208 to 230 volt AC, 0.72 amp reversible PSC condenser fan motor operating at 1075 RPM. This motor is designed for both air conditioning and heat pump applications.

• All angle sleeve bearings
• Rheem mounting holes with screws installed
• Water slinger on shaft

Product Highlights

This condenser fan motor features double full flatted shafts and thru bolt or band mounting. It is suitable for shaft-up or shaft-down applications and comes with a weep hole in each end shield for condensate drainage. It is designed for outdoor use with protective end shields.

Product Information

Standard Information

• Brand: Mars
• Model Number: 10725
• Application: Air Conditioners and Heat Pumps

Technical Specifications

• Weight: 1 lb.
• Frame Size: 48
• Body Length: 4.12 inches
• Shaft Length: 6.5 inches
• Body Diameter: 5.5 inches
• Mounting Type: Thru Bolt/All Angle
• Nameplate RPM: 1075 RPM
• Current Rating: 0.72 amp
• Shaft Diameter: 0.5 inches
• Voltage Rating: 208 to 230 V AC
• Frequency Rating: 60 Hz
• Lead Wire Length: 36 inches
• Number Of Phases: 1
• Number Of Speeds: 1
• Horsepower Rating: 1/8 HP
• Specifications Met: cULus Listed
• NEMA Enclosure Type: Totally Enclosed Air Over (TEAO)
• Rotation Directions: Reversible
• NEMA Insulation Class: B
• Motor Thermal Protection: Auto
• Maximum Operating Temperature: 40 degrees F
