Product Description

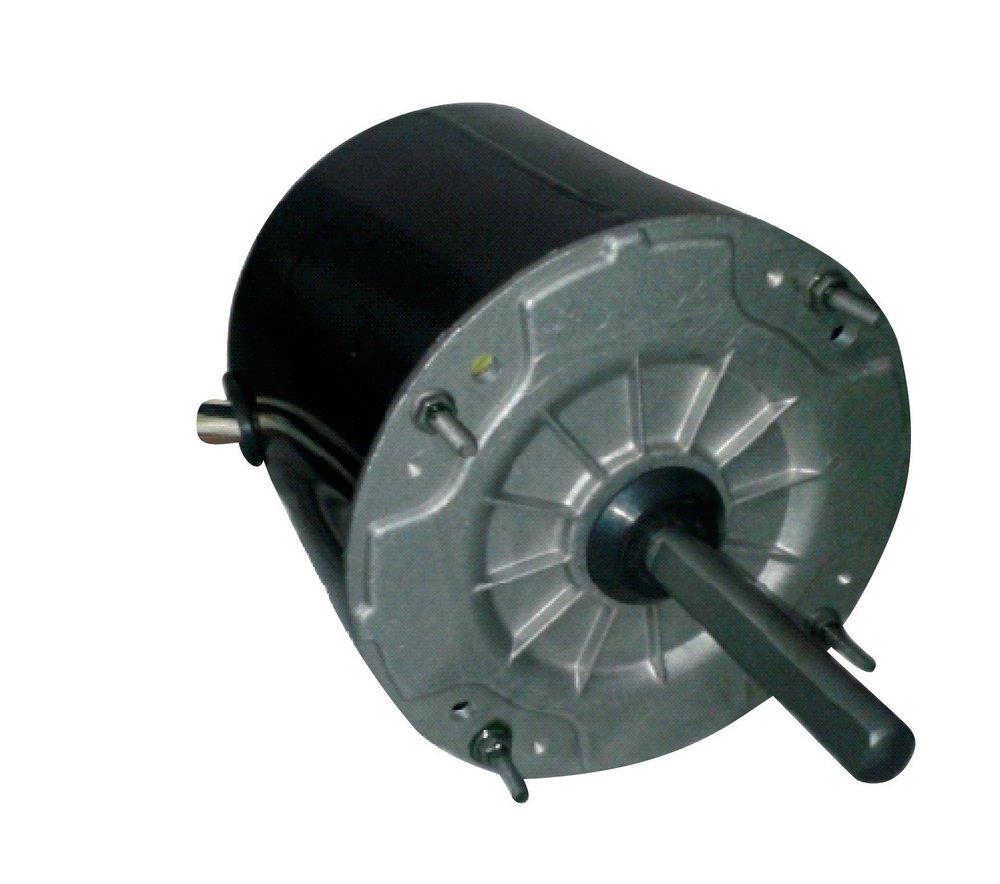

The MARS 10722 is a 1/8 horsepower, 1075 RPM single phase condenser motor designed for HVAC applications. This motor operates at voltage levels from 208 to 230 volts. It is suitable for use as a replacement in several HVAC units.
- Reversible rotation for installation flexibility
- Built with all angle ball bearing for durability
- Includes Super-Fit mounting holes for various Trane models
Product Highlights
Ideal for replacing older condenser motors, the MARS 10722 features thermal overload protection and is rated for continuous operation.
Product Information
Standard Information
Technical Specifications
-
Horsepower Rating: 1/8, 1/10, 1/12 HP
-
Voltage Rating: 208 to 230 V AC
-
Current Rating: 0.75 amp
-
Frame Size: 42
-
Nameplate RPM: 1075 RPM
-
Body Length: 4.13 inches
-
Shaft Length: 3 inches
-
Shaft Diameter: 1/2 inches
