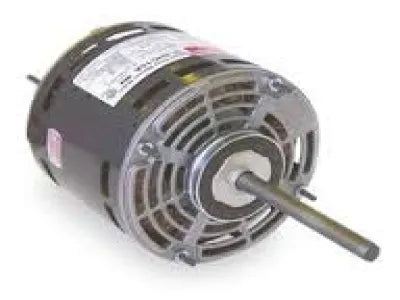

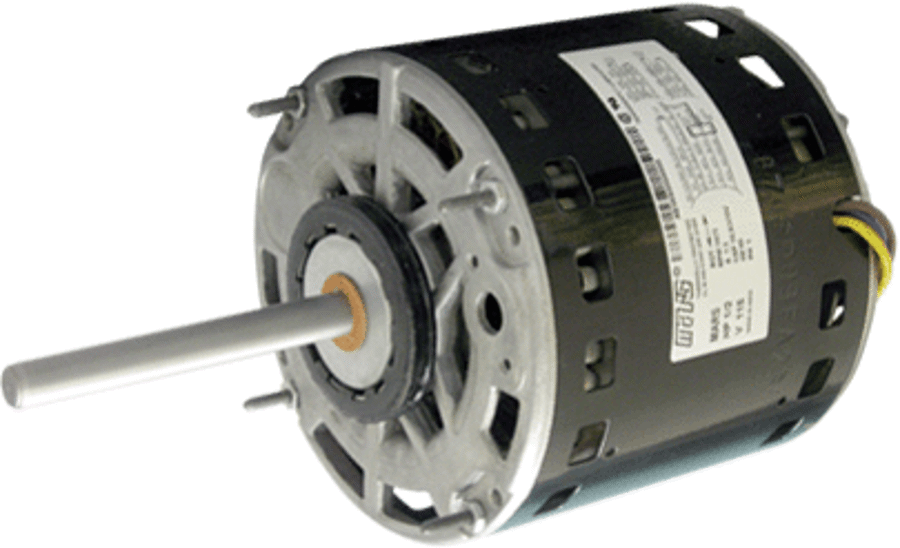

MARS 10590 3/4 hp 1075 RPM 208/230V Single Phase Blower Motor

Product Description

The MARS blower motor model 10590 is designed for HVAC applications. It operates at three-quarters of a horsepower and runs at a speed of one thousand seventy-five revolutions per minute. This motor functions on 208 to 230 volts, making it suitable for various heating and cooling systems.

• Reversible rotation for flexible installation options
• Easy direct drive connection for effective performance
• Thermal overload protection for increased safety

Product Highlights

This blower motor features sleeve bearings and a capacitor requirement stated on the motor label. It includes two and one-quarter resilient rings for mounting stability.

Product Information

Standard Information

• Brand: MARS
• MPN: 10590

Technical Specifications

• Type: Blower Motor
• Voltage: 208-230 VAC
• Horsepower: 3/4 hp
• Speed: 1075 RPM
• Diameter: 5.5 inches
• Rotation: Reversible
• Enclosure: Open Air Over
• Phase: Single Phase
• Amperage Rating: 4.5 A Full Load
• Application Type: HVAC
• Runtime: Continuous
• Insulation Class: Class B
• Temperature Rating: 60 degrees Celsius
• Certification: cUL Listed
