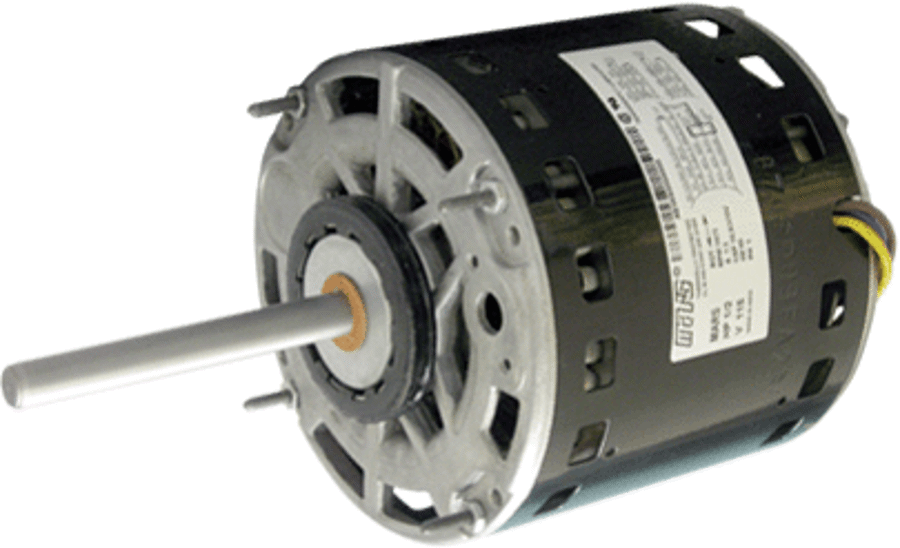

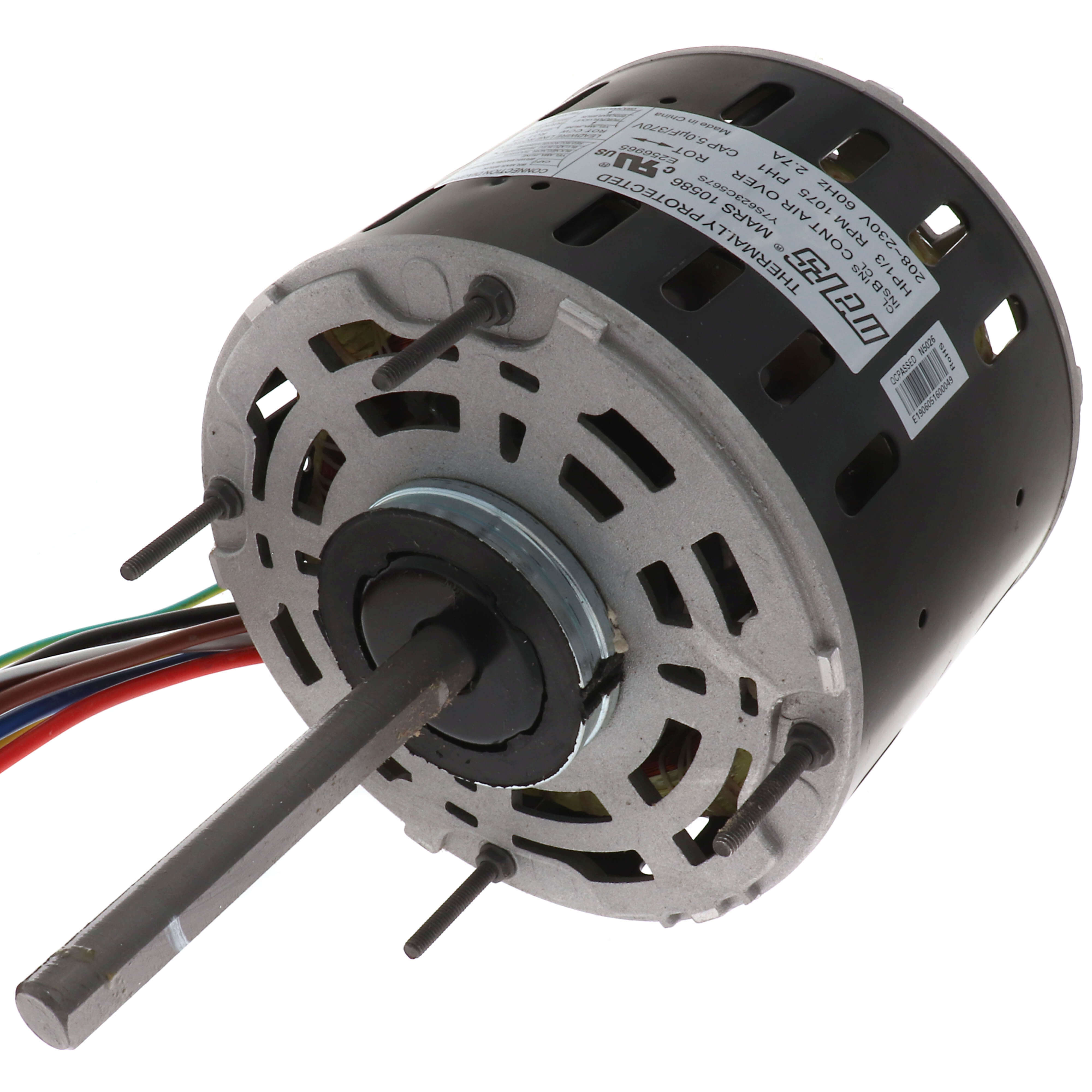

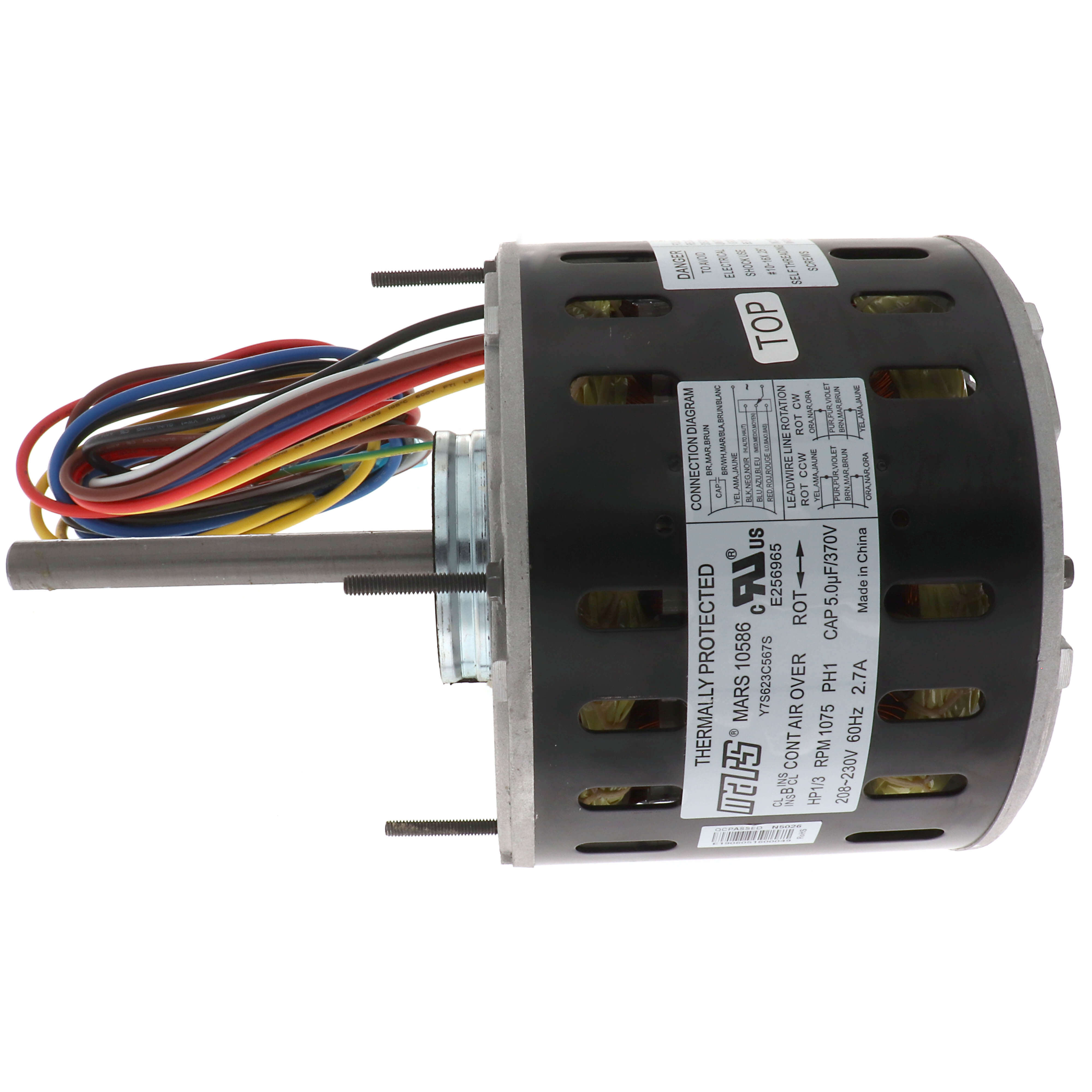

Mars 10586 Three Speed Direct Drive Blower Motor 1/3 HP 208/230 Volt

Product Description

The Mars 10586 is a three-speed direct drive blower motor designed for HVAC applications. It operates at one-third horsepower with a voltage range of 208 to 230 volts. This blower motor is built with Rheem mounting holes and includes 2 -1/4 resilient rings for enhanced installation options. Additionally, the motor features thermal overload protection and a robust open air over enclosure for improved durability.

• Three-speed operation
• Angle sleeve bearings ensure efficient performance
• Reversible mounting for versatile application

Product Highlights

This blower motor is suitable for various heating, cooling, and ventilation systems. Its design allows for quick and easy installation, making it a reliable choice for HVAC technicians.

Product Information

Standard Information

• Brand: Mars
• MPN: 10586

Technical Specifications

• Type: Blower Motor
• Horsepower: 1/3 HP
• Voltage: 208/230 Volts
• RPM: 1075 RPM
• Phase: 1
• Frequency: 60 Hz
• Amperage Draw: 2.7 Amps
• Sleeve Bearing: Yes
• Enclosure Type: Open Air Over
• Speed Settings: 3
