Description

Product Description

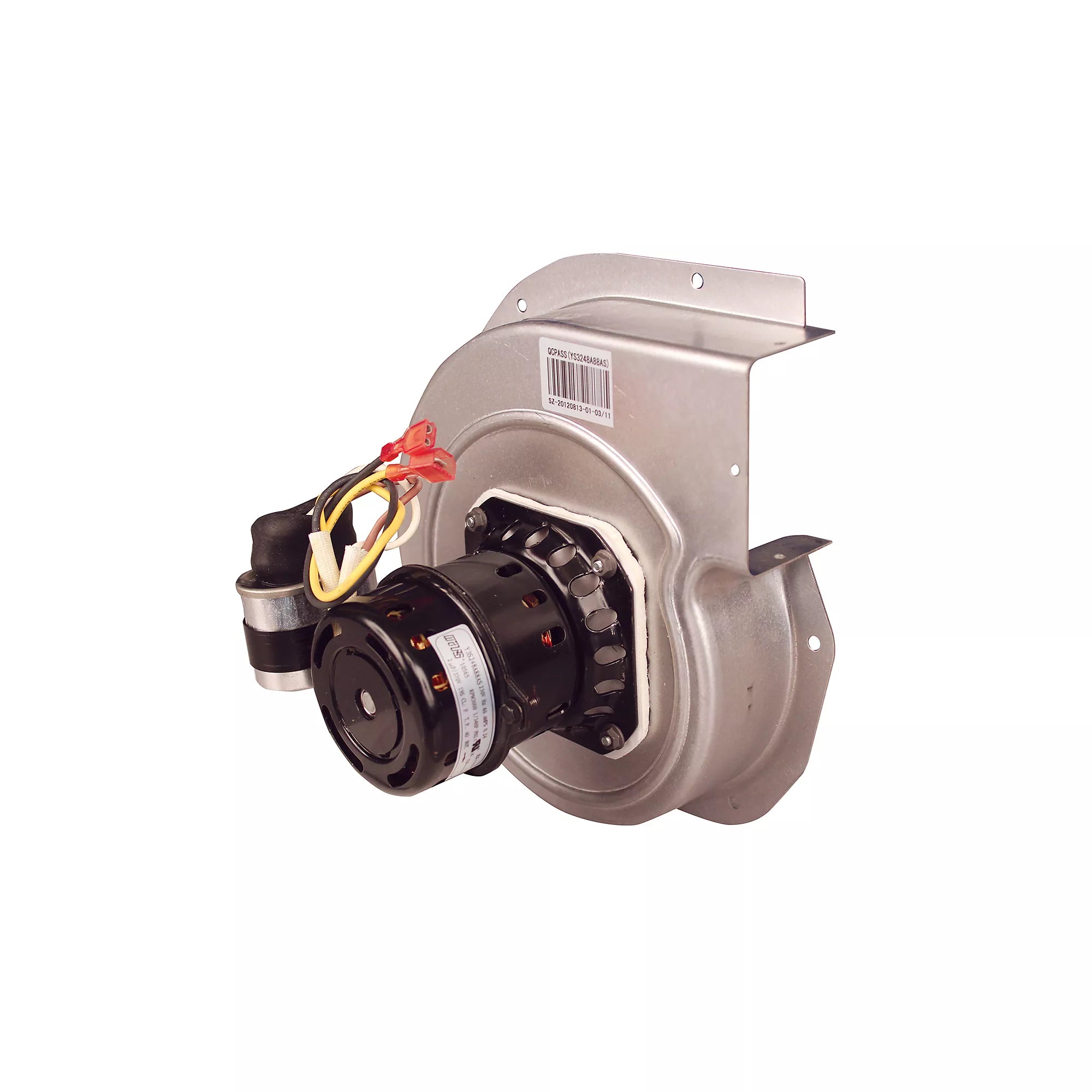

The MARS 10565 draft inducer blower assembly is designed and manufactured as a drop-in, exact replacement. This single-speed, single-phase motor operates at 60 Hz and is thermally protected with air over. It features a C-Frame design and is suitable for various applications requiring a continuous duty motor.

  • Designed as drop-in, exact replacements
  • Thermal protected, air over
  • Single Phase

Product Highlights

The MARS 10565 is a direct replacement motor for Trane 80% D965128P01 furnace blower. It ensures seamless integration and reliable performance.

Product Information

Standard Information

  • Brand: MARS
  • Manufacturer Part Number: 10565

Technical Specifications

  • RPM: 3000
  • Amps: 0.24
  • Duty: Continuous
  • Brand: MARS
  • Phase: Single
  • Voltage: 208-230 VAC
  • Motor HP: 1/34 HP
  • Rotation: Clockwise
  • UL Listed: Yes
  • CUL Listed: Yes
  • Motor Type: PSC (Permanent Split Capacitor)
  • NEMA Frame: 2.6"/65mm
  • CSA Listing: Yes
  • Cycle/Hertz: 60 Hz
  • Bearing Type: Ball
  • Shaft Length: 4.13"
  • Mounting Type: Belly Band/Studs/Resilient Ring
  • UL Recognized: Yes
  • CUL Recognized: Yes
  • Shaft Diameter: 4.13"
  • Motor Enclosure: Open
  • Insulation Class: Class F
  • Basis Of Rotation View: Lead End
  • Hertz: 60
  • Speeds: 1
  • Watts: 17
