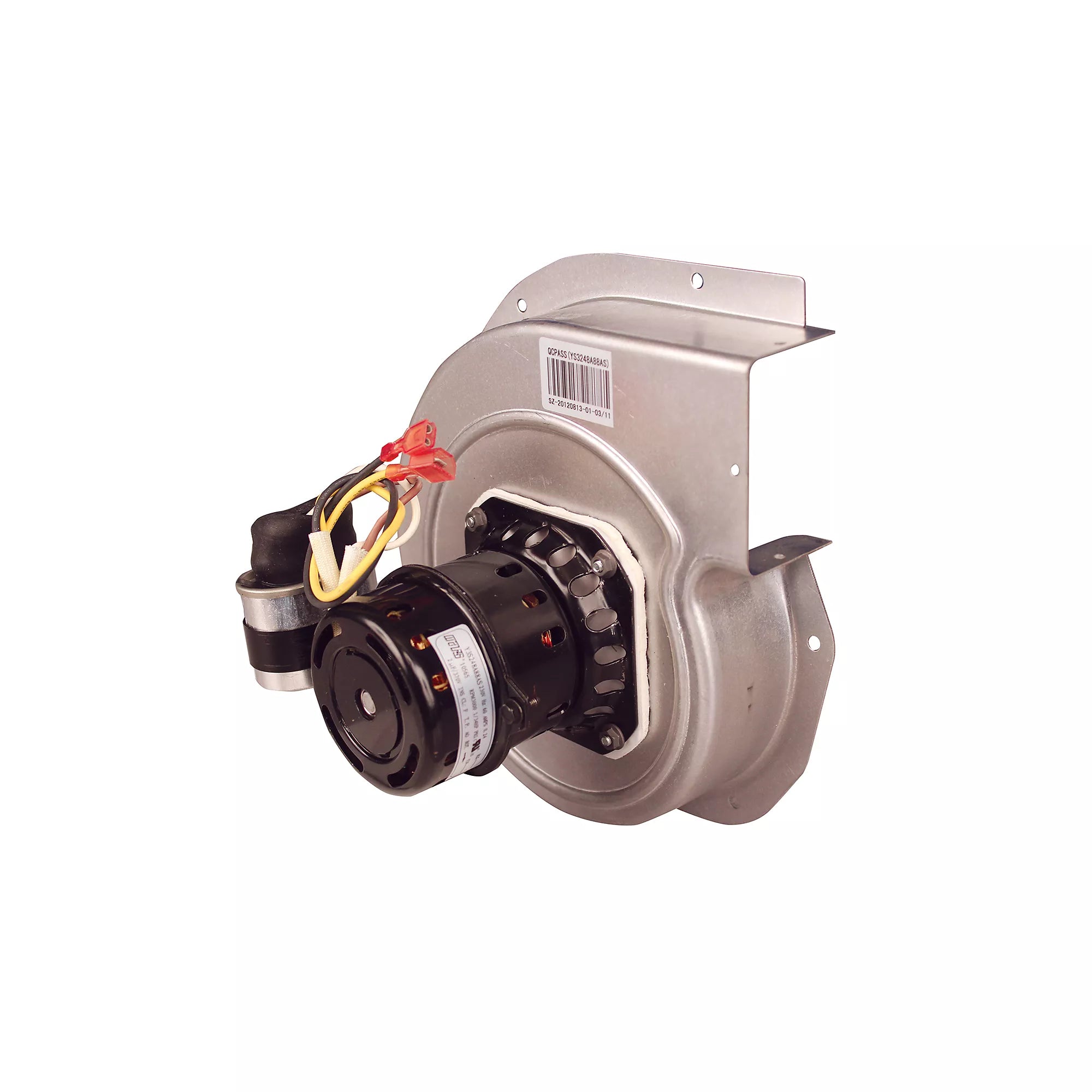

MARS 10564 1/39 HP 230V 2800/1500 RPM Furnace Blower Motor Replacement for Trane 80PCT D965129P01

Product Description

The MARS 10564 is a Furnace Blower Motor designed for 1/39 horsepower with dual rotational speeds of 2800 and 1500 RPM. This motor is a direct replacement for Trane 80% models, part number D965129P01. It is typically used in HVAC systems for reliable air movement.

• Single phase, thermally protected
• 60 Hz, continuous duty cycle
• UL Listed ensuring safety and reliability

Product Highlights

This motor features a Permanent Split Capacitor (PSC) design and ball bearing type which facilitates quieter operation and improves efficiency.

Product Information

Standard Information

• Brand: MARS
• MPN: 10564
• Motor HP: 1/39 HP
• Phase: Single
• Voltage: 208-230 VAC

Technical Specifications

• Rotation: Clockwise
• Frame Size: NEMA 2.6 inches (65mm)
• RPM: 2800/1500
• UL Recognized: Yes
• CUL Recognized: Yes
• Insulation Class: Class F
• Shaft Diameter: 4.32 inches
• Mounting Type: Belly Band/Studs/Resilient Ring
