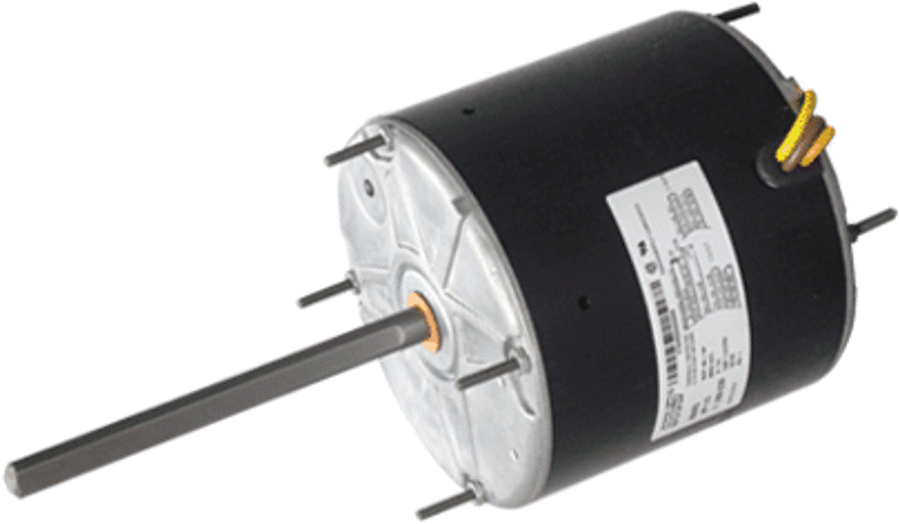

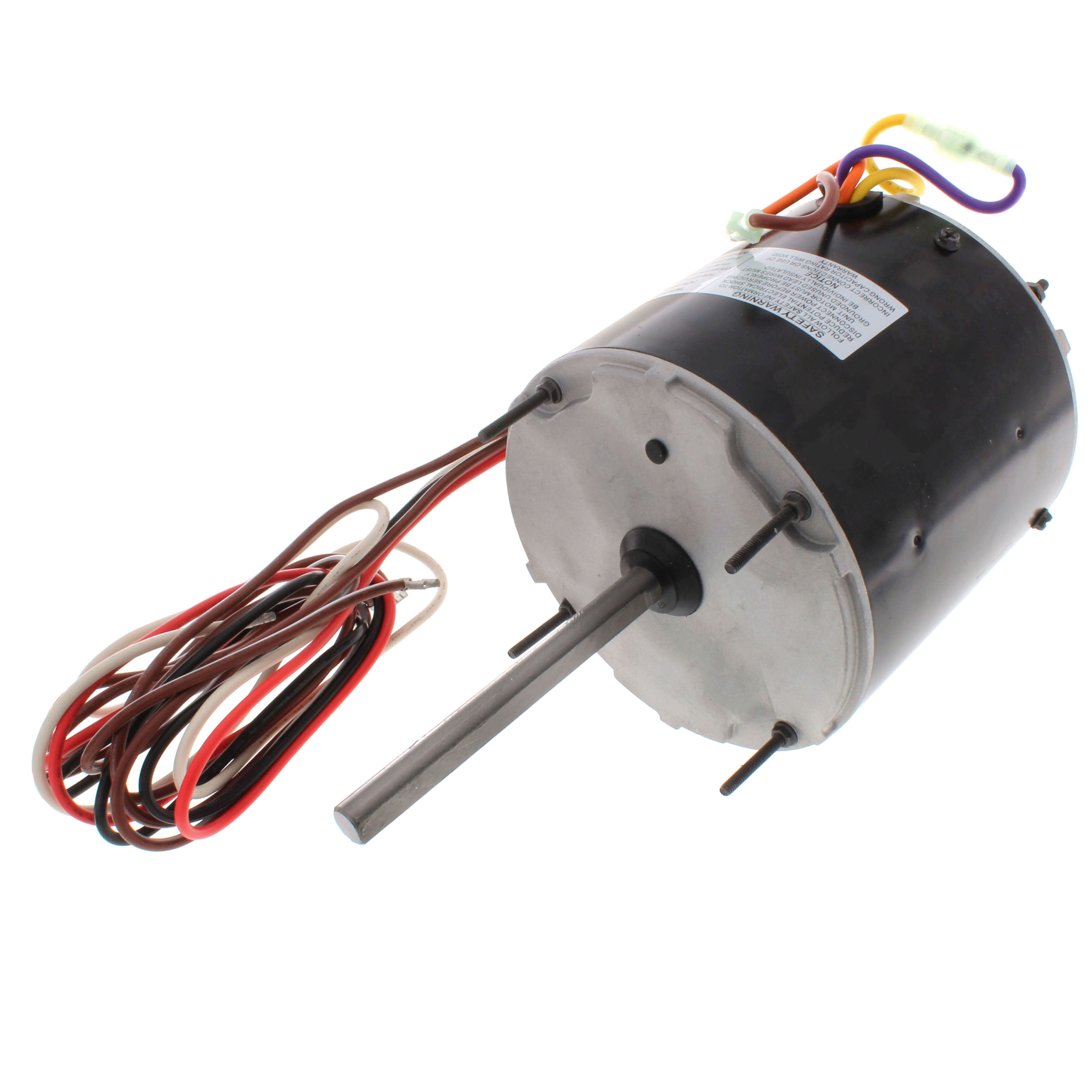

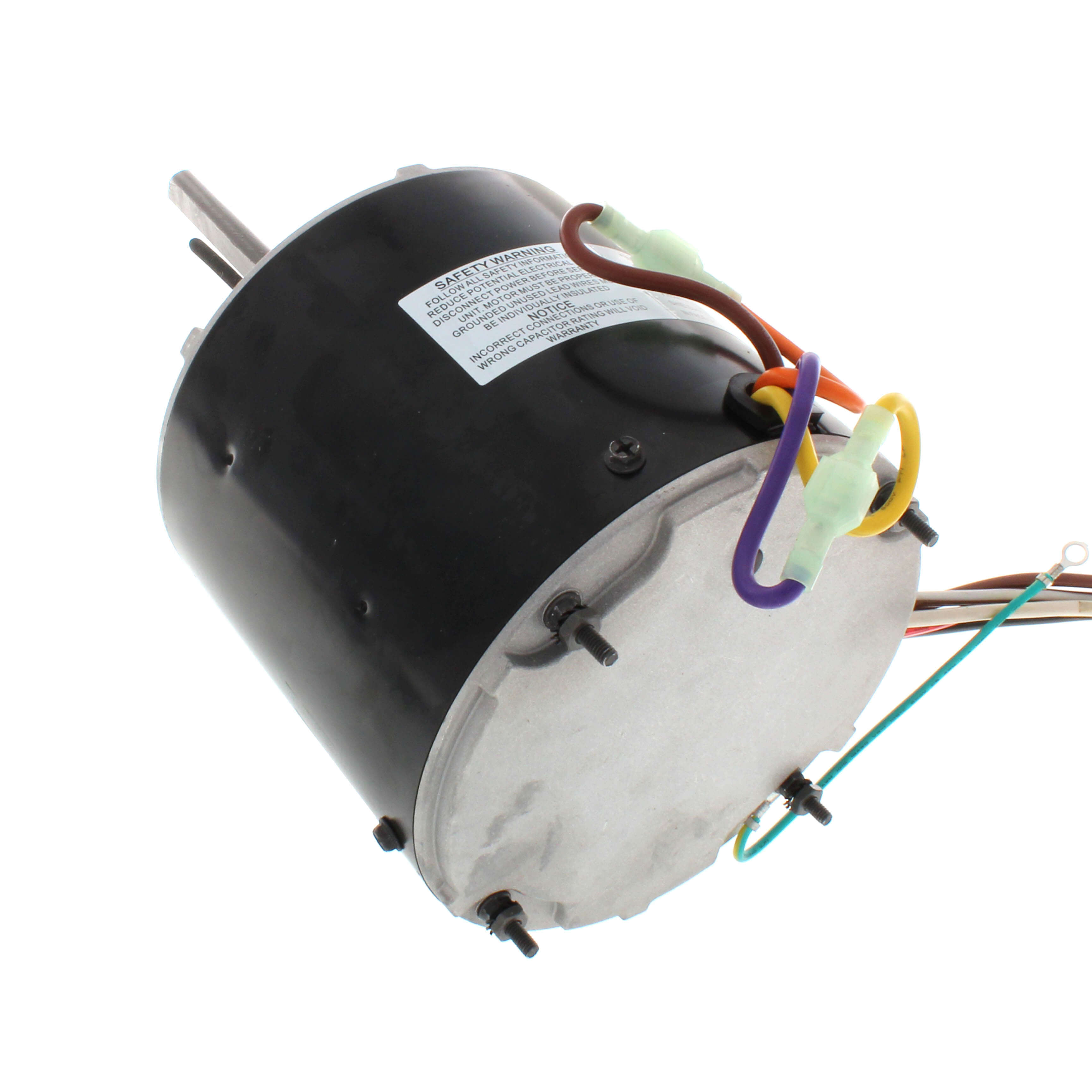

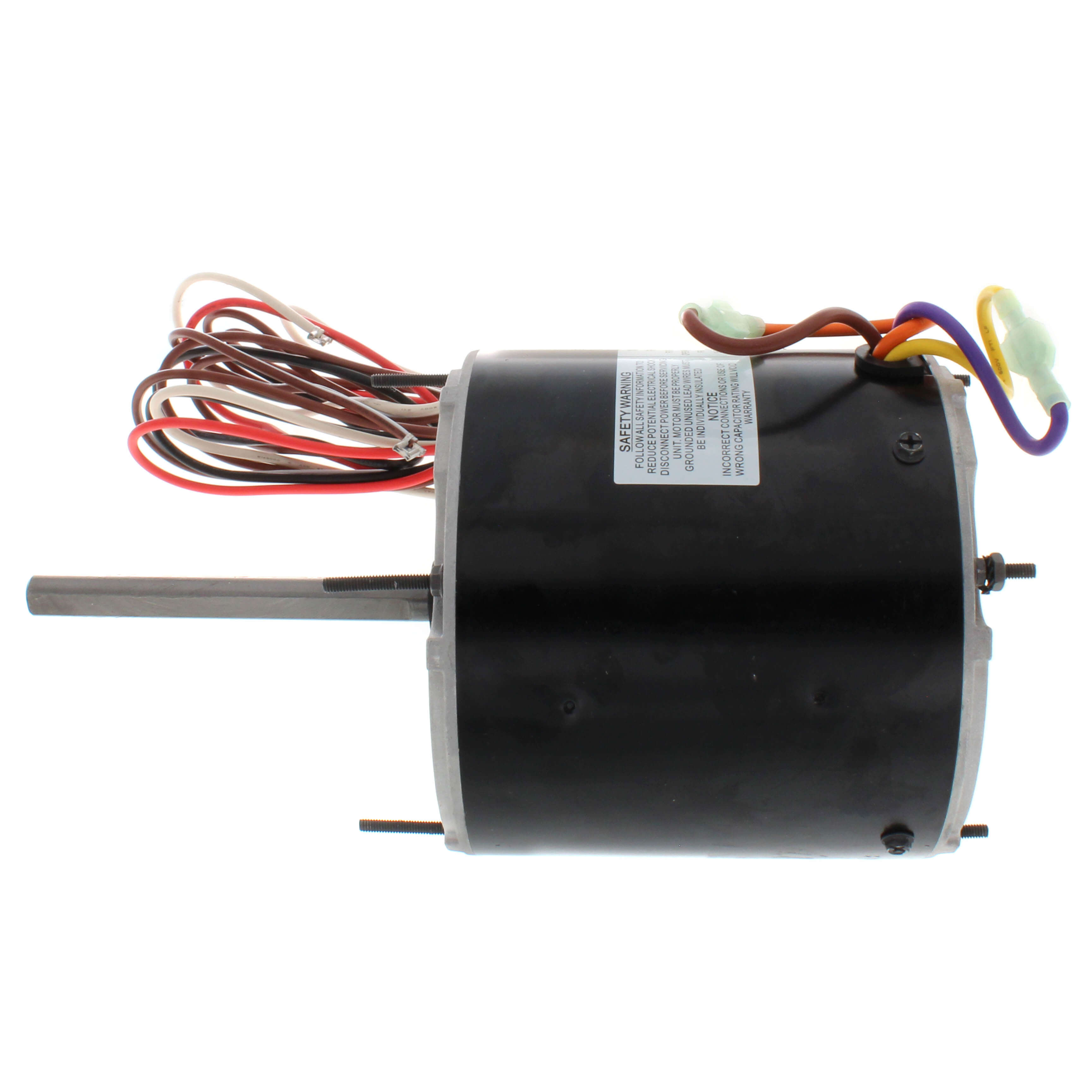

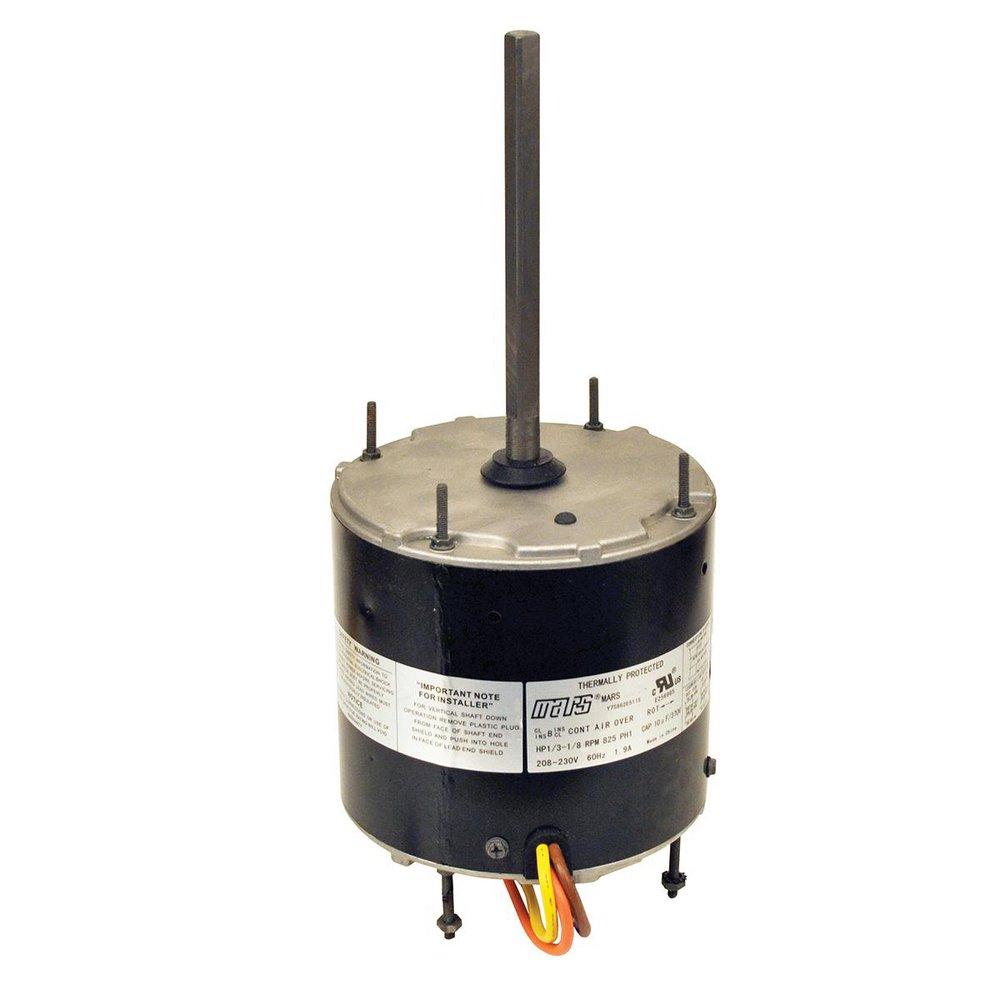

MARS 10469 1/6 - 1/3 hp 825 RPM 208/230V Single Phase Condenser Motor MAR10469
MARS 10469 1/6 - 1/3 hp 825 RPM 208/230V Single Phase Condenser Motor MAR10469
MARS 10469 1/6 - 1/3 hp 825 RPM 208/230V Single Phase Condenser Motor MAR10469
MARS 10469 1/6 - 1/3 hp 825 RPM 208/230V Single Phase Condenser Motor MAR10469
MARS 10469 1/6 - 1/3 hp 825 RPM 208/230V Single Phase Condenser Motor MAR10469

MARS 10469 1/6 - 1/3 hp 825 RPM 208/230V Single Phase Condenser Motor MAR10469

Brand: MARS
SKU: 10469
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm
$118.94
$118.94
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MARS 10469 is a single phase condenser motor designed for HVAC applications. This motor operates at a horsepower range of 1/6 to 1/3 and runs at 825 RPM. It is suitable for various condenser units and provides reliable performance.

  • Built with reversible rotation capability.
  • Features a durable ball bearing design.
  • Motor includes a capacitor requirement noted on the label.

Product Highlights

This motor is ideal for replacing aged or malfunctioning units in HVAC systems. Its construction includes robust materials designed for reliable continuous operation.

Product Information

Standard Information

  • Brand: MARS
  • MPN: 10469

Technical Specifications

  • Horsepower: 1/6-1/3 hp
  • Voltage: 208/230V
  • RPM: 825
  • Rotation: Reversible
  • Diameter: 5-1/2 inches
  • Enclosure: TEAO
  • Application: HVAC
  • Type: PSC
