Product Description

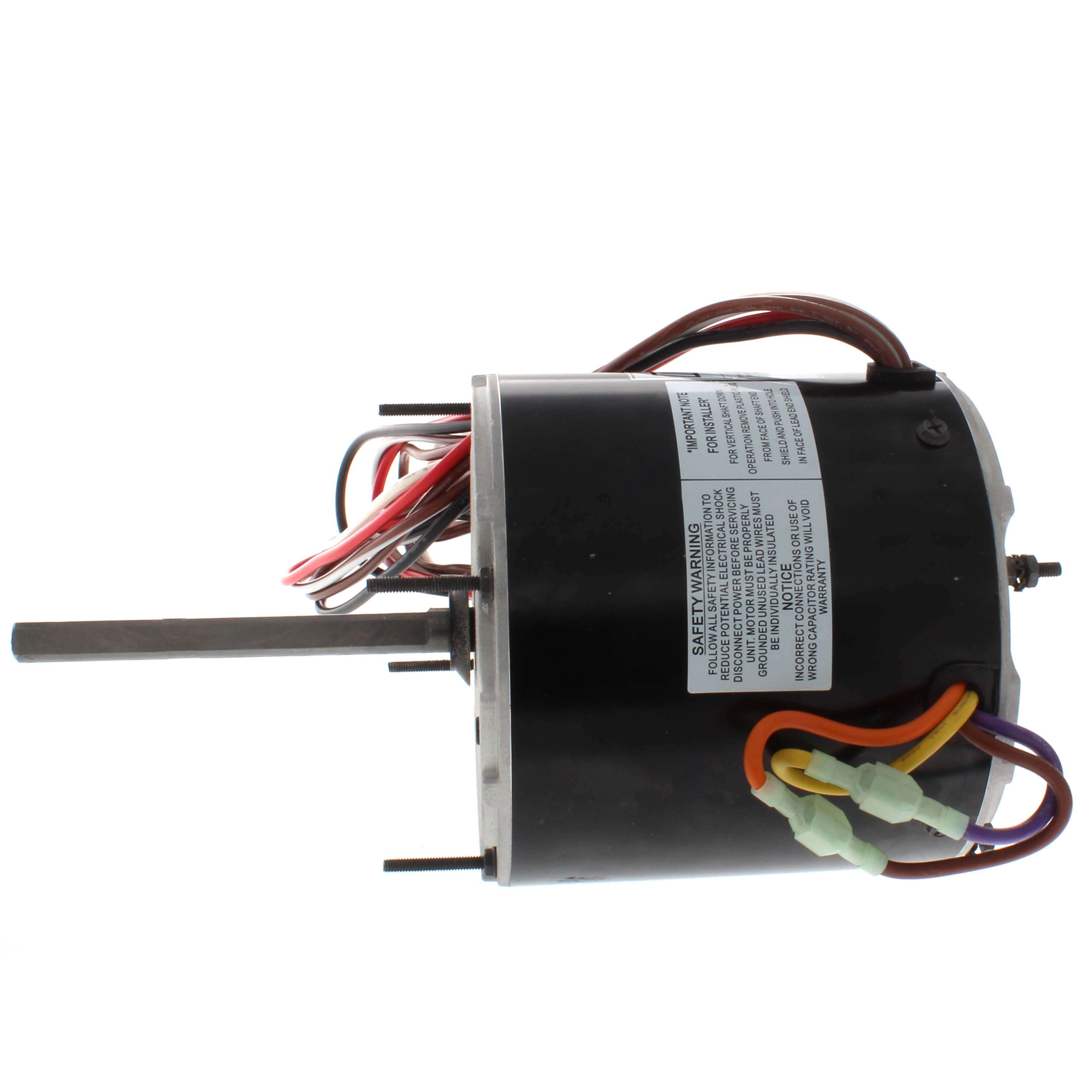

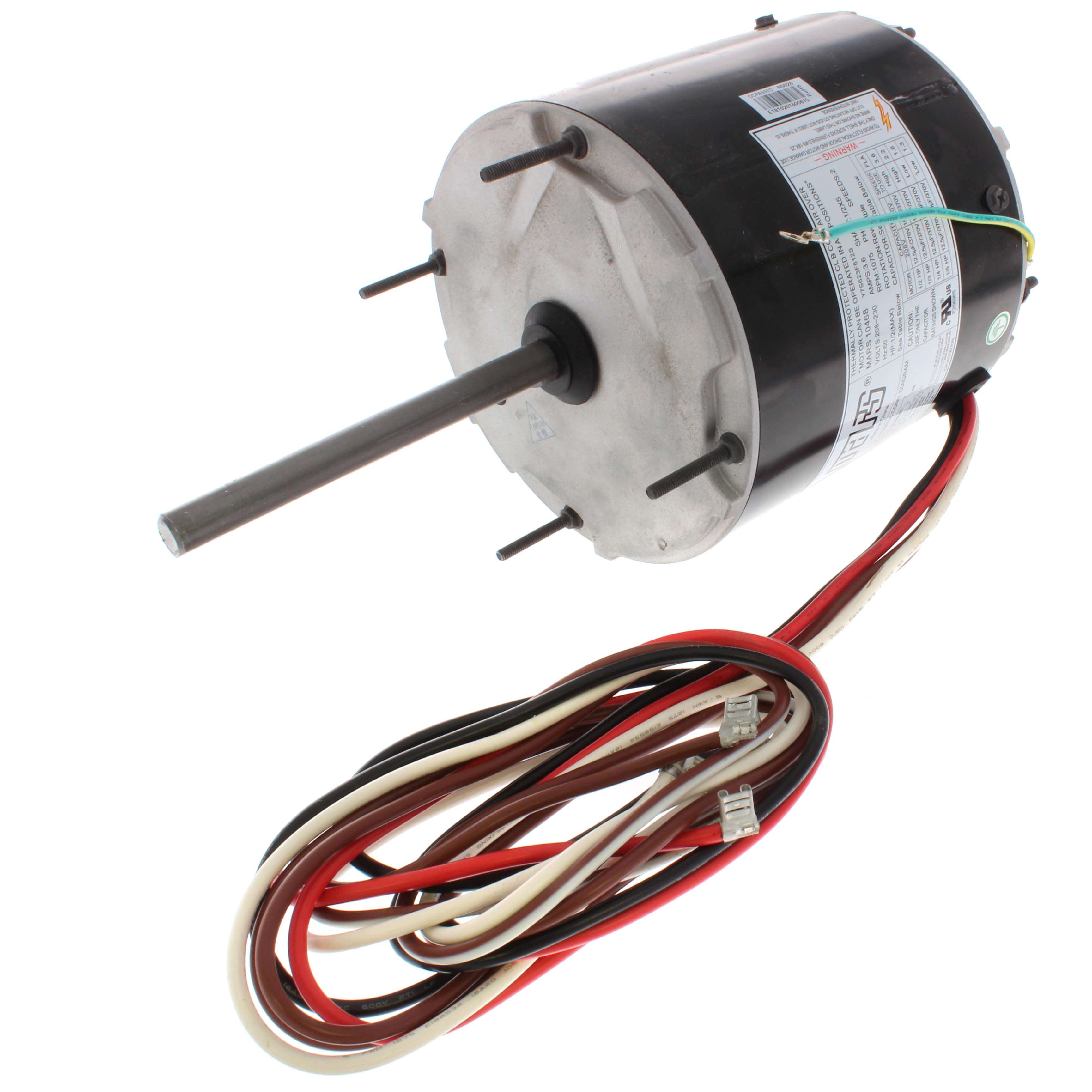

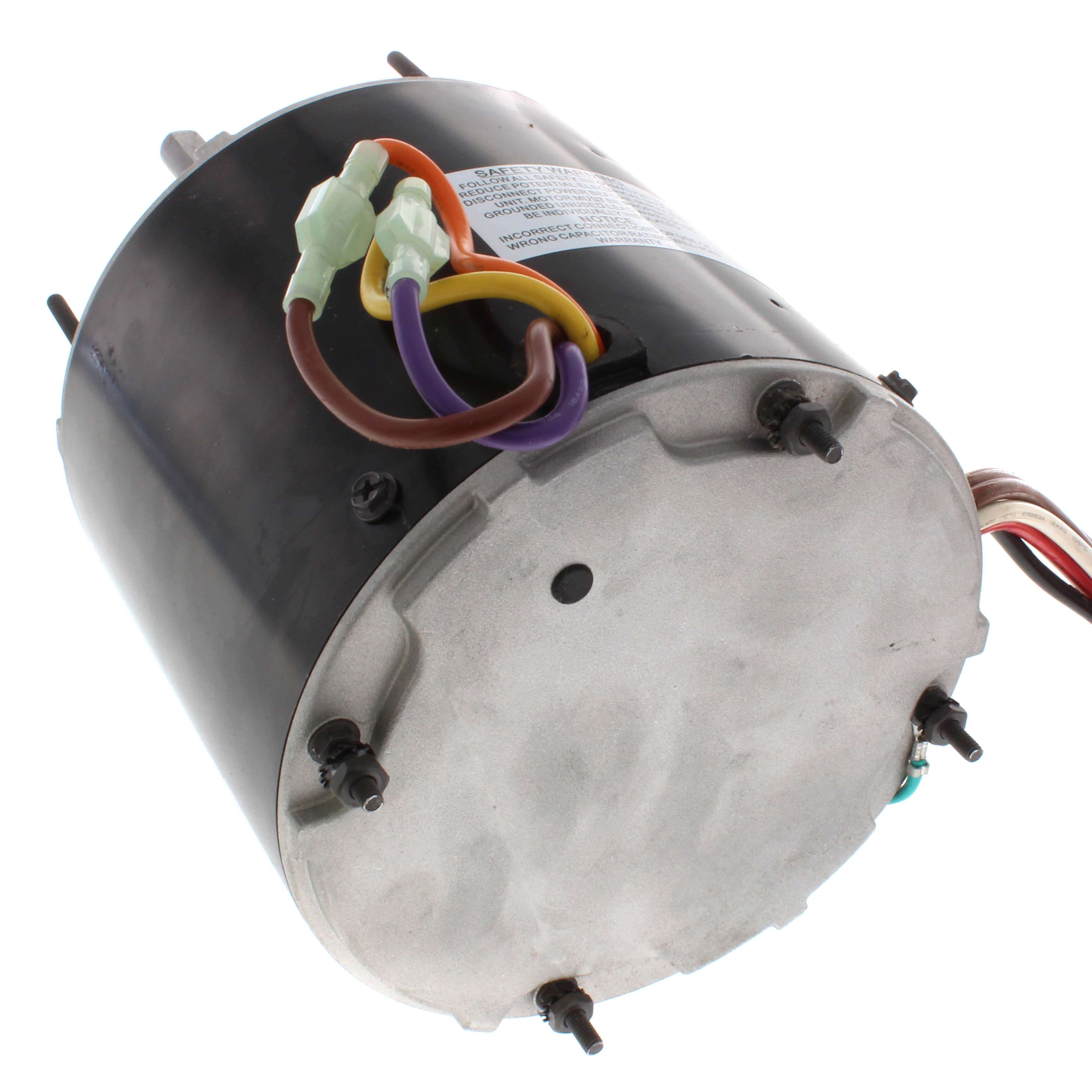

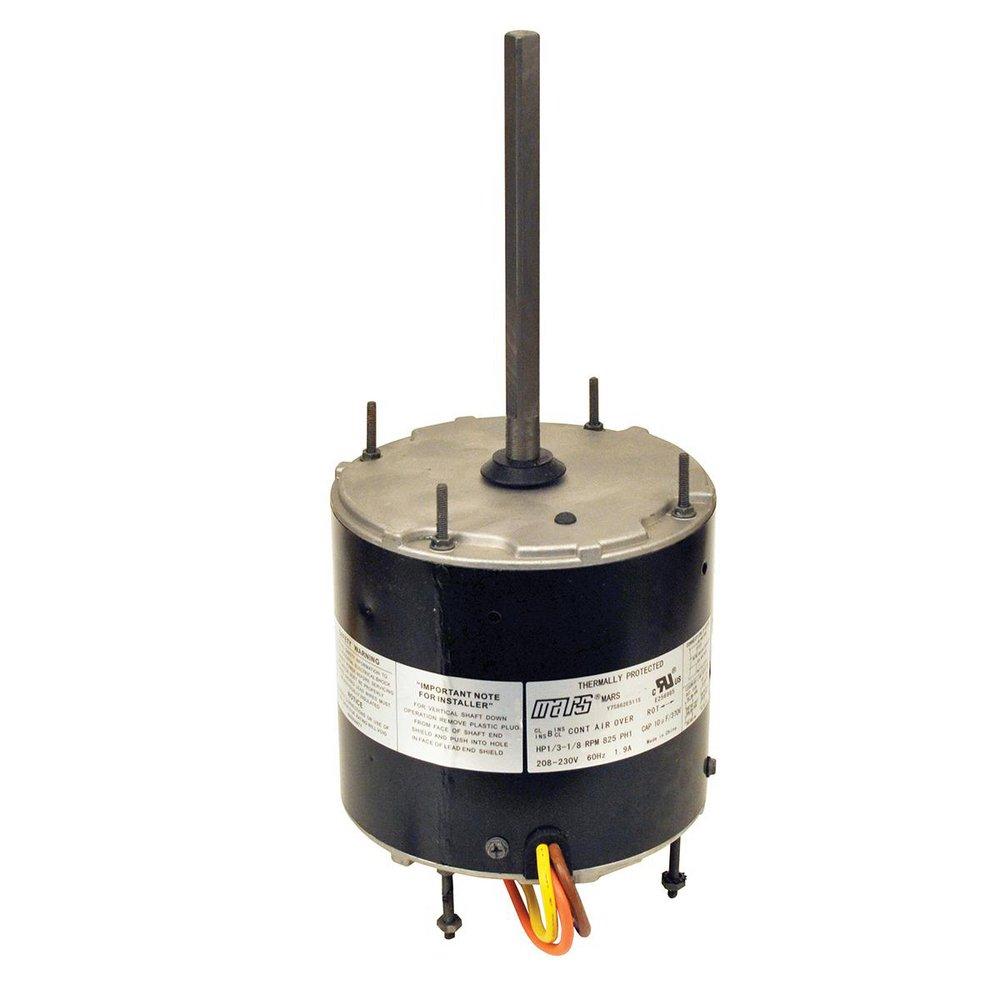

The Mars Condenser Fan Motor, model 10468, operates at two speeds and offers a range of one-fifth to one-half horsepower. This motor works effectively with 208 or 230 volts and runs at 1075 RPM. It is suitable for air conditioning and heat pump applications.
- Contains Rheem mounting holes with screws
- Designed for through bolt or band mounting methods
- Includes thermal overload protection for motor longevity
Product Highlights
This motor is ideal for HVAC projects requiring reliable and durable components.
Product Information
Standard Information
Technical Specifications
-
Performance RPM: 1075 RPM
-
Performance Horsepower: 1 HP
-
Electrical Data Voltage: 208/230 Volts
-
Electrical Data Frequency: 60 Hz
-
Electrical Data Phase: 1
-
Certifications UL Listed: Yes
-
Dimensions: 15 inches x 7.55 inches x 6.7 inches
-
Weight: 19.155 lbs
