MARS 10458 Mars 10458 1/6 to 1/3 HP 208 to 230V 2.8A 1-Phase 60 Hz PSC Condenser Fan Motor, 1075 rpm

Product Description

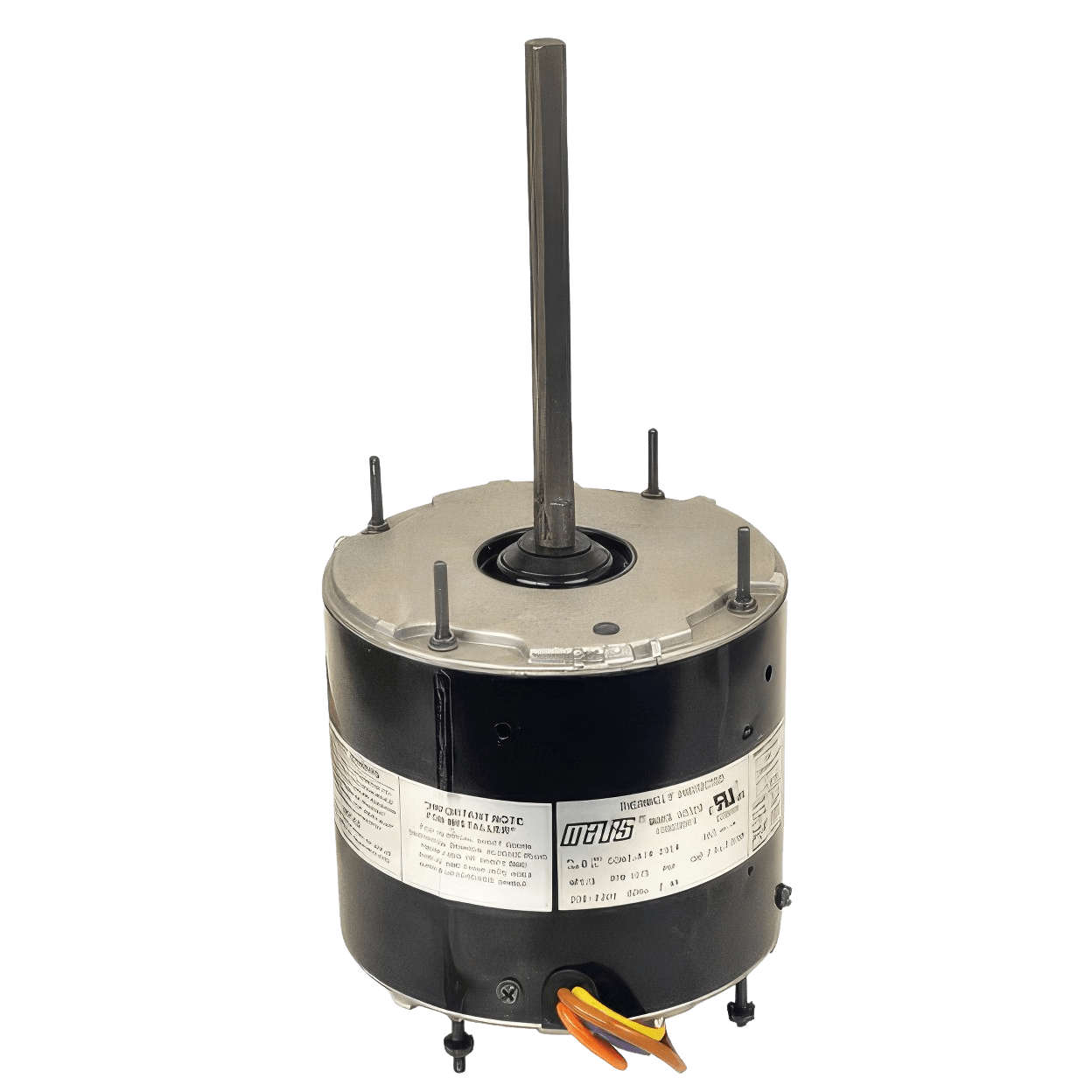

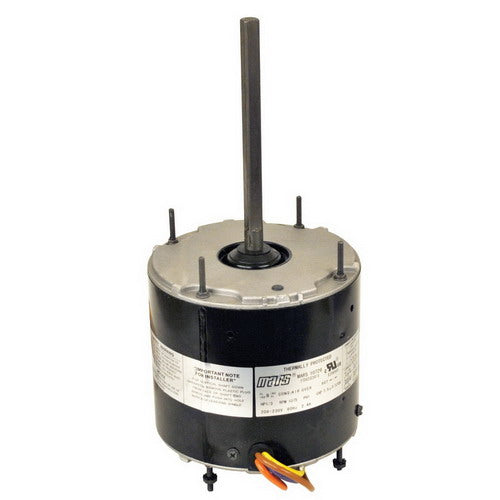

The MARS Motors and Armatures 10458 is a reliable condenser fan motor designed for HVAC applications. With a power range of one-sixth to one-third horsepower, this motor operates on voltages between two hundred eight to two hundred thirty volts. It is suitable for air conditioning and heat pump systems.

• Multi-horsepower capabilities
• Auto thermal protection for safe operation
• Reversible rotation for versatile installation

Product Highlights

Perfect for truck stock, this motor features a drip-proof enclosure and comes with all-angle mounting options.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: 10458

Technical Specifications

• Horse Power: 1/6 to 1/3 HP
• Voltage Rating: 208 to 230V
• Hertz: 60 Hz
• Phase: 1
• Ampere Rating: 2.8A
• Thermal Protection: Auto
• Mounting: All Angle
• Rotation: Reversible
• Ambient Temperature: 60 Deg C
• Insulation Class: Class B
• Shaft Diameter: 1/2 inch
• Shaft Length: 6.5 inch
• Overall Motor Length: 14.7 inch
• Capacitor Rating: 7.5/370 MFD
• Bearing: Ball
• Applications: Ideal for Truck Stock
• Standards/Approvals: cUL Listed
