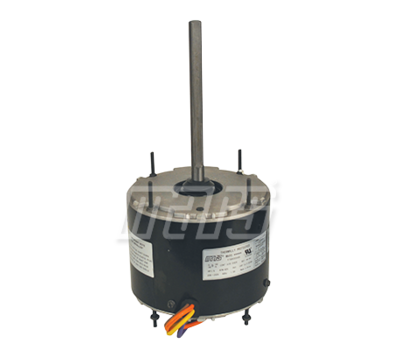

MARS 10412 Condenser Fan Motor 1/5 HP 208 to 230 V AC 1.3 Amp Reversible 825 RPM

Product Description

The MARS 10412 Condenser Fan Motor is engineered for optimal performance in both air conditioning and heat pump applications. This motor supports versatile positioning with its all-angle sleeve bearings and has a totally enclosed air over design for enhanced durability in outdoor environments.

• Reversible operation with 825 RPM and a power rating of 1/5 HP.
• Equipped with Rheem mounting holes and a water slinger on the shaft.
• Features thru bolt or band mounting options and double flatted shaft for secure installation.

Product Highlights

This motor is built to withstand the elements, featuring enclosed end shields with a weep hole for condensate draining.

Product Information

Standard Information

• Frame Size: 48
• Application: Air Conditioners and Heat Pumps

Technical Specifications

• Weight: 1 lb
• Body Length: 4.4 inches
• Shaft Length: 6.5 inches
• Body Diameter: 5.5 inches
• Mounting Type: Thru Bolt/All Angle
• Nameplate RPM: 825 RPM
• Current Rating: 1.3 amp
• Shaft Diameter: 0.5 inches
• Voltage Rating: 208 to 230 V ac
• Frequency Rating: 60 Hz
• Lead Wire Length: 36 inches
• Number Of Phases: 1
• Number Of Speeds: 1
• Horsepower Rating: 1/5 HP
• Specifications Met: cULus Listed
• NEMA Enclosure Type: Totally Enclosed Air Over (TEAO)
• Rotation Directions: Reversible
• NEMA Insulation Class: B
• Motor Thermal Protection: Auto
• Maximum Operating Temperature: 40 degrees F
