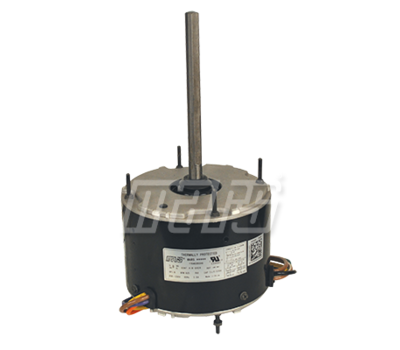

MARS 10411 1/8 HP 208 to 230 V AC Reversible PSC Condenser Fan Motor 825 RPM

Product Description

The Mars 10411 is a 1/8 HP 208 to 230 V AC Reversible PSC Condenser Fan Motor operating at 825 RPM. This motor is suitable for air conditioning and heat pump applications. It features all angle sleeve bearings that can handle shaft-up or shaft-down configurations. The motor's enclosed end shields offer weather protection, and each end shield has a weep hole to drain condensate.

• All angle sleeve bearings
• Rheem mounting holes with screws installed
• Water slinger on shaft

Product Highlights

This motor is great for air conditioning and heat pump applications. It has a double full flatted shaft and offers thru bolt or band mounting options.

Product Information

Standard Information

• Brand: Mars
• Model Number: 10411
• Application: Air Conditioners and Heat Pumps

Technical Specifications

• Weight: 1 lb.
• Frame Size: 48
• Body Length: 4.13 inches
• Shaft Length: 6-1/2 inches
• Body Diameter: 5-1/2 inches
• Mounting Type: Thru Bolt/All Angle
• Nameplate RPM: 825 RPM
• Current Rating: 0.8 amp
• Shaft Diameter: 1/2 inch
• Voltage Rating: 208 to 230 V AC
• Frequency Rating: 60 Hz
• Lead Wire Length: 36 inches
• Number Of Phases: 1
• Number Of Speeds: 1
• Horsepower Rating: 1/8 HP
• Specifications Met: cULus Listed
• NEMA Enclosure Type: Totally Enclosed Air Over (TEAO)
• Rotation Directions: Reversible
• NEMA Insulation Class: B
• Motor Thermal Protection: Auto
• Maximum Operating Temperature: 40 deg F
