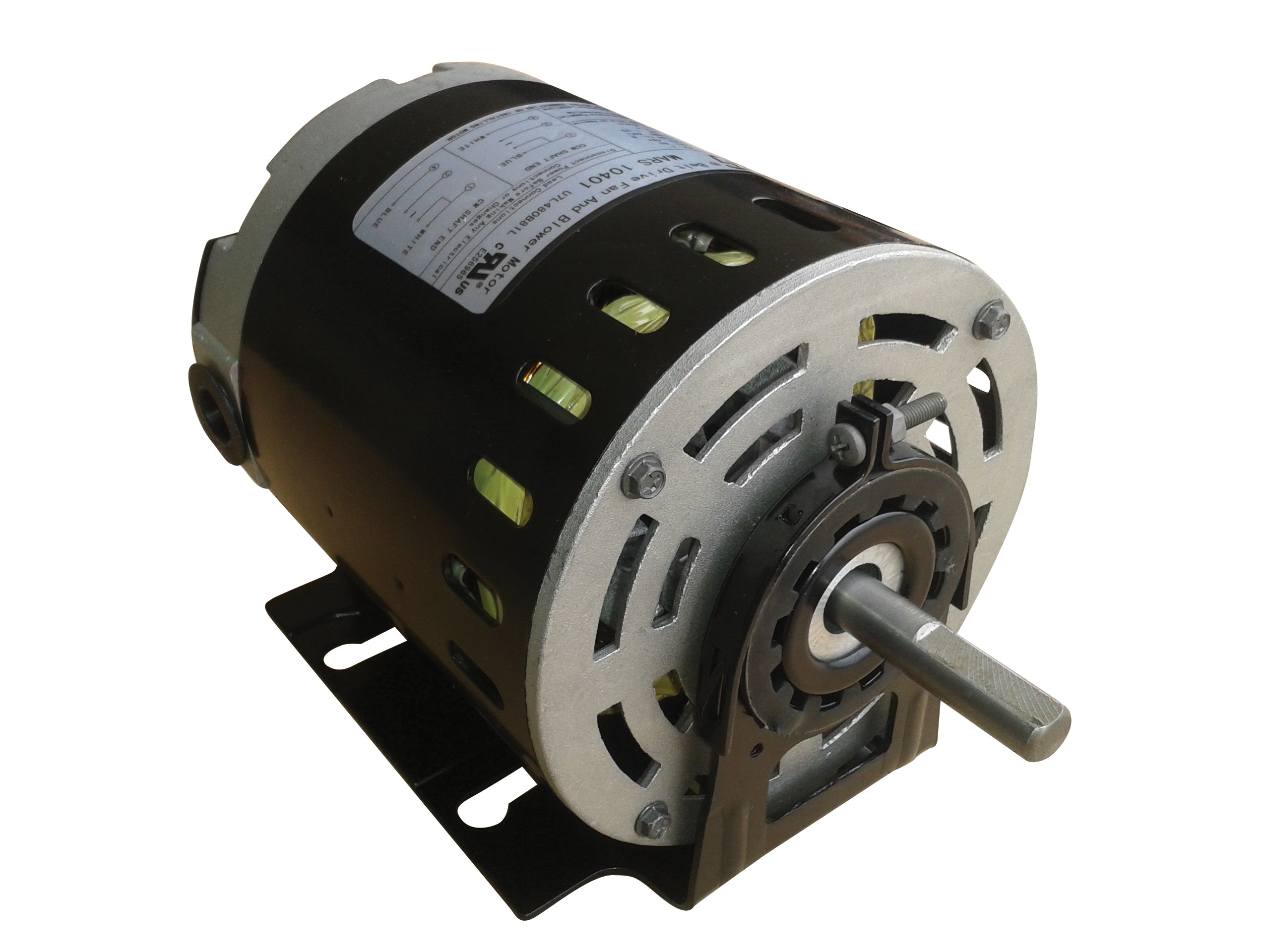

MARS 10406 M M 10406 BELT 115V 1/3HP 1725RPM BLT MOTOR GF2034

Product Description

The MARS 10406 is a belt motor designed for general HVAC applications. This electric motor operates at 115 volts and has a power rating of one-third horsepower at a speed of seventeen hundred twenty-five revolutions per minute. Ideal for various heating and cooling systems, it features a split phase design suitable for single-phase installations.

• Rated at 1/3 HP, operates at 115V.
• 1725 RPM for efficient performance.
• Constructed with a shaft diameter of 1/2 inch and a NEMA frame size of 48.

Product Highlights

This motor is built for reliability and consistent performance in HVAC systems. It ensures smooth operation and is reversible for flexibility in applications.

Product Information

Standard Information

• Manufacturer: MARS
• MPN: 10406

Technical Specifications

• Motor Type: Split Phase
• Number of Phases: Single
• Voltage: 115V
• Full Load Amperage (FLA): 5.8
• Speed: 1725 RPM
• Shaft Diameter: 1/2 inch
• Rotation: Reversible
• Weight: 15 lbs
