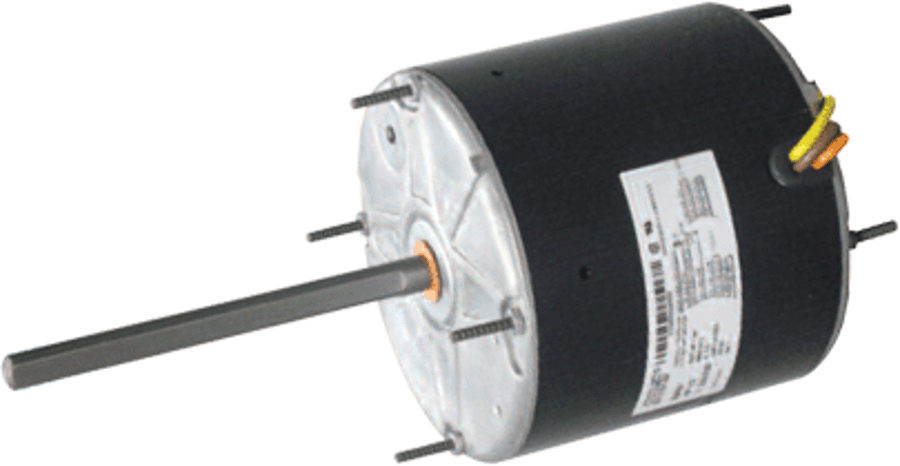

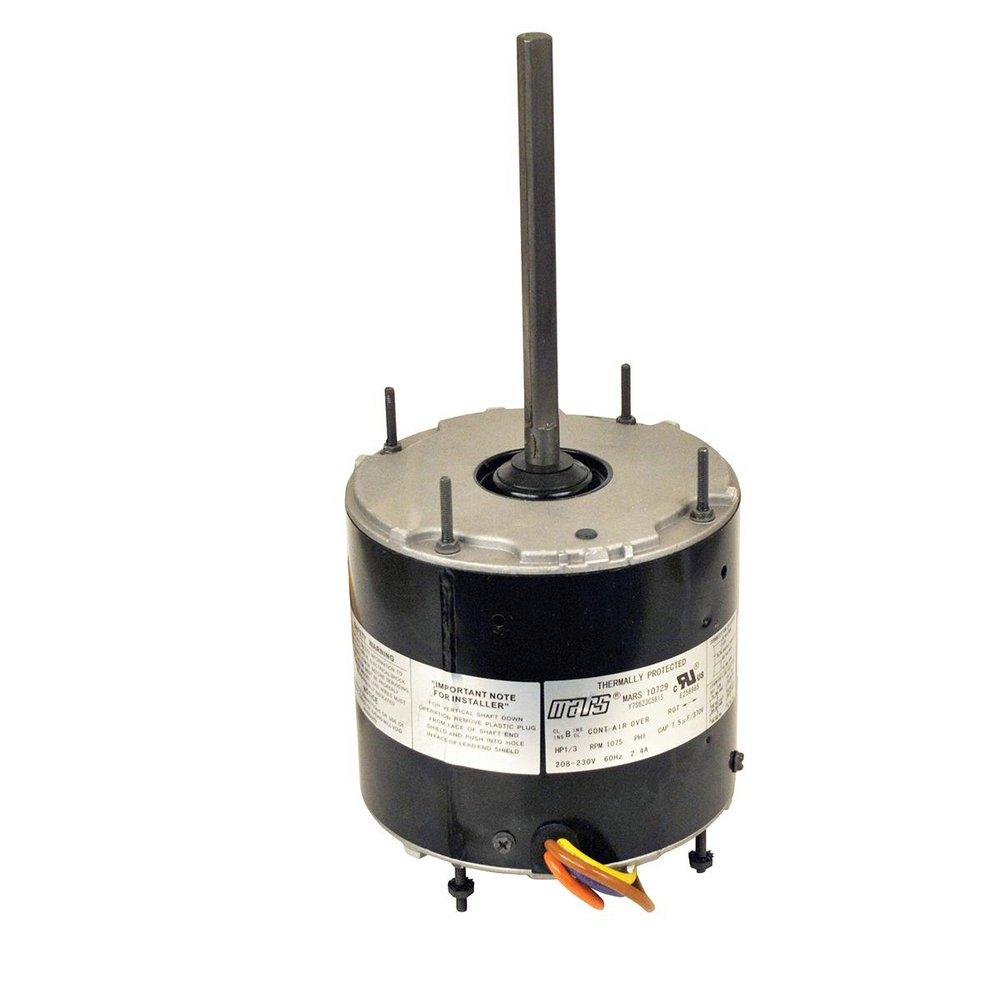

Mars 10405 Single Speed Condenser Fan Motor 1/3 HP 208/230 Volt 825 RPM

Product Description

The Mars 10405 is a single speed condenser fan motor designed for HVAC applications. This motor operates at one third horsepower and is suited for both shaft-up and shaft-down configurations. It meets the requirements for air conditioning and heat pump systems. The motor is built to withstand various environmental conditions with its weather-protected design.

• Weather protection with enclosed end shields
• Suitable for air conditioning and heat pump applications
• Capable of reversible rotation

Product Highlights

This motor features a weep hole for effective condensate drainage. The all-angle mount design ensures versatile installation options. The motor operates with thermal overload protection to enhance reliability.

Product Information

Standard Information

• Brand: Mars
• MPN: 10405

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 208/230 Volts
• RPM: 825 RPM
• Current Draw: 1.9 Amps
• Mount Type: All Angle
• Frequency: 60 Hz
• Phase: 1
• Speed: 1 Speed
• UL Listed: Yes
