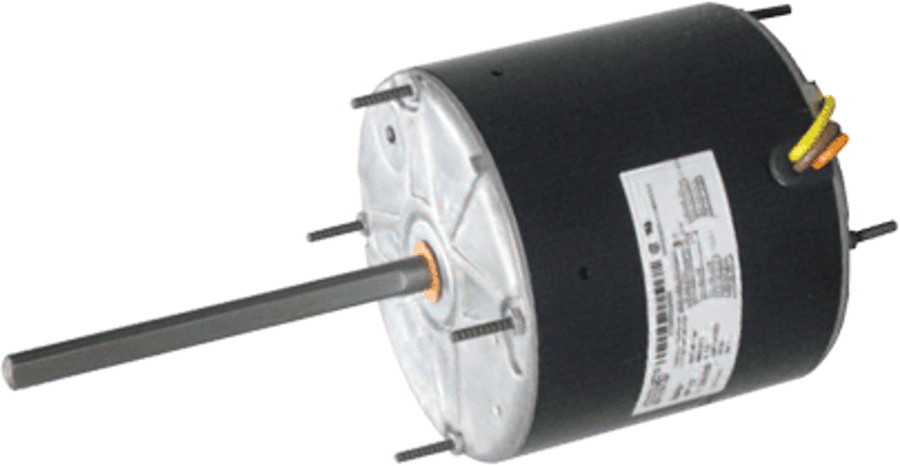

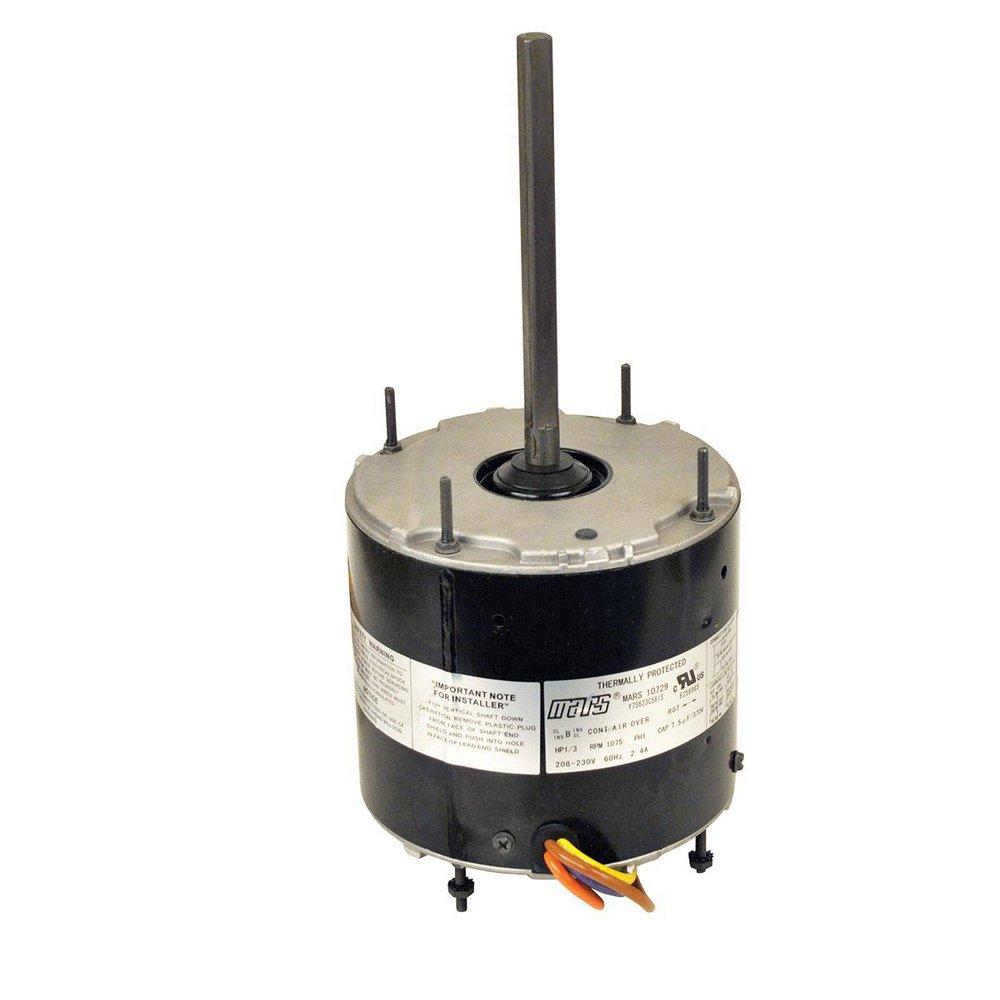

Mars 10404 Single Speed Condenser Fan Motor 1/4 HP 208/230 Volt 825 RPM

Product Description

The Mars Single Speed Condenser Fan Motor, MPN 10404, is designed for reliable operation in HVAC applications. This motor is suitable for replacement in air conditioning systems or heat pumps, equipped for both shaft-up and shaft-down installations. Its weather-resistant design features enclosed end shields and a weep hole for condensate drainage, enhancing its durability and functionality.

• All angle mount capability.
• Water slinger on shaft prevents moisture accumulation.
• Includes thermal overload protection for safety.

Product Highlights

This fan motor is essential for maintaining efficient airflow in HVAC systems.

Product Information

Standard Information

• Brand: Mars
• MPN: 10404

Technical Specifications

• Performance RPM: 825 RPM
• Horsepower: 1/4 HP
• Electrical Data Voltage: 208/230 Volts
• Electrical Data Phase: 1
• Electrical Data Frequency: 60 Hz
• Current Draw: 1.6 Amps
• Mount Type: All Angle
• UL Listed: Yes
