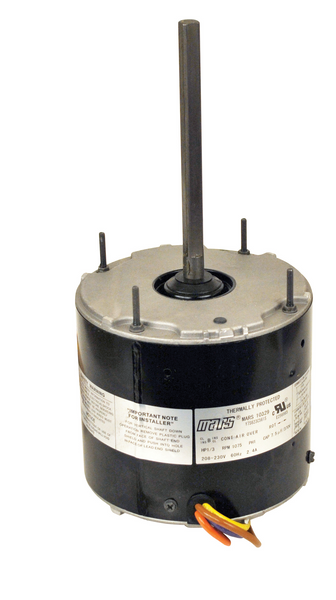

Mars 10331 3/4 HP Condenser Fan Motor 1075 RPM

Product Description

The MARS 10331 is a 3/4 HP condenser fan motor operating at 208-230V and 1075 RPM. It features a PSC motor type and a TEAO enclosure. Ideal for tradespeople and DIY enthusiasts seeking reliable performance in their cooling systems.

• Motor Type: PSC
• Enclosure: TEAO
• Rotation: Reversible

Product Highlights

This condenser fan motor offers 1-speed, 1-phase, reversible functionality with a robust 3/4 HP at 1075 rpm.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 10331
• Country of Origin: China

Technical Specifications

• Brand: MARS
• Horse Power: 3/4 HP
• Voltage: 208-230
• RPM: 1075 rpm
• Phase: Single
• Standards: UL/CSA
• Mount: Shaft Up
• Bearing: Sleeve
• Shaft Length Inches: 6.0
• Shaft Diameter: 1/2 inch
• Thermal Protection: Auto
• Ambient Deg C: 60
• Ins. Class: B
• Capacitor Included: No
• Capacitor Rating: 10/370
• Motor Type: PSC
• Enclosure: TEAO
• Speeds: 1
• Hz: 60
• Rotation: REV
• NEMA Frame Size: 48
• FLA: 5.2
• Voltage Rating: 208 to 230V
