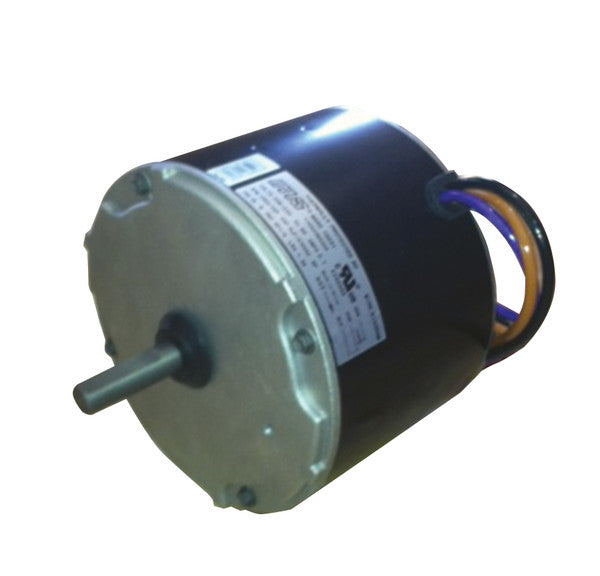

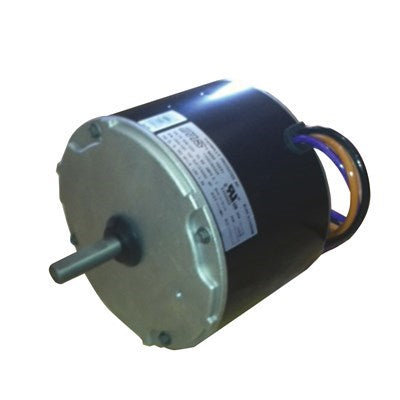

MARS 10234 1/10 HP Motor

Product Description

The MARS 10234 is a single-phase PSC motor designed for efficiency and reliability. This motor operates at a voltage of 208-230V and features a totally enclosed air over (TEAO) design for enhanced protection. It offers a maximum power output of 1/10 horsepower and runs at a speed of 1100 RPM, making it suitable for various applications.

• Single-phase operation
• Clockwise rotation
• Automatic thermal protection

Product Highlights

The MARS 10234 motor ensures smooth performance with its ball bearings and versatile mounting options.

Product Information

Standard Information

• Brand: MARS
• MPN: 10234

Technical Specifications

• Motor Type: PSC
• Enclosure: TEAO
• Horsepower (Max.): 1/10
• Voltage: 208-230
• Frequency: 60 Hz
• Number of Speeds: 1
• Rotation: CW
• RPM: 1100
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• Full Load Amps (FLA): 0.77
• Mounting Type: Thru Bolt/All Angle
• Bearing Type: Ball
• Shaft Length: 1.8 Inches
• Shaft Diameter: 1/2 Inches
• Thermal Protection: Auto
• Ambient Temperature: 60 Deg C
• Insulation Class: Class B
• Capacitor Included: No
• Capacitor Rating: 5/370
