Mars 06005 Evergreen 06005 1-5 - 1/2 hp 115/230 V 1070 Rpm

Product Description

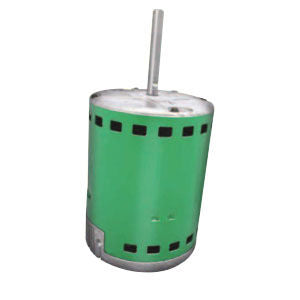

The Mars Evergreen 06005 is a direct drive blower motor designed for HVAC applications. This motor operates at one-fifth to one-half horsepower and can run on 115 or 230 volts. It also runs at 1070 RPM and features a 48 frame size.

• Designed for heating and cooling systems
• Five-speed selections for customized airflow
• Efficient and reliable operation with minimal maintenance

Product Highlights

This blower motor optimizes HVAC performance through its efficient design and operational versatility.

Product Information

Standard Information

• Product Type: SME, Direct Drive
• Manufacturer: Mars

Technical Specifications

• Frame Size: 48
• Horsepower Rating: 1/5 - 1/2 hp
• Voltage Rating: 115/230 V
• Efficiency: 80%
• Speed: 1070 RPM
• Mounting Type: Horizontal
• Shaft Size: 1/2 Inch Dia x 8.37 Inch L
• Bearing Type: Ball
• Insulation Type: Class B
• Number of Speeds: 5
• Rotation Type: CW/CCW
• Mounting Position: All Angle
• Enclosure Type: Open
• Frequency Rating: 50/60 Hz, 1 Phase
