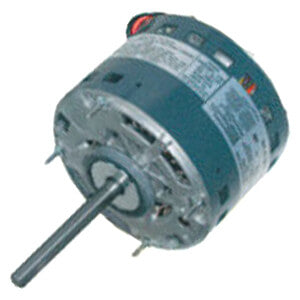

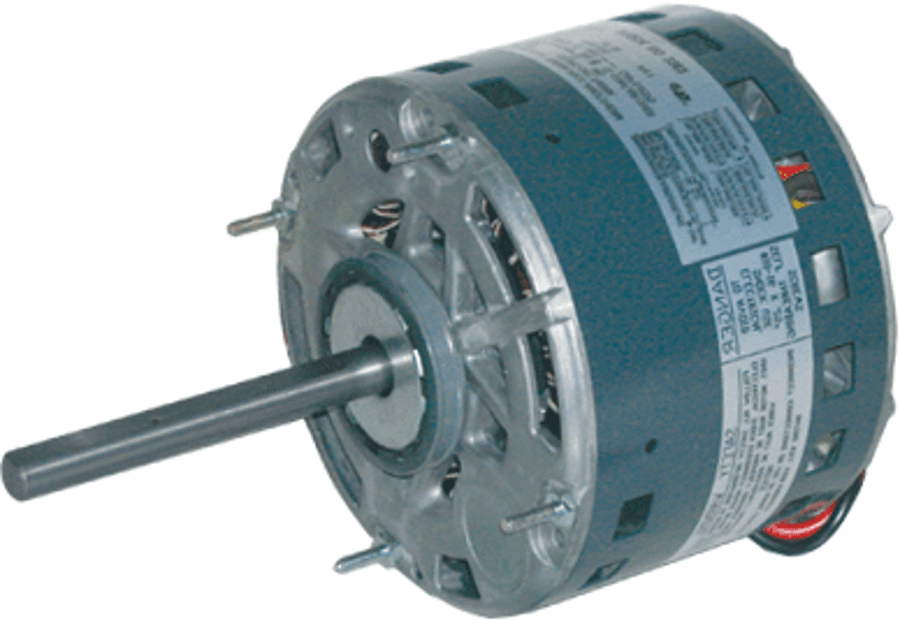

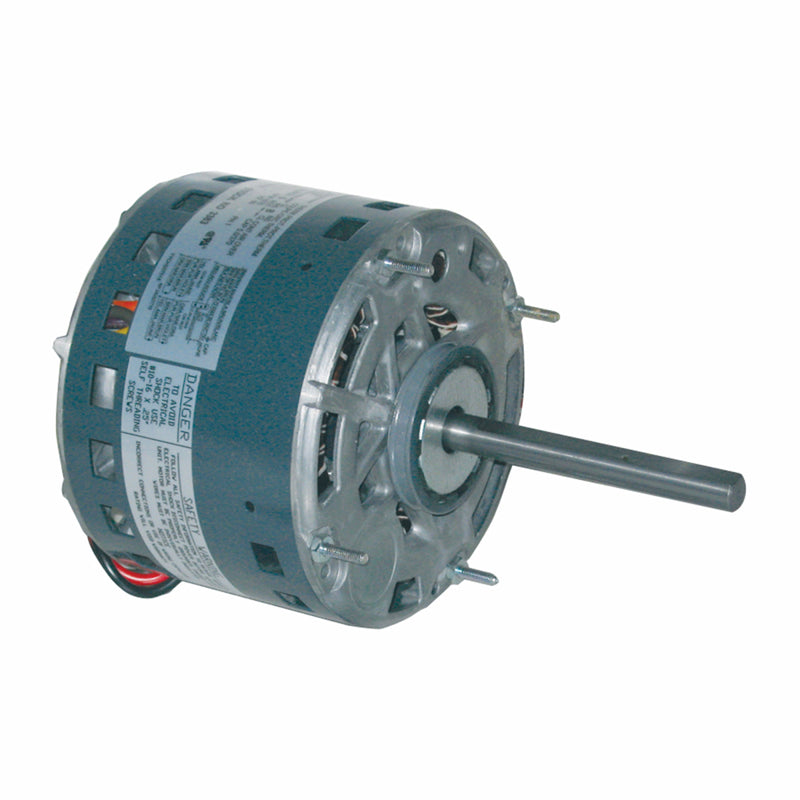

Mars 03587 Blower Motor 1/2 Horsepower 115 Volt 1075 Revolution per Minute

Product Description

The MARS 03587 blower motor is a direct drive permanent split capacitor motor with 1/2 horsepower and a voltage of 115V. It features a reversible rotation and a speed of 1075 RPM, operating at 50/60 Hz and 1 phase. Designed for use in furnaces, this motor has an open air over enclosure and all angle mounting.

• Reversible rotation for flexible installation
• Operates at 1075 RPM for efficient air circulation
• Open air over enclosure for cooling

Product Highlights

This 1/2 HP blower motor is designed for direct drive furnace blower applications. It features reversible rotation, multiple speeds, and all-angle mounting.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 03587

Technical Specifications

• Brand: Mars
• Product Type: Direct Drive Permanent Split Capacitor
• Horsepower: 1/2HP
• Voltage: 115V
• Rotation: Reversible
• Speed: 1075RPM
• Frequency: 50/60HZ
• Phase: 1
• Amperage: 9A
• Diameter: 5-1/2IN
• Type: Blower Motor
• Sub-Type: PSC
• Enclosure: Open Air Over
• Application: HVAC
• Bearings: Sleeve
• Overload protection: Fan duty, continuous, air over
• Class B insulation: B
• Amperage Rating: 9 A
• Bearing Type: Sleeve
• Drive Type: Direct
• Duty Type: Continuous
• Frame Size: 48
• Frequency Rating: 60 Hz
• HP Rating: 1/2 hp
• Insulation Class: B
• Motor Enclosure Type: Open Air Over
• Mounting Type: All Angle
• Number of Poles: 6
• Number of Speeds: 3
• Shaft Size: 1/2 in Dia x 4 in L
• Speed Rating: 1075 rpm
• Suitable For Use With: Furnaces
• Temperature Rating: 40 deg C Ambient
• Voltage Rating: 115 V
• Frame: 48
• Enclosure Type: OAO
• Motor Class: Class B
• Motor Type: PSC
• Length: 14 in
• Motor Bearing: Sleeve
• Width: 6.8 in
