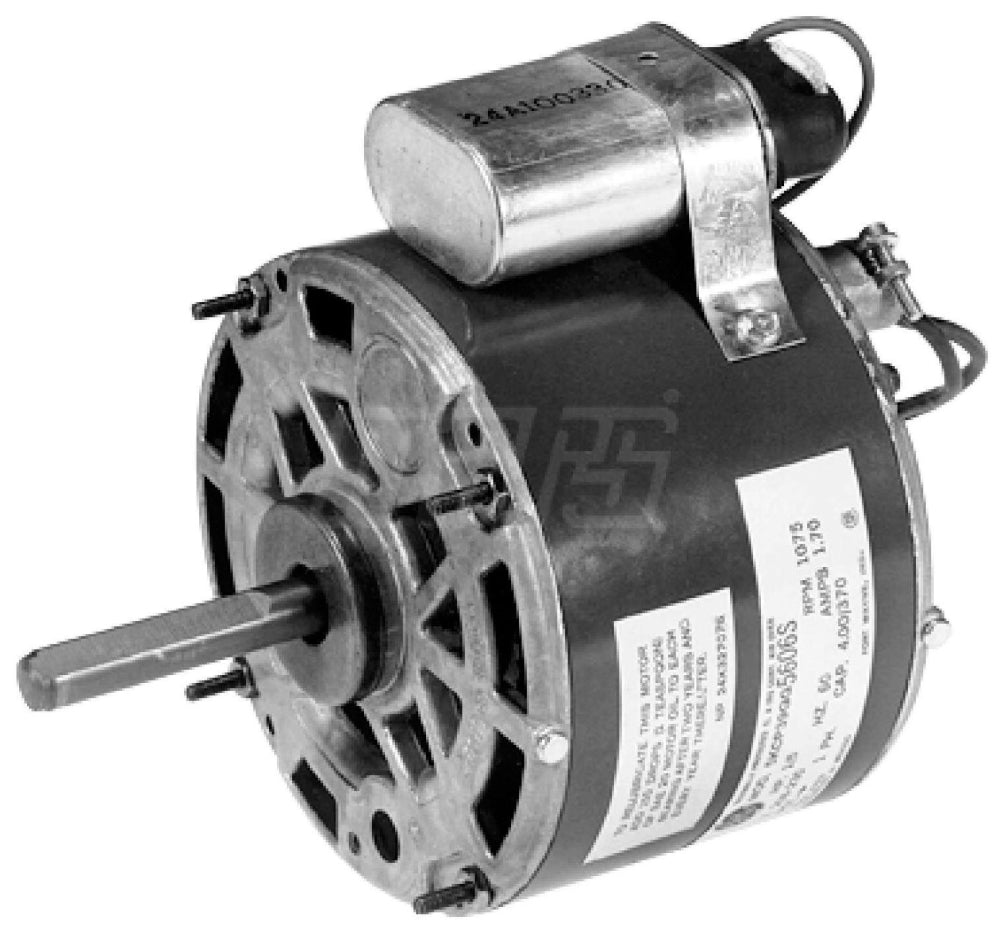

Mars 03012 1/5 HP Refrigeration Fan Motor 208 to 230 VAC 1-Phase

Product Description

The Mars Motors & Armatures model 03012 is a refrigeration fan motor designed for reliable operation in HVAC applications. This motor operates at one-fifth horsepower and supports voltages from two hundred eight to two hundred thirty volts AC in a single phase.

• Enclosed shell design for protection
• Speed rating of one thousand seventy-five RPM
• Permanent split capacitor for efficient performance

Product Highlights

This motor is suitable for all-angle mounting and features a sleeve bearing for smooth operation. It is ideal for refrigeration units and other cooling applications.

Product Information

Standard Information

• Brand: Mars Motors & Armatures
• Power Rating: 1/5 HP

Technical Specifications

• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 1.68 Amp
• Speed Rating: 1075 RPM
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting Type: All Angle/Through Bolt
• Application: Refrigeration
