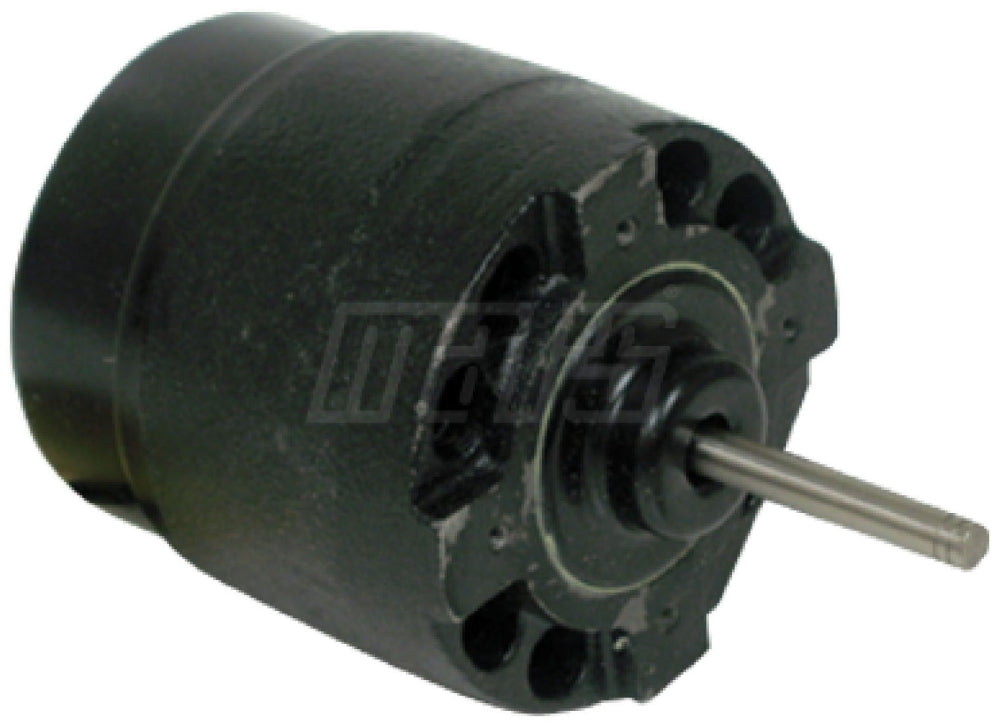

Mars Motors & Armatures 01336 1/20 HP, 230 VAC 1-Phase Refrigeration Fan Motor

Product Description

The Mars Motors & Armatures 01336 is a refrigeration fan motor with a power rating of one-twentieth horsepower. This motor operates at a voltage of two hundred thirty volts alternating current and is designed for one-phase systems. It features a speed of one thousand five hundred fifty RPM and is suitable for various refrigeration applications.

• Power Rating: 1/20 HP
• Voltage Rating: 230 VAC, 1-Phase
• Speed Rating: 1550 RPM

Product Highlights

The Mars Motors & Armatures 01336 is equipped with thermal protection for safety and has a sturdy cast iron frame. The motor is designed for open enclosure use and provides efficient cooling through its shaded pole construction.

Product Information

Standard Information

• Manufacturer: Mars Motors & Armatures
• ENclosure Type: Open

Technical Specifications

• Power Rating: 1/20 HP
• Voltage Rating: 230 Volt AC, 1-Phase
• Frequency Rating: 50/60 Hertz
• Motor FLA: 1.1 Amp
• Speed Rating: 1550 RPM
• Insulation Class: B
• Frame Material: Cast Iron
• Mounting: Horizontal, Shaft Down, End
• Application: Refrigeration
• Approval: UL, CSA
• Type: Shaded Pole
• Rotation Type: Clockwise
• Size: 4 Inch Diameter
• Shaft Size: 3/8 Inch Diameter x 2.56 Inch Length
• Ambient Temperature Rating: 125 Deg C
