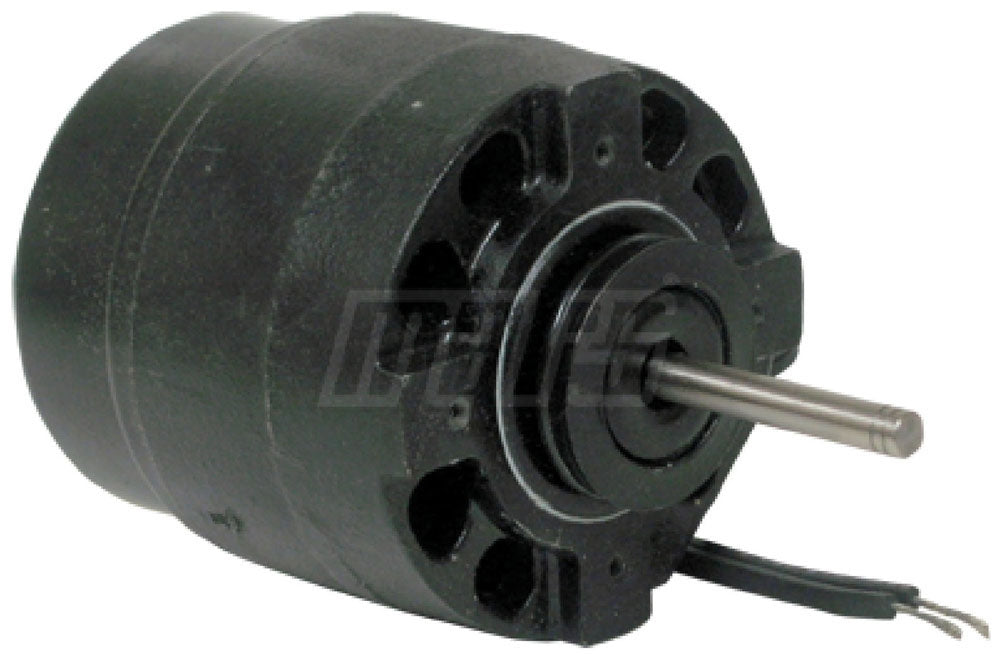

Mars 01332 1/20 HP 208 to 230 VAC 60 Hz 1.1 A Refrigeration Fan Motor

Product Description

The Mars Motors & Armatures 01332 is a refrigeration fan motor designed for efficiency. This motor operates on a power rating of 1/20 horsepower and is suitable for voltage ratings of 208 to 230 volts AC. It functions at a frequency rating of 60 hertz and achieves a speed rating of 1550 revolutions per minute. The motor features a single-speed design and is classified under NEMA frame size 11, making it ideal for various refrigeration applications.

• Open enclosure type
• Insulation class B
• Mounting position: horizontal and shaft down

Product Highlights

This fan motor is approved by UL, UR, and CSA. It includes an overload protection feature and utilizes a shaded pole design for reliable performance.

Product Information

Standard Information

• Power Rating: 1/20 HP
• Voltage Rating: 208 to 230 VAC

Technical Specifications

• Speed Rating: 1550 RPM
• Enclosure Type: Open
• NEMA Frame Size: 11
• Operating Frequency: 60 Hz
• Motor FLA: 1.1 A
• Insulation Class: B
• Frame Material: Cast Iron
• Temperature Rating: 125 Deg C
