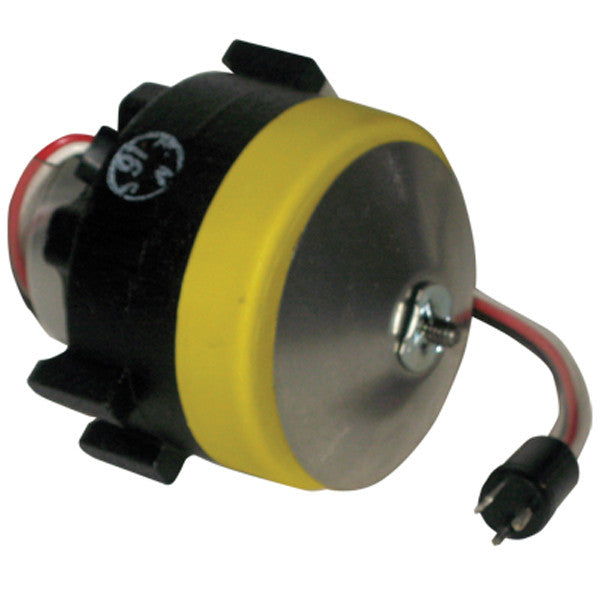

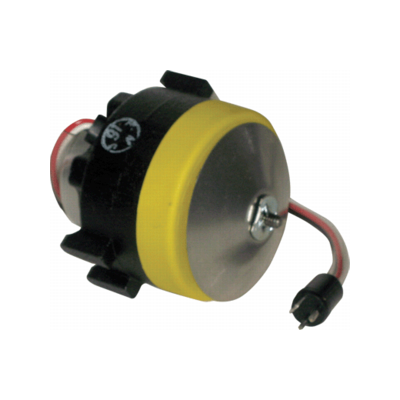

MARS 00117 Unit Bearing Motor 9 Watt

Product Description

The MARS 00117 is a 9-watt, single-phase PSC motor built for unit bearing installation. This motor functions on 115V power and operates at a frequency of 60Hz, achieving a nominal speed of 1550 RPM. It supports both clockwise and counter-clockwise rotation and includes internal thermal protection. The design features Class A insulation and meets UL/CSA standards.

• Motor Type: PSC (Permanent Split Capacitor)
• Rotation: Clockwise/Counter-Clockwise
• Includes internal capacitor

Product Highlights

Product Information

Standard Information

• Voltage: 115V
• Frequency: 60 Hz

Technical Specifications

• Motor Type: PSC
• Power: 9 Watt
• Speed: 1550 RPM
• Rotation: CW/CCW
• Phase: Single
• Mounting Type: Unit Bearing
• Shaft Length: 0.425 inches
• Shaft Diameter: 1/4 inches
• Thermal Protection: Yes
• Operating Temperature: 40°C
• Insulation Class: Class A
• Enclosure: TEAO
• Standards: UL/CSA
• Full Load Amperage (FLA): 0.26
• Capacitor Included: Internal
• NEMA Frame Size: 51
• Length: 6.60 inches
• Width: 4.30 inches
• Height: 4.20 inches
• Weight: 3.0500 lbs
• Harmonized Tariff Code: 8501106020
