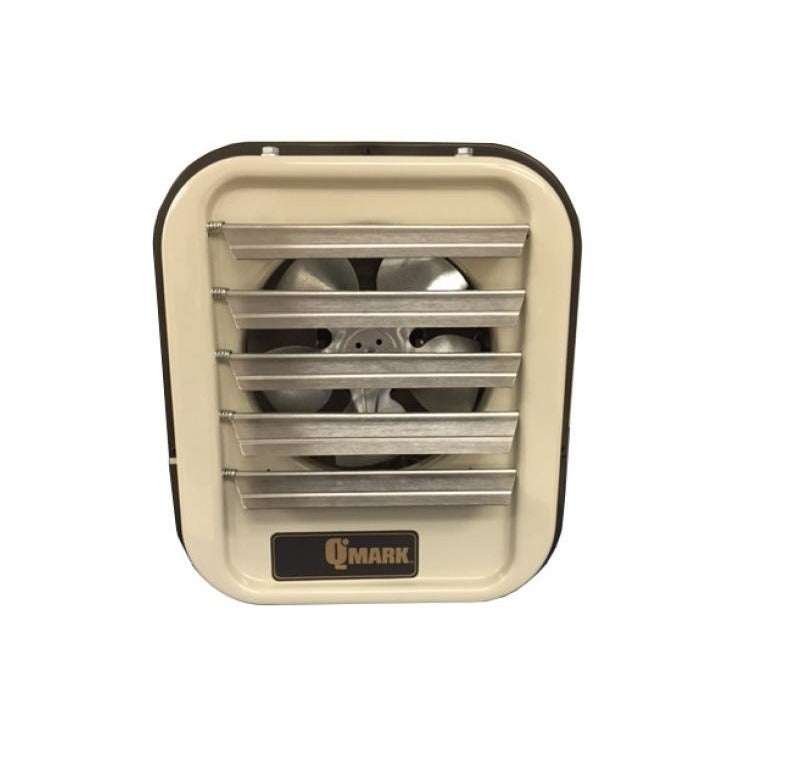

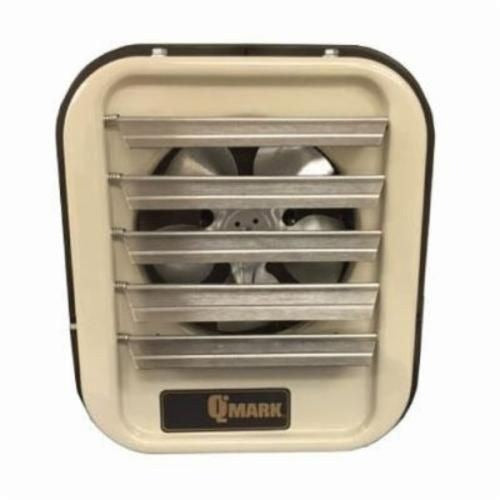

Marley Engineered Products MUH102 Qmark Unit Heater 10 kW (1-3 Phase) QMKMUH102

Product Description

Marley Engineered Products MUH102 is an electric unit heater rated 7.5/10 kW for 208/240 VAC and 1–3 phase operation. It provides up to 650 CFM using an enclosed, two-speed fan (1600 rpm) and aluminum-finned, copper-clad steel sheath heating elements. The unit includes pull-through airflow, adjustable discharge louvers, fan delay, and an automatic reset linear thermal cut-out. It mounts vertically or horizontally for commercial and industrial heating applications.

• 7.5/10 kW output, 208/240 VAC, 1–3 phase; 650 CFM airflow; 36/42 A amperage
• Heavy-gauge die-formed steel housing with polyester powder coat finish and aluminum-finned, copper-clad steel sheath heating elements; dimensions 19 in W x 7.5 in D x 21.75 in H; weight 38 lb
• Enclosed two-speed fan (1600 rpm) with fan delay; automatic reset linear thermal cut-out (capillary type); 24 V contactor coil; AWG 6 wire size; cULus and UL Listed

Product Highlights

Electric unit heater, 7.5/10 kW, 208/240 VAC, 1–3 phase; 650 CFM; enclosed 2-speed fan; adjustable louvers; cULus/UL listed.

Product Information

Standard Information

• Brand: MARLEY ENGINEERED PRODUCTS
• Manufacturer Part Number: MUH102
• Country of Origin: United States
