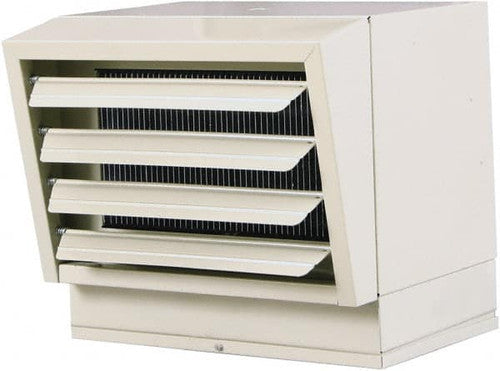

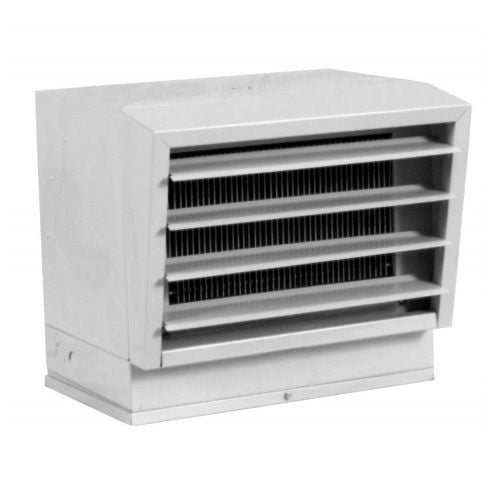

Marley Engineered Products IUH1048 Industrial Unit Heater 10 KW 480 V 18 inches Wide x 17-1/2 inches Deep x 18 inches High

Product Description

The MARLEY ENGINEERED PRODUCTS IUH1048 is an industrial unit heater designed for efficient space heating. This electric suspended heater operates at 480 Volts with a 10 KW (10,000 Wattage) output, providing a maximum BTU rating of 34,100. It supports single and three-phase power, suitable for various industrial applications. Featuring horizontal and downflow air distribution, it delivers 500 CFM airflow with a 20 ft horizontal throw. Its compact 18" W x 17.5" D x 18" H dimensions allow for ceiling mount installation.

• Operates at 480 Volts with 10,000 Wattage, supporting single and three-phase electrical systems.
• Delivers a maximum heating capacity of 34,100 BTU/h with 500 CFM airflow and 20 ft horizontal throw.
• Designed for ceiling mount installation, featuring horizontal and downflow air distribution and cULus listing.

Product Highlights

Industrial unit heater with 34,100 BTU/h, 10,000 Wattage, 480V 1-3 phase operation, and cULus listing.

Product Information

Standard Information

• Brand: MARLEY ENGINEERED PRODUCTS
• Manufacturer Part Number: IUH1048

Technical Specifications

• Heater Type: Horizontal/Downflow Unit
• Heating Capacity: 34100 BTU/h
• Phase: Single, Three
• Voltage: 480 Volts
• Wattage: 10000 Watts
• Air Flow: 500 CFM
• Height: 18 Inch
• Length: 17-1/2 Inch
• Width: 18 Inch
• Depth: 17-1/2 Inch
• Maximum Amperage: 12.80 Amps
• Air Temperature Rise: 63 F
• Horizontal Air Throw: 20 ft
• Housing Color: Neutral Gray
• Mount Type: Ceiling
• Certifications: cULus Listed
