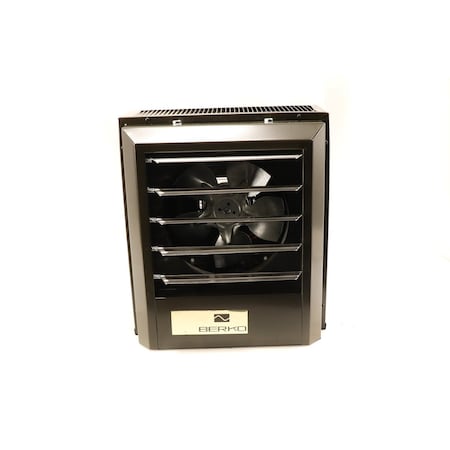

MARLEY ENGINEERED PRODUCTS Marley Engineered Products HUHAA524 208/240V 3.7/5 kW Horizontal/Vertical Heater
MARLEY ENGINEERED PRODUCTS Marley Engineered Products HUHAA524 208/240V 3.7/5 kW Horizontal/Vertical Heater

Marley Engineered Products HUHAA524 208/240V 3.7/5 kW Horizontal/Vertical Heater

MARLEY ENGINEERED PRODUCTS
Brand: MARLEY ENGINEERED PRODUCTS
SKU: HUHAA524
Availability: In Stock

Ships same day if ordered by 12 pm
$961.83
$961.83
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Marley Engineered Products HUHAA524 is a 208/240V unit heater rated 3.7 kW/5 kW for horizontal or vertical surface mounting. It provides forced-air heating with a 350 cfm airflow driven by a 1,600 rpm fan motor and operates at approximately 18/21 A depending on voltage. Construction uses 20-gauge steel with polyester powder coat and an aluminum-finned, copper-clad steel sheath heating element. A 24V control transformer and automatic reset thermal cut-out are provided on most models.

  • Input voltage 208/240 V; selectable power 3.7 kW or 5 kW; phase: 1 or 3-phase, 18/21 A
  • Airflow 350 cfm driven by 1,600 rpm enclosed fan motor; pull-through airflow design with venturi outlet for vertical install
  • 20-gauge steel construction with polyester powder coat; aluminum-finned copper-clad steel sheath element; automatic reset linear thermal cut-out

Product Highlights

208/240V, 3.7/5 kW horizontal or vertical surface-mount unit heater with 350 cfm airflow

Product Information

Standard Information

  • Brand: MARLEY ENGINEERED PRODUCTS
  • Manufacturer Part Number: HUHAA524
  • Country of Origin: Mexico
Technical Specifications
Brand
Marley Engineered Products
MPN
HUHAA524
Input Voltage
208/240 V
Power
3.7 kW / 5 kW
Phase
1 or 3-Phase
Input Current
18/21 A
Air Flow
350 cfm
Motor Speed
1600 rpm
Temperature Rise
45 �F
Mounting Type
Horizontal or vertical; surface mount
Recommended Mounting Height
8 ft horizontal / 9 ft vertical
Construction
20 gauge steel (18 gauge on larger cabinets), polyester powder coated
Finish
Bronze, polyester powder coat
Heating Element
Aluminum-finned, copper-clad steel sheath
Control Transformer
24V standard on most models (line voltage controls on some models)
Thermal Protection
Automatic reset linear thermal cut-out (capillary type)
Dimensions (W x D x H)
14 in x 8.5 in x 16 in
Weight
20.52 lb
Country of Origin
Mexico
Fan
Completely enclosed fan motor; 2-speed motor; optional fan-only switch on select units
Airflow Design
Pull-through airflow; venturi outlet for added throw in vertical position
Safety/Service Features
Branch circuit fusing where required; individually adjustable louvers
