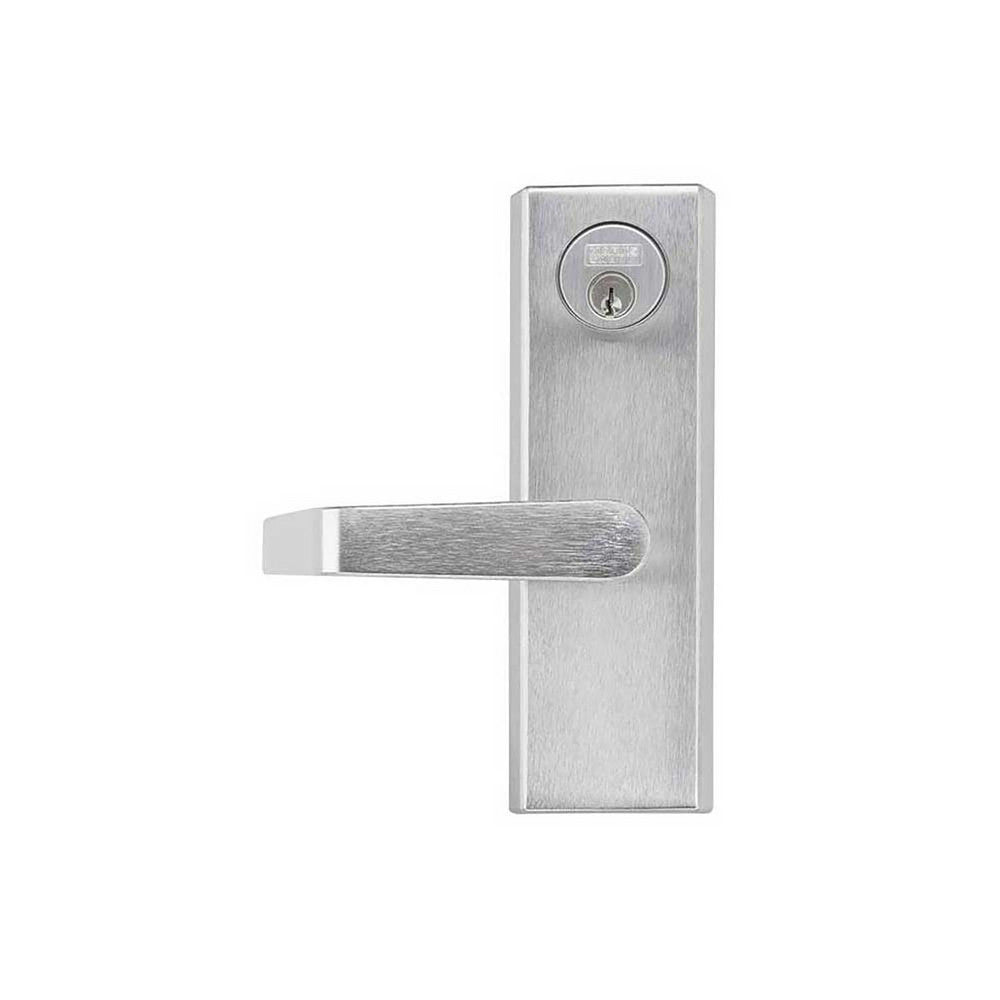

Marks Hardware MESC350A/26D Entry Narrow Escutcheon Lever Trim for M8800 Series Exit Device

Product Description

The Marks Hardware MESC350A/26D is designed as an entry narrow escutcheon lever trim specifically for the M8800 Series exit devices. This trim includes a cylinder that can lock or unlock the lever, keeping it rigid when locked and retracting the latch bolt when unlocked. The trim suits narrow stile exit devices and incorporates a thru bolt design. It is field reversible for non-handed operation and adheres to ADA requirements - A117.1 Accessibility Code.

• Cylinder locks or unlocks lever, rigid when locked; retracts latch bolt when unlocked
• Designed for use with narrow stile exit devices (M8800 Series)
• Non-handed design, easily field reversible

Product Highlights

The MESC350A/26D trim is ideal for professionals seeking a reliable entry solution for heavy-duty applications.

Product Information

Standard Information

• Brand: Marks USA
• Finish: US26D (626) Satin Chrome

Technical Specifications

• Usage: Heavy Duty
• ANSI Grade: ANSI Grade 1
• Handing: Non Handed – Completely Reversible
• Function: Entry / Classroom
• Cylinder: Mortise Cylinder (included)
• Keyway: Schlage C Keyway
• ADA Compliance: Meets ADA requirements – A117.1 Accessibility Code
• Door Thickness: 1-3/4 inches
• Compatible Devices: M8800 Series
• Trim Type: Lever
• For Use With: M9900 Series Exit Devices
• Material: Forged Steel
• Finish/Coating: Satin Chrome
• UNSPSC Code: 31162800
