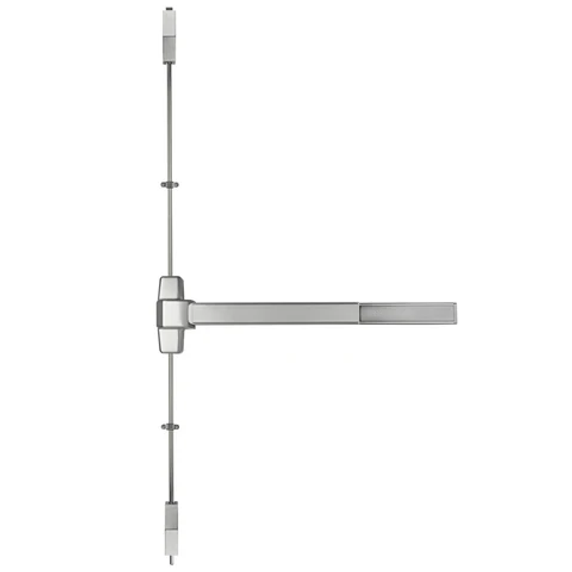

Marks Hardware M9900F-32D-48 Exit Device Rim Mount Fire Rated 48 inches

Product Description

The Marks Hardware M9900F-32D-48 exit device is designed for rim mounting and is fire-rated for reliable operation in high-demand environments. This exit device supports doors with widths ranging from forty-two to forty-eight inches and a standard height of ninety-six inches. It is a Grade 1 exit device, making it suitable for heavy-duty usage. The device can be installed on doors that are one and three-quarters inches thick and features a non-handed design, allowing for flexible installation options.

• Rim mount exit device
• Fire-rated for enhanced safety
• Compatible with door widths from 42 to 48 inches

Product Highlights

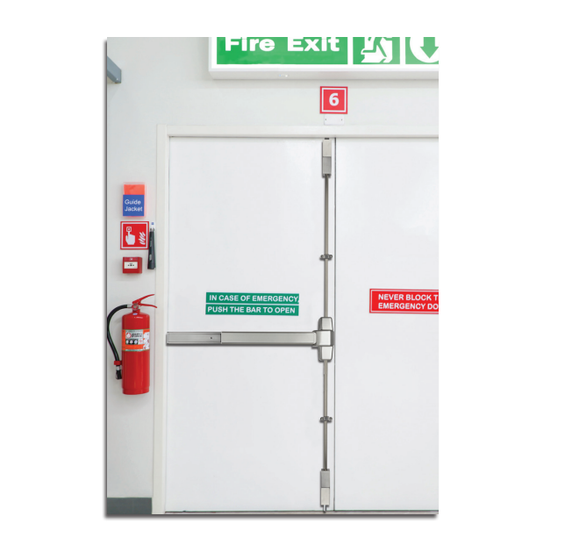

This exit device provides a dependable exit solution for high-impact applications in various commercial and industrial settings. Its robust materials and fire-rated certification ensure safety and durability.

Product Information

Standard Information

• Brand: Marks USA
• Item Model Number: M9900F/32D-48

Technical Specifications

• Series: M9900 Series
• Trim Function: No Trim - Exit Only
• Finish: US32D - Satin Stainless Steel
• Door Thickness: 1-3/4 inches
• Chassis: Steel, plated
• Mechanism Housing: Extruded aluminum
• Push Bar Base: Extruded aluminum
• Touch Plate: Stainless Steel
• End Cap: Stainless Steel
• Top Latch: Stainless Steel 37/64 inches
• Bottom Latch: Stainless Steel 37/64 inches
• Vertical Rods: Aluminum tube
• Hand: Non-handed
• Mounting: Machine screws standard
• UL Listed: ANSI/BHMA Grade 1 Panic Exit Hardware
• End Cover: Stainless steel beveled Panic Protector design
• Strike: Roller strike
• Rail Assembly: Heavy Gauge Stainless Steel
• Dead Latch Bolt: Stainless Steel 3/4 inch throw
• Dogging Feature: Allen Key
• Certifications: UL listed for Panic Hardware and Fire Rated Model
• Manufacturer Warranty: Marks Lifetime Mechanical Warranty
