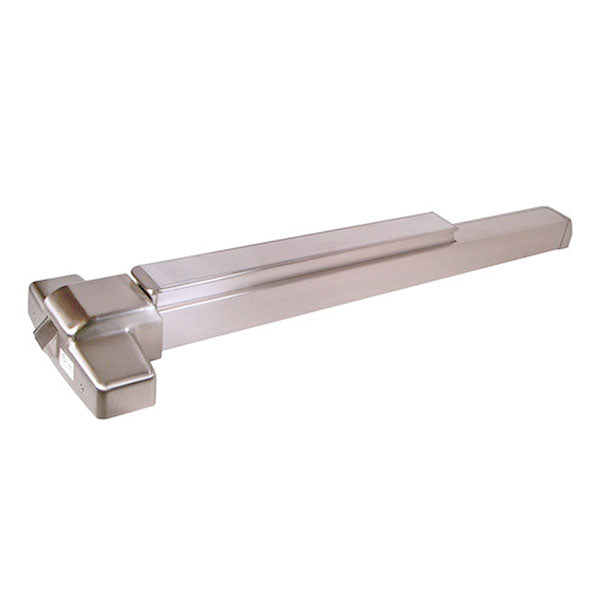

Marks Hardware M9900ER/32D-48 Rim Panic Exit Device Electric Latch Retraction Simultaneous Dogging 48 inches

Product Description

The Marks Hardware M9900ER/32D-48 is a rim panic exit device designed for demanding environments. This device features electric latch retraction and simultaneous dogging. The heavy-duty cast chassis ensures it can withstand high-impact applications. The smooth touchbar assembly reduces catch hazards, providing safety and reliability for users.

• Electric latch retraction with simultaneous dogging.
• Heavy-duty cast chassis for enhanced durability.
• Mitered steel flush-mounted Panic Protector End Cap for added protection.

Product Highlights

This model is ideal for commercial settings requiring a robust panic hardware solution.

Product Information

Standard Information

• Function: Electric latch retraction with simultaneous dogging
• Operation: Momentary or maintained latch bolt with push pad retraction

Technical Specifications

• Voltage: 24VDC @ 450 mA activation, 180 mA continuous
• End Cover: Stainless steel beveled inchPanic Protectorinch design
• Strike: Roller strike
• Rail Assembly: Heavy-Gauge Stainless Steel
• Dead latch Bolt: Stainless Steel 3/4 inches throw
• Door Width: Suitable for doors up to 48 inches
• Dogging feature: Allen Key
• Finish: US32D - Satin Stainless
• Certifications: UL listed for Panic Hardware, ANSI 156.3 (2001), Grade 1
