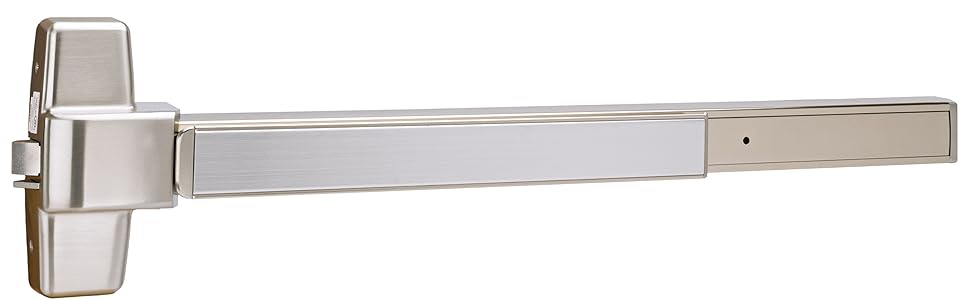

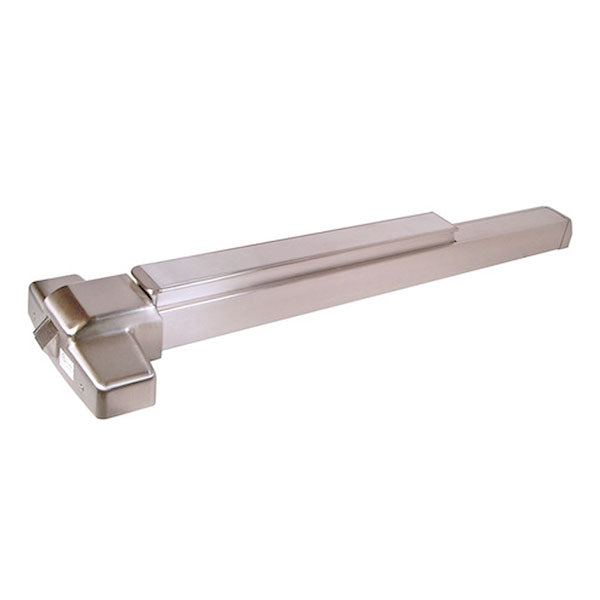

Marks Hardware M9900ER/32D-36 Rim Exit Device with Electric Latch Retraction 24VDC 36 inches

Product Description

The Marks Hardware M9900ER/32D-36 is a rim exit device designed for panic hardware applications. This device operates at 24VDC and features electric latch retraction. It is suitable for various door types, including single and double doors. The installation is straightforward, making it a durable choice for commercial settings.

• Electric latch retraction with simultaneous dogging
• Compatible with single and double doors
• Designed for easy installation

Product Highlights

The Marks Hardware M9900ER/32D-36 ensures reliable functionality for high-traffic areas.

Product Information

Standard Information

• Brand: Marks USA
• Finish: US32D (630) Satin Stainless Steel

Technical Specifications

• Length: 35 inches
• Voltage: 24 VDC
• ANSI/BHMA Standard: ANSI 156.3 (2001), Grade 1
• Usage: Heavy Duty
• Latchbolt: Stainless Steel 3/4 inch throw with 5/8 inch Stainless Steel Dead Latch
• Strike: Roller Strike
• Stile Type: Wide (Standard)
• Door Thickness: 1-3/4 inches
• Function: Electric latch retraction with simultaneous dogging
• Door Width: Doors up to 48 inches
• Dogging Configuration: Allen Key
• Current: 450 mA (Activation), 180 mA (Continuous)
• Product Type: Exit Devices - Rim
• Application: Simultaneous Dogging
• Certifications: UL listed for Panic Hardware
