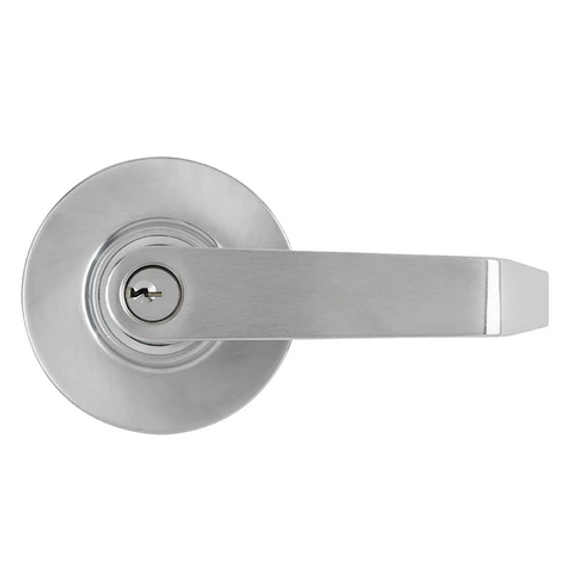

MARKS HARDWARE M195F/26D Lever/Rose Storeroom Exit Device Trim

Product Description

The MARKS HARDWARE M195F/26D is a Grade 1 exit bar trim designed for storeroom settings. It features an American lever with rose and is compatible with the M9900 Series Exit Device. This trim is built with a satin chrome finish and is non-handed, allowing flexible installation.

• Grade 1 M9900 Exit Bar Trim
• Non-handed installation
• Lifetime mechanical warranty

Product Highlights

This exit device trim is suitable for commercial use, providing security and durability in storeroom environments.

Product Information

Standard Information

• Trim Function: Storeroom
• Finish: Satin Chrome

Technical Specifications

• Levers: Solid cast Zamac, with half-inch return
• Roses: Thru-bolted, three and seven sixteenths inches spring loaded
• Door Thickness: One and five eighths inches – one and seven eighths inches
• Chassis: Steel
• Cylinder: MARKS “C” keyway, six pin with two keys
• Material: Aluminum, Stainless Steel
• Style: Modern Lever
• Function: Nightlatch/Storeroom key retracts latch
• Certifications: ANSI/BHMA Grade 1, UL Listed 3-hour fire rating, ADA compliant
• Manufacturer Warranty: Marks lifetime mechanical warranty
• Height: Four and thirteen hundredths inches
• Length: Seven and twenty-eight hundredths inches
• Width: Five and thirty-one hundredths inches
