Marks Hardware 295L/26D Privacy Lever Lockset, Curved Lever, 2-3/4 inches Backset, ANSI Strike, Grade 1

Product Description

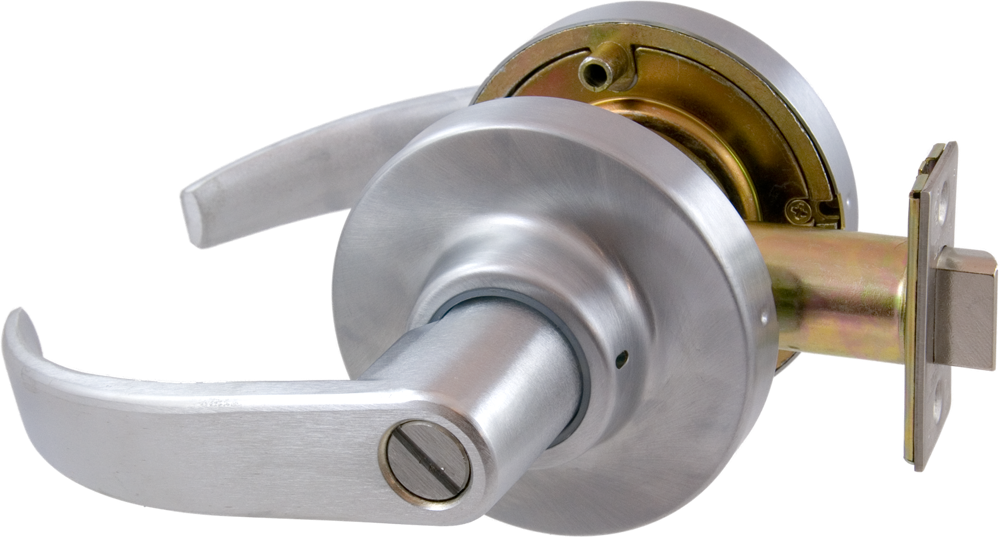

The MARKS HARDWARE 295L/26D is a Grade 1 privacy cylindrical lockset featuring a curved lever and a 2-3/4" backset. This non-keyed lockset has a crescent lever and a 3-7/16" diameter rose with a satin chrome finish and field reversible handing. UL Listed for a 3-hour fire rating and meets ADA requirements. The Survivor Series locksets are backed by Marks lifetime mechanical warranty.

• Grade 1
• Privacy Function
• Satin Chrome Finish
• Field Reversible Handing
• Curved Return Lever

Product Highlights

Durable cylindrical lever lockset with a curved lever, ideal for privacy applications. Features a 2-3/4" backset, ANSI strike, and Grade 1 rating.

Product Information

Standard Information

• Brand: MARKS HARDWARE
• Manufacturer Part Number: 295L/26D
• Country of Origin: USA

Technical Specifications

• Color: Satin Chrome
• Color Code: 626/US26D
• Fire Rated: 3 Hours {A}
• Origin: USA
• BAA Qualified: Yes
• Grade: Grade 1
• Backset: 2-3/4"
• Handing: Field Reversible
• Function: Privacy
• Cylinder Included: No
• Cylinder Type: None
• Lever Style: Curved Return Lever
• Strike Size: 4-7/8" x 1-1/4"
• Latch Bolt Type: Springlatch
• Knob/Lever Design: 295
• Rose/Escutcheon Size: 2-9/16"
• Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
• Door Bore Size: 2-1/8"
• Lock Category: Cylindrical Lock
• Door Thickness Min: 1-5/8"
• Latch Bolt Face Type: Square Corner
• Latch Bolt Throw: 1/2"
• Rose/Escutcheon Style: Rose
• Door Thickness Max: 1-7/8"
• Knob/Lever Style: Lever
• Series: 295 Series
• Latch Throw: 9/16"
• Product Group: Mechanical Locks
• Product Subgroup: Bored Locksets
• Product Type: Cylindrical Locks
• Subcategory: Cylindrical Locks
• ANSI/BHMA: ANSI/BHMA, UL Listed
• Commercial/Residential: Commercial
• Lock Type: Cylindrical
• Function Description: Latch retracted by knobs/levers at all times
• Front Size: 1-1/8" x 2-1/4"
• ADA Compliant: Yes
• Product Attribute: Cylindrical Locks
• Strike Classification: ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
• Product Category: Mechanical Locks
• Levers: Solid cast zamac; w/ 1/2” return (except 395 & 495)
• Roses: Thru-bolted, 3-7/16” dia, spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8” ASA curved lip strike
• Door Thickness: 1-5/8” to 1-7/8”; For 1-3/8” door use K1904 spacer
• Product Function: Passage/Hall/Closet
