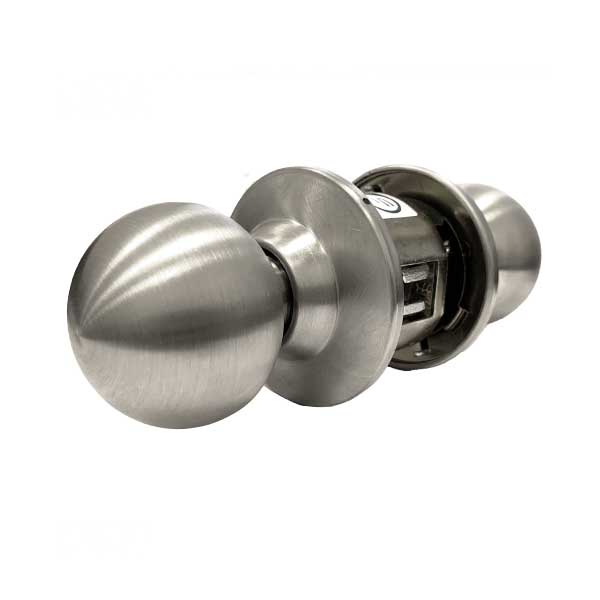

Marks Hardware 210N/32D-4 10 Line Commercial Knob Set 2 3/4 inches Backset REPLACEMENT MPN

Product Description

The Marks Hardware 210N/32D-4 10 Line lockset is a reliable choice for high-traffic areas. It features a cylindrical lock chassis designed for durability and efficiency. Constructed with cast retractors on bronze roller bearings, this knob set is capable of enduring millions of cycles, making it suitable for commercial applications. The backset measures two and three-quarters inches and complies with ANSI-A156.2 Grade 2 Plus standards.

• Durable design for high-use applications
• Cylindrical lock chassis with bronze roller bearings
• Meets ANSI-A156.2 Grade 2 Plus certification

Product Highlights

This lockset is ideal for offices and commercial buildings that require robust locking mechanisms.

Product Information

Standard Information

• Function: F75 Passage
• Backset: 2-3/4 inches

Technical Specifications

• Latch: #1138, Front 1 inches x 2-1/4 inches, Throw 1/2 inches, Stainless steel nose
• Knobs: 2-1/4 inches diameter (110) round, 2-3/16 inches diameter (210) ball
• Roses: Adjustable on both sides, Steel reinforced 2-3/4 inches diameter
• Strike: #1136, 2-3/4 inches T strike
• Door Thickness: 1-5/8 inches to 1-7/8 inches
• Cylinder: None
• Keying: None
• Certification: ANSI-A156.2 Grade 2 Plus
• Fire Rating: 3 Hour
