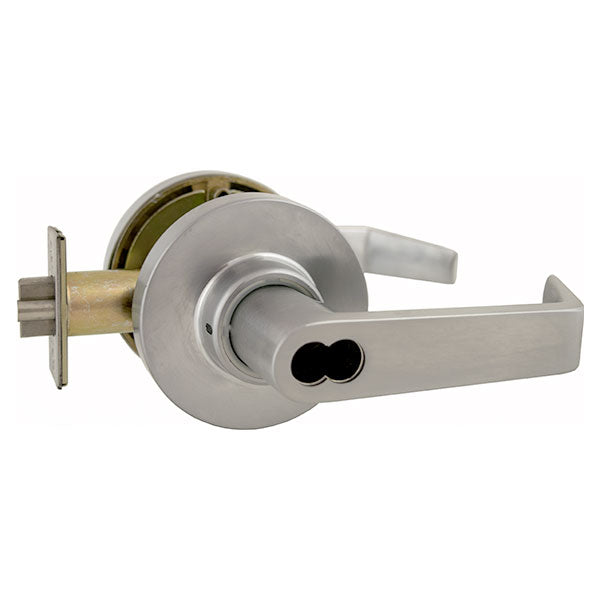

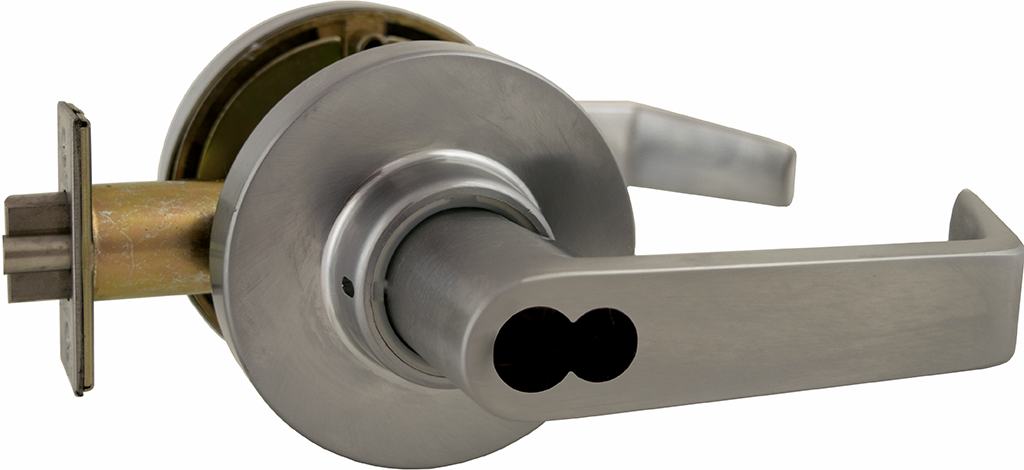

Marks Hardware 195RF/26D-F19 Door Lock Leverset, Cylindrical, Electrified, 2-3/4 inches Backset

Product Description

The Marks Hardware 195RF/26D-F19 door lock leverset features a robust design for security and ease of use. The unit is made to meet ANSI F86 standards, ensuring it fits various applications requiring a cylindrical, electrified American lever. The unique clutch mechanism helps to minimize wear, allowing the levers to disengage when locked, which prevents drooping and operational difficulties.

• Features a clutch mechanism to reduce wear
• Designed for easy engagement and disengagement
• ADA compliant for accessible use

Product Highlights

This leverset is suitable for high-traffic areas, ensuring reliable performance and security.

Product Information

Standard Information

• Brand: Marks USA
• Model: 195RF/26D-F19

Technical Specifications

• Backset: 2-3/4 inches
• Cylinder Type: Full size interchangeable core
• Design: Flat lever with return
• Finish: US26D Satin Chrome
• Function: Storeroom lock
• Keyway: Schlage C
• Lever Type: Lever
• Latch Face: Square corner 1-1/8 inches wide
• Door Thickness: 1-5/8 inches to 1-7/8 inches
• Grade: Meets ANSI A156.2, Grade 1 Standards
• Fire Rating: UL listed up to three hours
• Warranty: Limited lifetime warranty
