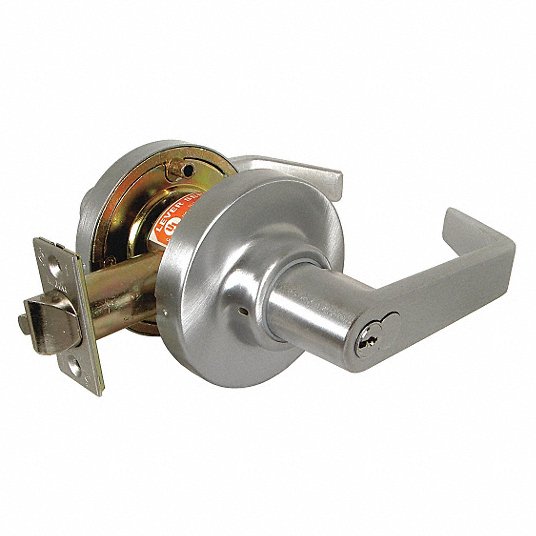

Marks Hardware 195RF/26D-F14 Grade 1 Cylindrical Storeroom Leverset for Yale 6-Pin IC

Product Description

The Marks Hardware 195RF/26D-F14 is a grade 1 cylindrical storeroom lockset designed for use with Yale 6-Pin LFIC cores. It features a sturdy American lever along with a diameter rose measuring three and seven sixteenths inches. This lockset is UL listed with a three-hour fire rating and complies with ADA standards. It offers a non-handed design that is also field reversible.

• Grade 1 construction for high durability
• Designed specifically for Yale 6-pin LFIC cores
• UL listed for three-hour fire protection

Product Highlights

Product Information

Standard Information

• Brand: Marks Hardware
• Manufacturer Part Number: 195RF/26D-F14

Technical Specifications

• Color: Satin Chrome
• Fire Rated: 3 Hours
• Origin: USA
• Grade: Grade 1
• Backset: 2-3/4 inches
• Function: Storeroom
• Cylinder Type: Yale 6 pin LFIC Core
• Lever Style: Angled Return Lever
• Strike Size: 4-7/8 inches x 1-1/4 inches
• Latch Bolt Type: Deadlatch
• Knob/Lever Design: 195
• Rose Size: 2-9/16 inches
• Door Bore Size: 2-1/8 inches
• Lock Category: Cylindrical Lock
• Door Thickness Min: 1-5/8 inches
• Latch Bolt Throw: 1/2 inches
• Door Thickness Max: 1-7/8 inches
• Finish: US26D Satin Chrome (626)
• Lockset Type: Mechanical
• Includes Core: Core Not Included
• Strike Type: ASA; Curved Lip
• ADA Compliant: Yes
• Performance Duty Rating: 1
• Door Thickness - Maximum: 1-3/4 inches
