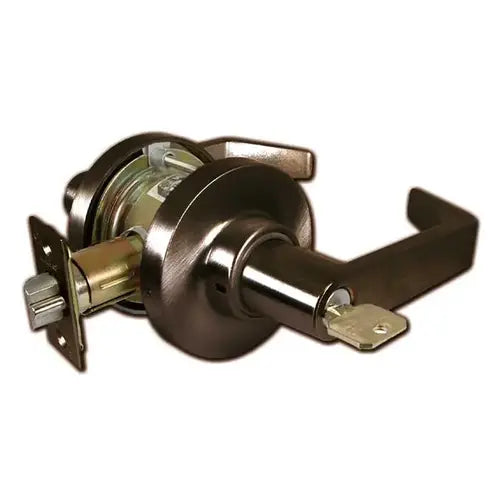

Marks Hardware 195RF/10B Storeroom Lever Lockset SFIC Prep

Product Description

The Marks Hardware 195RF/10B Storeroom Lever Lockset is a strong, durable lock designed with ANSI/BHMA Grade 1 standards. It features a SFIC (Small Format Interchangeable Core) prep for flexibility in locking options. This lockset is specifically designed for storeroom applications, allowing access only via a key or the inside lever. It is made for doors measuring between one and five-eighths inches to one and seven-eighths inches thick.

• Features a thru-bolted spring loaded rose.
• ANSI/BHMA Grade 1 certified for optimal security.
• Facilitates easy entry and exit on various door types.

Product Highlights

The Marks Hardware 195RF/10B is ideal for securing storeroom areas in commercial settings. Its robust design ensures long-lasting security and reliability.

Product Information

Standard Information

• Finish: Oil Rubbed Dark Bronze
• Grade: ANSI/BHMA Grade 1

Technical Specifications

• Backset: 2-3/4 inches
• Function: F-Storeroom
• Door Thickness: 1 5/8 inches - 1 7/8 inches
• Strike: ANSI, 1-1/4 inches x 4-7/8 inches, 1-1/4 inches Lip, Square Corner
• Bore Size: 2.125 inches
• Cylinder Type: SFIC Less Core - Small Format Prep
• Lever Style: 195 Lever
• Rose/Diameter: Round Rose, 3-7/16 inches
• Warranty: Lifetime mechanical
• Handle Type: Lever
• ADA Compliant: Yes
• Latch Number: 1834
• Manufacturer: Marks USA
• Included Components: Hardware
